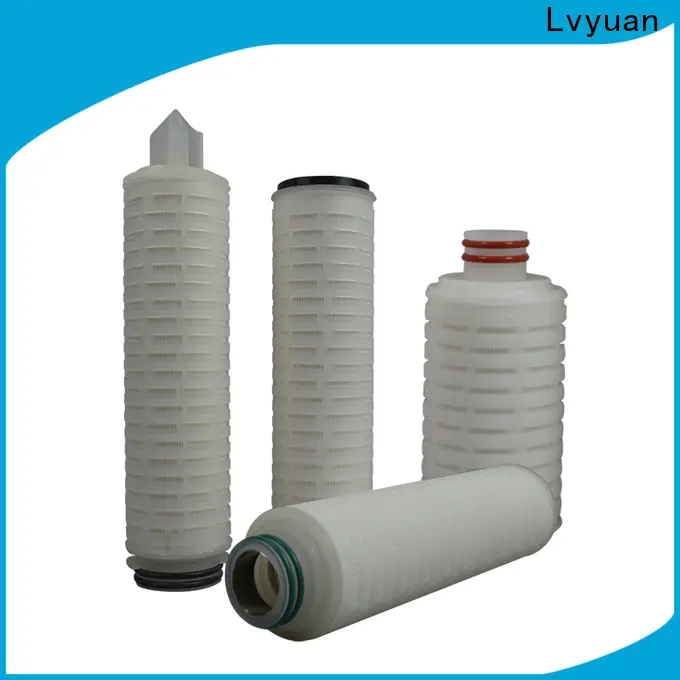

Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan water pleated filter with stainless steel for food and beverage
Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
Material
pp
Availability
OEM/ODM
Company Advantages
1. The performance of pleated filter is greatly improved with the use of pleated water filters material. It has a large effective filter area
2. The Lvyuan employees are all with a good understanding of the importance of a high-quality pleated filter . The inner support layer is closely connected to the filter material, making it of strong impact resistance
3. This product is guaranteed to be 100% safe. Its materials or components are all proved to be safe to use without no harmful chemical substances. The star-shaped ring seal makes the filter element easy to disassemble and maintain
4. It has a sturdy structure. Made of metal or plastic materials which feature high hardness and toughness, it is not vulnerable to break. The self-supporting fiber matrix enables a coreless design that is both economical and strong
Company Features
1. With a reputable brand name and relying on experience, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. excels at the developing and manufacturing of pleated type filter .
2. With years of commitment to the concept of quality, we have won a number of loyal customers and established stable cooperations with them. This is the evidence of our strong capability in improving product quality.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. pays high attention to quality and service for better development. Contact us!
1. The performance of pleated filter is greatly improved with the use of pleated water filters material. It has a large effective filter area
2. The Lvyuan employees are all with a good understanding of the importance of a high-quality pleated filter . The inner support layer is closely connected to the filter material, making it of strong impact resistance
3. This product is guaranteed to be 100% safe. Its materials or components are all proved to be safe to use without no harmful chemical substances. The star-shaped ring seal makes the filter element easy to disassemble and maintain
4. It has a sturdy structure. Made of metal or plastic materials which feature high hardness and toughness, it is not vulnerable to break. The self-supporting fiber matrix enables a coreless design that is both economical and strong
Hydrophobic 0.2 micron PTFE membrane pleated cartridge Air vent filter with 215 226 adaptor
Specification
Filter Media Option | PP | PES | PTFE | Nylon 6/66 | PVDF |
Length | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch |
Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.1, 0.2, 0.45, 0.65 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.2, 0.45 micron |
End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Inner Diameter | 28mm | 28mm | 28mm | 28mm | 28mm |
Outer Diameter | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) |
Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
Effective filtration area | 0.4-0.7m² | ≥5m² | ≥0.72m² | ≥0.6m² | ≥0.72m² |
Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
Max.back pressure | 0.28Mpa at 60ºC | 0.21Mpa at 25ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 140ºC at 0.28Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 80ºC at 0.173Mpa |
Sterilizing temperature | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins |
Application
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
Company Features
1. With a reputable brand name and relying on experience, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. excels at the developing and manufacturing of pleated type filter .
2. With years of commitment to the concept of quality, we have won a number of loyal customers and established stable cooperations with them. This is the evidence of our strong capability in improving product quality.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. pays high attention to quality and service for better development. Contact us!
