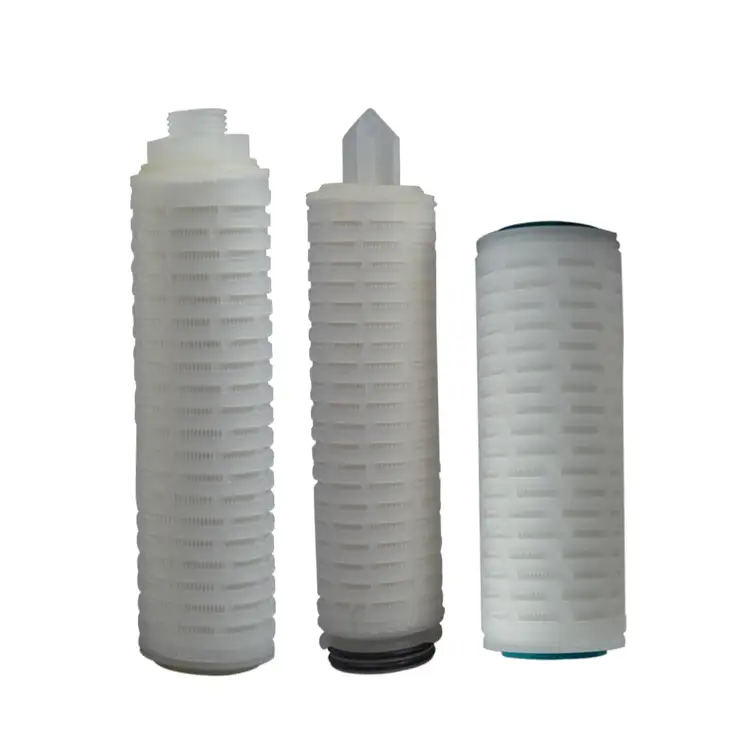

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 1

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 2

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 3

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 4

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 5

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 6

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: China

Brand Name:: Lvyuan/OEM

Model Number:: LY-PLF-01

Power (W):: 0

Voltage (V):: 0

After-sales Service Provided:: none

Warranty:: none

Type:: Reverse Osmosis

Certification:: GS

Use:: Household Pre-Filtration

Application:: Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:: Manual

Name:: gas filter element ptfe 20 micro

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory

Product Description

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 9

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 11

Application

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 13

RO WATER TREATMENT

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 15

BOTTLED MINERAL WATER

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 17

CHEMICAL TECHNOLOGY FILTRATION

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 19

BEER & BEVERAGE FILTRATION

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 21

PETROCHMICAL INDUSTRY

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 23

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 25

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 27

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 29

Container for shipment

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 31

Container for shipment

Certifications

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 33

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 35

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 37

Our Company

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 39

Multi layer gas filter element ptfe 20 micro For Food & Beverage Factory 41

Let's Make Custom Water Filter Cartridge For You Now.

The use of this product helps the producer in many ways which tend to increase his or her production and income. It will not impart taste, odor, or color to the filtered product. Tasks that are too heavy or too delicate for human muscles to do can be done easily by this product. It will not impart taste, odor, or color to the filtered product.
