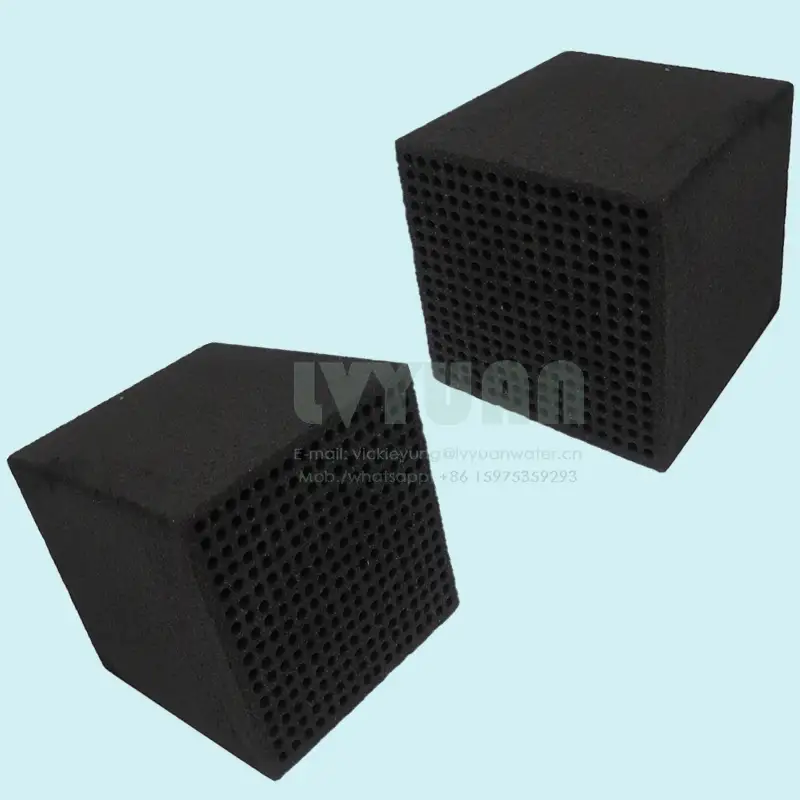

Multi Porous Square Cube Design Activated Block Carbon Honeycomb Sintered Carbon Filter Cartridge for 10 20 Microns Air/Liquid

Multi Porous Square Cube Design Activated Block Carbon Honeycomb Sintered Carbon Filter Cartridge for 10 20 Microns Air/Liquid

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms, Restaurant, Food & Beverage Shops
Place of Origin:
Guangdong, China
Brand Name:
OEM/LVYUAN
Material:
CARBON, Sintered activated coconut carbon
Weight:
Customized
Size:
Customized
Power:
0
Warranty:
Unavailable
Product Name:
Square Cube Design Carbon Honeycomb Sintered Carbon Filter Cartridge
After-sales Service Provided:
Online support, Online support
Certification:
SGS/ISO
Length:
10-1050mm
OD:
14-121mm
ID:
6-50mm
Micron rate:
0.5-20um
Iodine value:
up to 1000
Flow rate:
≤300L/h

Packaging & Delivery

Selling Units:
Single item
Single package size:
6.5X2.8X25 cm
Single gross weight:
0.200 kg
Package Type:
Multi Porous Square Cube Design Activated Block Carbon Honeycomb Sintered Carbon Filter Cartridge for 10 20 Microns Air/Liquid: 53x33x33cm, 64x33x33cm
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 5000 >5000
Est. Time(days) 3 5 10 To be negotiated
Product Description

Multi Porous Square Cube Design Activated Block Carbon Honeycomb Sintered Carbon Filter Cartridge for 10 20 Microns Air/Liquid:

Guangzhou Lvyuan Water Purification is the professional manufacturer for sintered activated carbon filter cartridge, the carbon cartridge filter is shaped by extruding activated carbon fines and food grade additives continuously, guaranteeing excellent absorbency of grained activated carbon, no release of carbon fines of bulk activated carbon, and remove chlorine, organic matter, decolorization and odor removal, to increase an efficient quality and integrated filtration.


Product name
Multi Porous Square Cube Design Activated Block Carbon Honeycomb Sintered Carbon Filter Cartridge for 10 20 Microns Air/Liquid
Size
Regular size, Jumbo size, Customized size.
OD(mm)
14,16,19,25,28,30,35,38,40,45,46,50,53,55,60,63,64,67, 70,76,90,96.5,103,105,121
ID(mm)
6,8,10,12,14,16,18,20,22,25,28,30,32,35,38,40,45,50
Micron rate
0.5 ~20um
Material
Nut shell carbon, Coconut carbon
Iodine value
Up to 1000
Operation temperature
4.4 - 60 ℃
Flow rate
≤300L/h (250mm)
Inlet pressure
0.4Mpa
Max. pressure
7 kgf/cm²
Application
1. Food industry: Food, dinking water, beverage, wine, etc.
2. Electrical industry: Pure water, gas, electroplate liquid, Printed circuit board.
3. Chemical industry: Petrochemical technology, solvent, coating material, slurry, detergent, etc.
4. Medical industry: Hospital water, water for Pharmaceutical use., etc.
Detailed Images
Feature


High quality material caron raw materai:


Coconut activated carbon raw materials, high temperature sintering. Fits to all standard filter housings or sport bottles.
High content of the activated carbon in the same volume, long service life.



OEM customized end cap:


OEM customized length & diameter accepted.
Different adaptors are available.
High iodine value activated carbon materials.



High dirt holding capacity, low drop out, high filtration efficiency.

Clear surface, compact of the carbon structure, small pore size. The options microns: 1, 5, 10.
High density carbon molecule,high filtration effeciency, strong adsorption.

Packing & Delivery
Certifications
Our Company
Contact Us




Pls feel free to contact me at any time:  : )

Ms. Vickie Yung
Mob./Whatsapp: +86 15975359293
Skype: vickie9293
This product is much more efficient than humans. Its high efficiency directly contributes to enhanced production efficiency. This will reduce expenses. The star-shaped ring seal makes the filter element easy to disassemble and maintain. The product can cut production costs. It is capable of meeting the most demanding production needs by using little efforts and money. The star-shaped ring seal makes the filter element easy to disassemble and maintain.
