Overview

Quick Details

Applicable Industries:: Food & Beverage Factory, Food & Beverage Shops

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel

Place of Origin:: China

Brand Name:: Lvyuan/Oem

Warranty:: 1 Year

After-sales Service Provided:: Online support

Name:: 02 micron cartridge filter

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

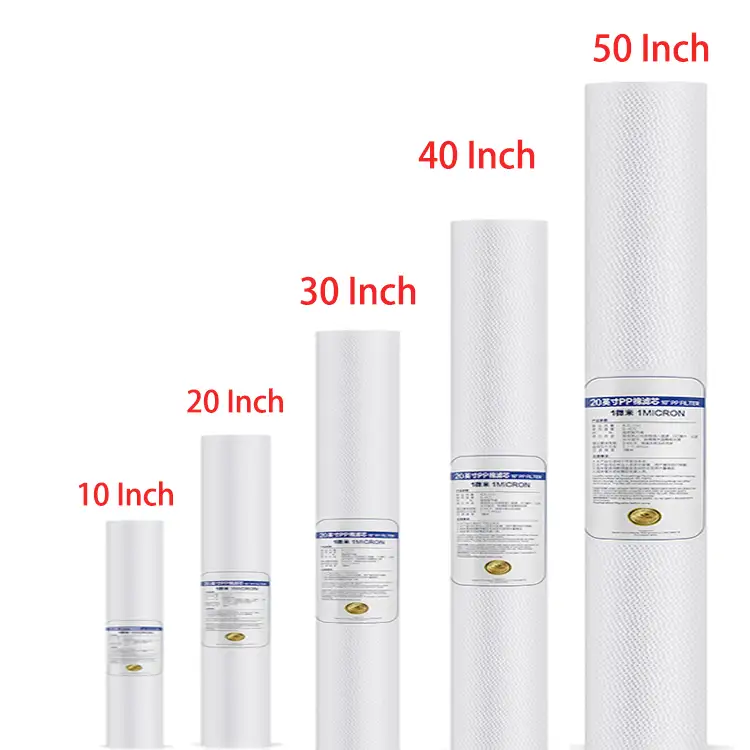

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter high flow filter cartridge

Product Description

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 7

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 9

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 11

Detailed Images

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 13

Groove surface PP sediment filter cartridges.

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 15

Flat surface PP sediment filter cartridge

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 17

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 19

DOE opened pleated filter

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 21

OEM customized size filter

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 23

Different end caps pleated filter

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 25

PP melt blown filter cartridge with 1 2 3 layers for option

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 27

PP shell Polypropylene melt blown filter cartridge

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 29

Customize PP core or stainless steel shell/core pp filter cartridge

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 31

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 33

Application

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 35

RO WATER TREATMENT

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 37

BOTTLED MINERAL WATER

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 39

CHEMICAL TECHNOLOGY FILTRATION

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 41

BEER & BEVERAGE FILTRATION

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 43

PETROCHMICAL INDUSTRY

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 45

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 47

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 49

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 51

Container for shipment

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 53

Container for shipment

Certifications

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 55

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 57

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 59

Our Company

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 61

OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter pp spun high flow filter cartridge 63

Let's Make Custom Water Filter Cartridge For You Now.

According to the customer's order requirements, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can accurately and timely complete the production tasks with quality and quantity. Its unique density gradient construction maximizes efficiency and minimizes pressure drop. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will strictly inspect product package to ensure water filter cartridges will be totally safe during transportation. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
