Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
|
||
|
Filtration media
|
PP/PTFE/PES/PVDF/Nylon
|
||
|
Support material
|
Polypropylene
|
||
|
Core & Structural components
|
Polypropylene
|
||
|
Inner core
|
PP/Stainless steel
|
||
|
Packing method
|
Polybag/Vacuum
|
||
|
Filtration precision
|
0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
|
||
|
Length
|

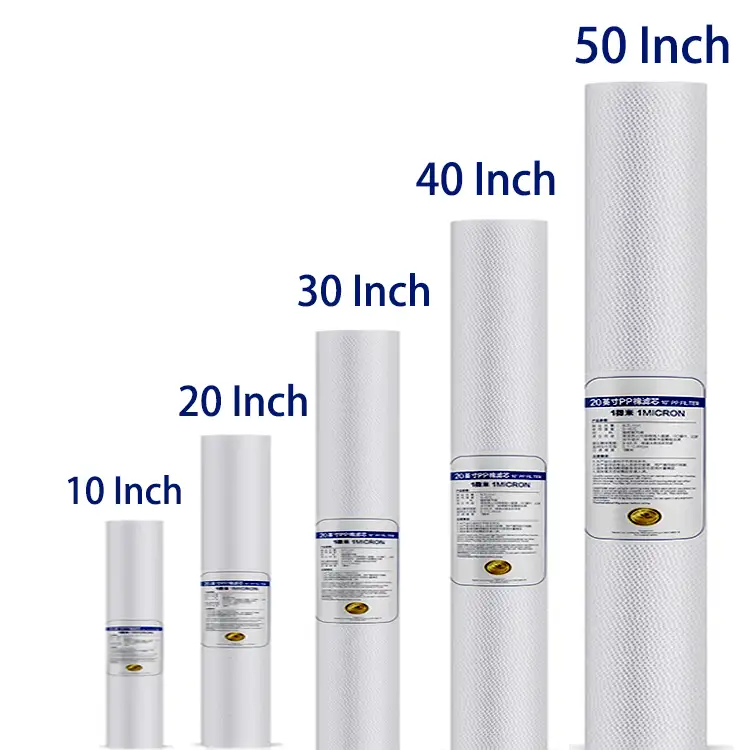

2.5", 5". 10", 20", 30", 40", 50", 60", OEM
|
||
|
Adaptor
|
215/222/226/Fin/Flat/Thread/OEM
|
||
|
Sealing method
|
Hot melting welding
|
||
|
Sealing gasket & O-ring material
|
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
|
||
|
Effect filtration area
|
≥0.6m²
|
||
|
Filter cartridge diameter
|
69mm
|
||
|
Max. working temperature
|
PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
|
||
|
Max. positive differential pressure
|
0.42Mpa (25℃)
|
||
|
Max. back pressure differential pressure
|
0.28Mpa (25℃)
|
||
|
Sterilization conditions
|
121℃ 30min
|
||
|
Applications
|
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
|
||
PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
DOE opened pleated filter
OEM customized size filter
Different end caps pleated filter
