Factory Direct Stainless Steel Cartridge Filter Housing Price List
Send your inquiry
Product details of the stainless steel cartridge filter housing
Quick Detail
stainless steel cartridge filter housing is more cost-effective than other products in the same category. It is of reasonable structure, stable performance, and reliable quality. It has advantages such as low failure rate, low heat generation, low power consumption, high safety, and environmental protection. By reforming the technology of manufacturing, Lvyuan Filter stainless steel cartridge filter housing has finer workmanship. The performance and quality of the product meet with the industry specification. stainless steel cartridge filter housing is commonly used in industries including electronics, timepieces, toys, building materials, metal materials, automotive, daily-used decoration, and others. The main business of Lvyuan Filter is to produce stainless steel cartridge filter housing with high quality.
Product Information
The stainless steel cartridge filter housing of Lvyuan Water Purification Equipment has the following advantages, compared with similar products in the market.
Product Description
Stainless steel 304 trolley type single double stage water filter cartridge treatment with pleated stainless steel oil filter:
Completely oil filter system machine 1/2/3/4/5/6/7 stage stainless steel cartridge water filter housing with filter cartridge. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a metal netting, to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified oil into the filtration device.The filter device is a small manual compression plate and frame filter press, using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities trapped in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter paper.The filtration pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter paper surface, the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is close to saturation state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.This kind of oil filter machine can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and lubricating oil refining.
Product name | Stainless steel 304 trolley type single double stage water filter cartridge treatment with pleated stainless steel oil filter | ||||
Raw material | SUS304, SUS316L | ||||
Filter stage | 1/2/3/4/5/6/7/8 stage, or customized. | ||||
Filter elements type | Filter cartridges, Filter bags. | ||||
Inlet & Outlet | Flange/Thread/Customized | ||||
Filtration microns | 1 microns to 100 microns available. | ||||
Liquid flow type | Side Entry; Top Entry. | ||||
Seal material | EPDM/Silicone/Viton/PTFE | ||||
Surface treatment | Polished/Sandblast | ||||
Working temperature | 0.5℉ to 380℉ | ||||
Min./Max. working pressure | 100psi to 235psi | ||||
Housing design pressure | 0.1-2.0Mpa | ||||
Pump | Air/liquid pump, booster pump, wheel pump, air pump, pneumatic pump, etc. | ||||
Production time | 7 ~ 15 working days | ||||
Movable cart type filter machine spec. | The configurations only for reference, it is depended on different customers' requirement. 1.SS filter housing2.Discharge valve3.Combination valve4.Pressure gauge5.Pump6.Motor7.Rough filter8.Magnetic filter9.In-line filter10.Flow gauge11.Electrical apparatus & elements | ||||
Bag Item | Flow rate | Filtration area (m²) | Length (mm) | Bag diameter (mm) |
#1 | 20 | 0.25 | 410 | 180 |
#2 | 40 | 0.5 | 810 | 180 |
#3 | 6 | 1 | 210 | 102 |
#4 | 12 | 0.15 | 356 | 102 |
#5 | 25 | 0.3 | 870 | 175 |
FEATURE | ||
1 | Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation. | |
2 | Working pressure 8kg/0.8Mpa is supported. | |
3 | Use the tap water pressure to provide power, no power consumption. | |
4 | This is suitable for using in the water master switch, for the pre filtration system and RO system protection. | |
5 | Resistance to strong acid and alkali. | |
6 | Low cost, it fits different kind of filter elements. | |

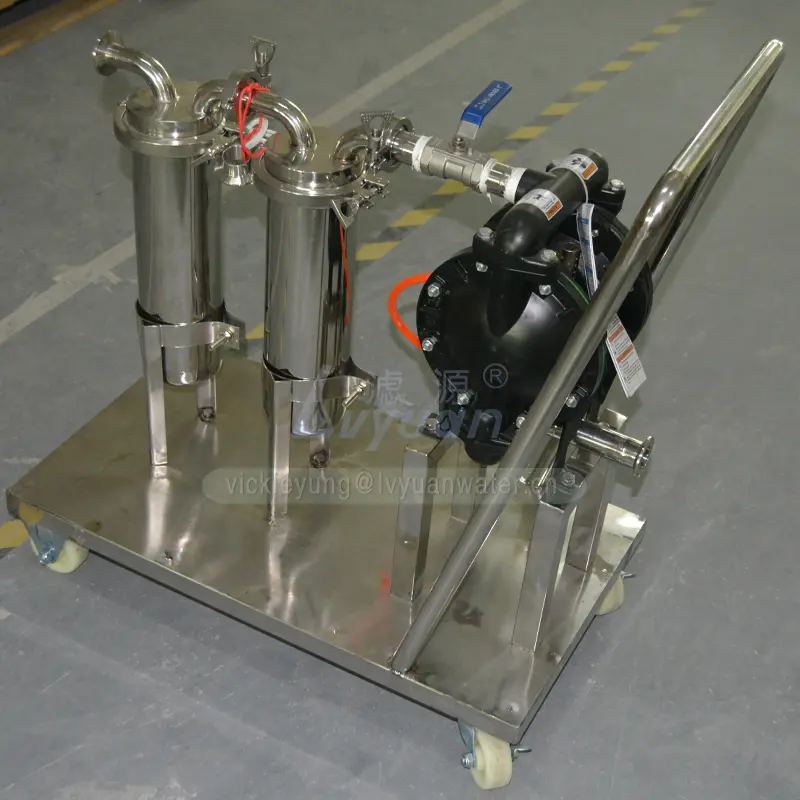

2 stage bag filter system.
High flow double stage bag filter housing system with 7x18 inch bag liquid filter.
Single stage stainless steel filter.
High temperature water/liquid/gas bag filter housing with high quality stainless steel 304/316L.
Customized bag filter machine.
Top flange inlet design for high pressure operation. The machine inclusive of air or high pressure booster pump for options.

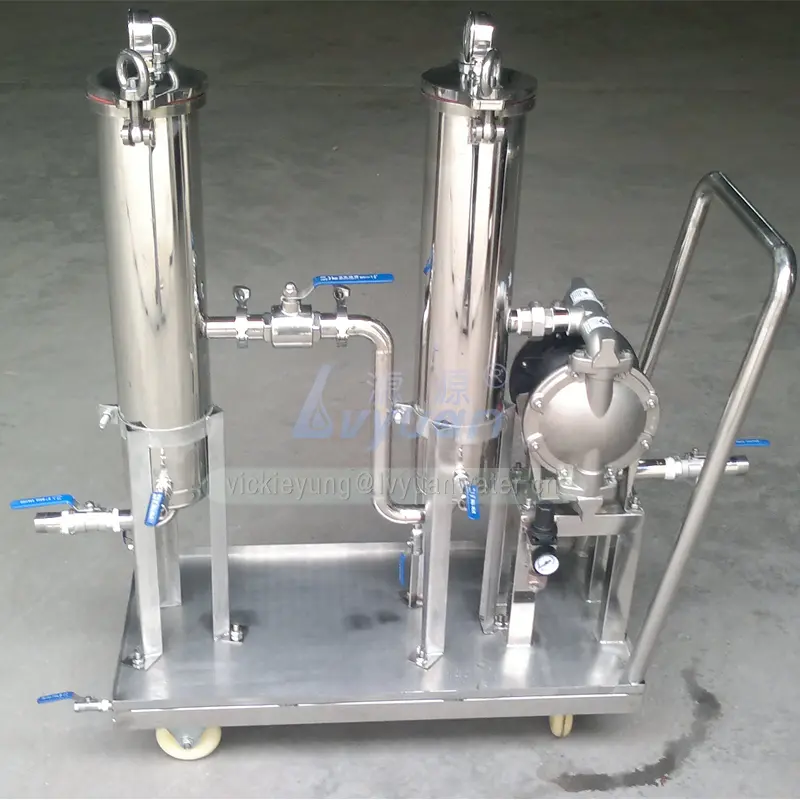

Double stage cartridge filter housing.
Covinient and simple operating,
the entire parts installed on the four-wheel go- cart.
Stainless steel dual filtration system.
Movable filter is composed of prefilter,
oil pump and filtration unit. High pressure
resistant and high precision.
Customized filter stage available.

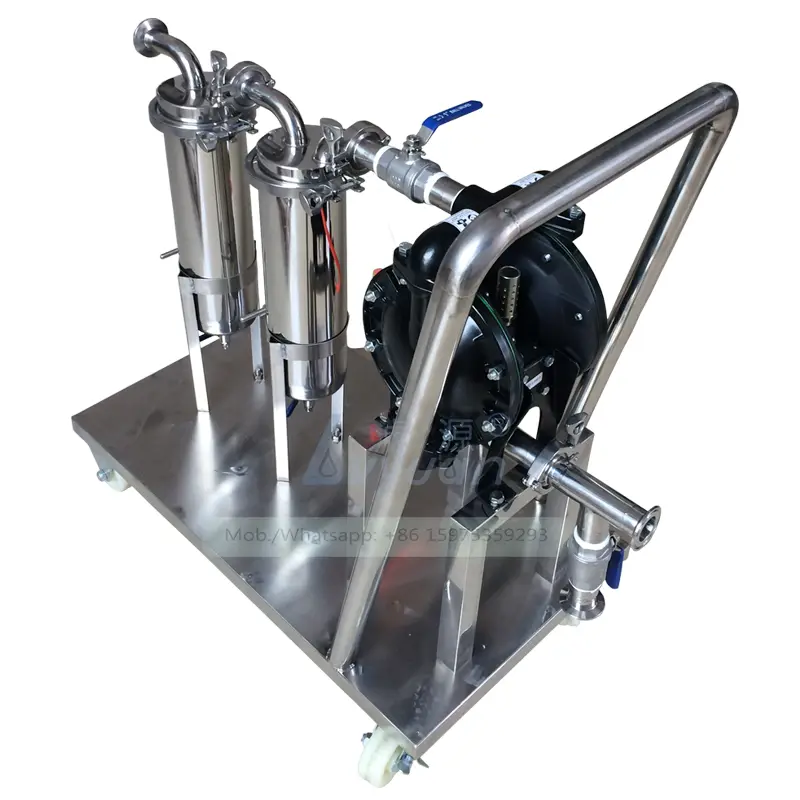

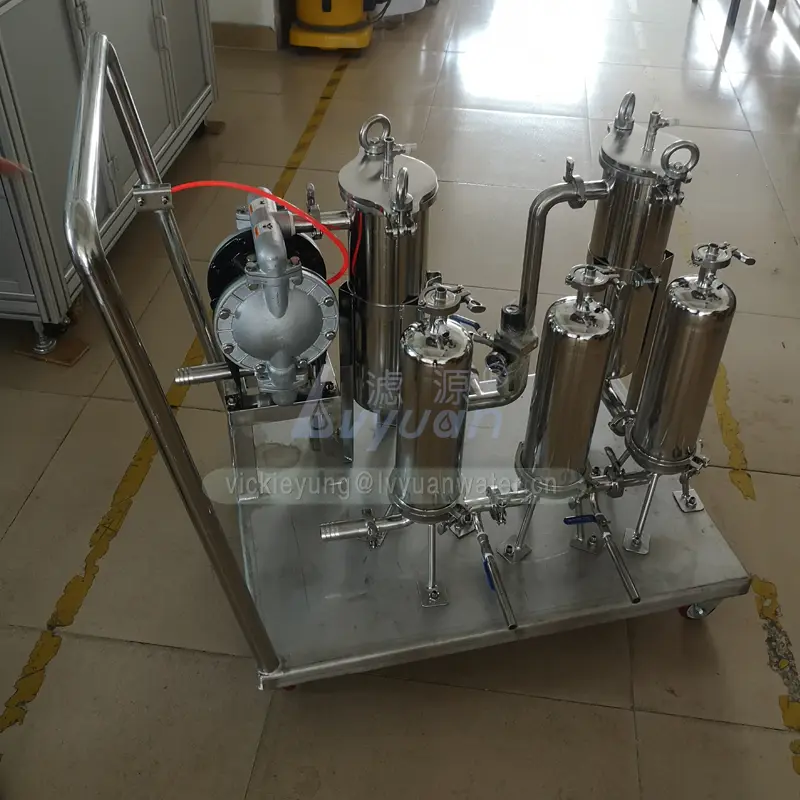

Movable type 1/2/3/4/5 stage cart model stainless steel oil filter machinery.
Light and portable, low noise, safe and energy-saving.
Related Products
Model No. | Code | Bag size | In & Out |
LY-BFH-01-B1 | #1 | 180x450mm | 1" & 2" |
LY-BFH-01-B2 | #2 | 180x810mm | 1" & 2" |
LY-BFH-01-B3 | #3 | 105x210mm | 1" & 2" |
LY-BFH-01-B4 | #4 | 105x345mm | 1" & 2" |
Model No. | Code | Bag size | In & Out |
LY-BFH02-B1 | #1 | 180x450mm | 2" flange |
LY-BFH02-B2 | #2 | 180x810mm | 2" flange |
LY-BFH02-B3 | #3 | 105x210mm | 2" flange |
LY-BFH02-B4 | #4 | 105x345mm | 2" flange |
Model No. | Code | Bag size | In & Out |
LY-BFH03-B1 | #1 | 180x450mm | 2" Flange |
LY-BFH03-B1 | #2 | 180x810mm | 2" Flange |
Application
1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration. 3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.
RO WATER TREATMENT
BOTTLED MINERAL WATER
BIOLOGY TECHNOLOGY
SEA WATER DESALINATION
CHEMICAL INDUSTRY
FOOD & BEVERAGE
Our Company
Certifications
Contact
The pictures & configurations for the filter system is only for reference, it will be designed by different customers' requirements. :-)
Pls kindly to send the inquiry below
or feel free to contact us by:
The product is able to get a big workload done with little energy consumption, which is not only fast but also labor-saving. Customized end cap configurations are available to fit specific requirements
The product can easily finish the heavy-duty work which man can never do. This will definitely increase productivity and relieve workers' stress. Customized end cap configurations are available to fit specific requirements
Company Information
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a supplier in guang zhou. Our company is mainly providing consumers with water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture. After years of development, Lvyuan Water Purification Equipment has rich industry experience in the machinery manufacturing. We successfully created the brand called Lvyuan Filter. Lvyuan Water Purification Equipment has a strong service team to solve problems for customers in a timely manner. Our company adheres to the customer-oriented service concept. We always provide customers with efficient, professional and high-quality custom services from the perspective of customers.
Lvyuan Water Purification Equipment gains the recognition based on the high-quality machinery and sincere service. It is an honor for us to receive your contact and cooperate with all of you!
