High End Stainless Steel Multi Cartridge Filter Housing for Biopharmaceutical

Introduction

High effectively 1/2/3/4/5/6 stage filter hydraulic oil purification unit/cooking oil purification machine. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a metal netting,

to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified

oil into the filtration device.The filter device is a small manual compression plate and frame filter press,

using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the

plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities trapped

in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter pape.The filtration

pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter paper surface,

the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is close to saturation

state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a

high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.This kind of oil filter machine

can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and

lubricating oil refining.

Configurations

1.SS filter housing

2.Discharge valve

3.Combination valve

4.Pressure gauge

5.Pump

6.Motor

7.Rough filter

8.Magnetic filter

9.In-line filter

10.Flow gauge

11.Electrical apparatus & elements

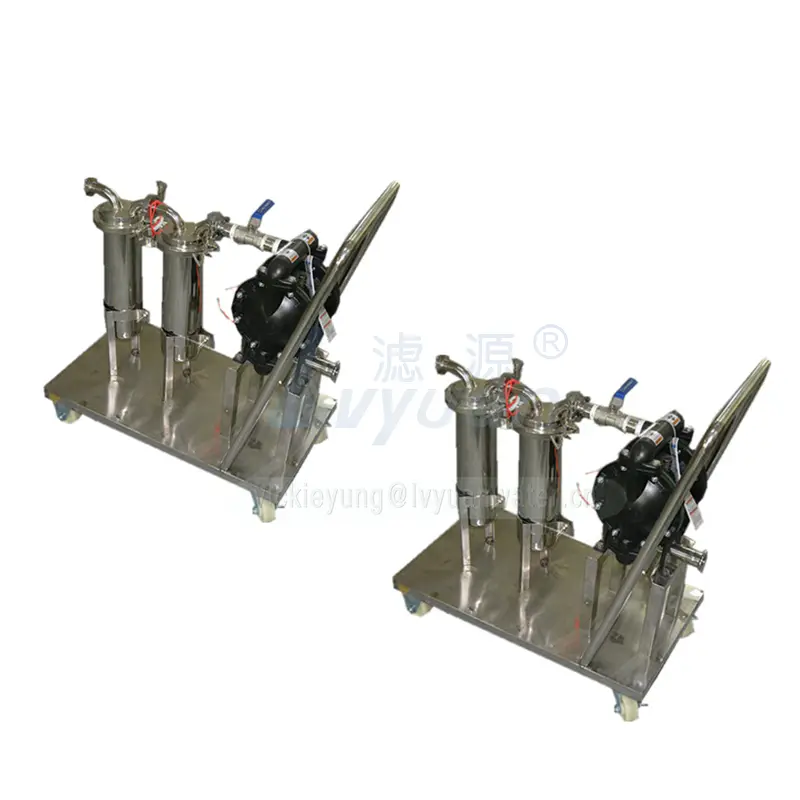

Products Shows

Features

1. Covinient and simple operating,the entire parts installed on the four-wheel go- cart.

2. High pressure resistant and high precision.

3. Light and portable, low noise, safe and reliable, environment-friendly and energy-saving.

4. It can trasfered oil from a long distance and high lift, no need of filter paper, cheap and environmental.

5. Precise one to three-stage filter system to remove solid mechanical partidulates and other impurities.

6. The machine is installed with well-sealed anti-explosion electric control cabinet (Optional).

7. Filter housing body device main parts adopt stainless steel material, to ensure this machine can run safely with high performance and can continuously run about hundreds hour, the pedestal sandblasting processing, it is long service life, corrosion resistance, no pollution oil.

8. Unique design of overflow valve and combination valve, simplifies the piping components and technical process.

9. To filter the oil which is filled up in hydraulic lubrication system, to establish equipment periodic maintence.

10. It includes a special gear wheel drove by electric machinery, it has features of low noise, good self-priming and stable performance.

11. Excess flow protection device has been fitted in high pressure pipelines to protect hydraulic system.

12. Using thermal overload relay to provide overload protection for electric machinery.

13. The coarse suction filter can not only protect oil pump but also prolong the service life of main filter.

14. It is consist of two grades to sift the procedure of examming precisely after the pump, make the oil reach very high cleanness degree.

15. According to different requirements, the filter precision can be selected to reach different rate.

16. With quick-opening structure on the filter body, the filter elements can be replaced conviniently without any other tools, the pressure gauge on the panel indicates system state and pollution degree of filter element continuously.

Applications

Auto oil filter, Marine oil filter, Hydraulic equipment (Large drainage pumping station, Shearing machine, Folding machine, Pressure machine, etc.), Constructions projects hydraulic oil filter, eletronic power equipment oil filter, Lifting transportation machinery oil filter, Machinery tool lubrication oil filter, Plastic production equipment oil filter, Metallurgy oil filter, Chemical equipment oil filter, Agricultural machinery oil filter, All kinds of hydraulic oil, Cutting oil, Machinery equipment oil filter, etc.
