Hot Salepp Filter for Beverage Industry

Product details of the pp filter

Quick Overview

This practical and affordable pp filter is produced and supplied directly by the factory. It has compact structure, stable performance, and easy operation. From the development phase, we work to enhance the material quality and product structure of Lvyuan Filter pp filter. The product has the quality that meets and even exceeds the industry standards as well as specifications. pp filter is available in a wide range of applications, such as the production, processing, and packaging of various types of food. Always holding the best service attitude is an important point for the improvement of Lvyuan Filter.

Product Introduction

Our pp filter is more competitive than similar products, as shown in the following aspects.

Overview

Quick Details

After-sales Service Provided:

Overseas Call Centers

Warranty:

1 Year

Application:

Commercial, Household

Power Source:

Battery, Electric

Type:

Reverse Osmosis

Use:

Household Pre-Filtration

Certification:

GS

Power (W):

0

Voltage (V):

0

Place of Origin:

China

Brand Name:

OEM

Name:

heavy metal removal water filter

Filter membrane material:

PP/PVDF/PTFE/PES/Nylon

Length:

5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:

Fin/222/226/215/DOE/Thread

Micron:

0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:

Hot melting welding

Diameter:

70mm/OEM

Inner Core:

PP/SS/OEM

MOQ:

Currently no limited

Packaging & Delivery

Selling Units:

Single item

Single package size:

68X40X40 cm

Single gross weight:

23.000 kg

Package Type:

Guangzhou manufacturer 0.2 micron PP/PTFE membrane 10 inch pleated cartrdige filter element: 10" 50PCS/CTN, 20" 25PCS/CTN, 30" 25PCS/CTN, 40" 25PCS/CTN.

Lead Time :

Quantity(Pieces)	1 - 100	101 - 500	501 - 1000	>1000
Est. Time(days)	2	5	7	To be negotiated

Online Customization

Factory price heavy metal removal water filter

Product Description

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

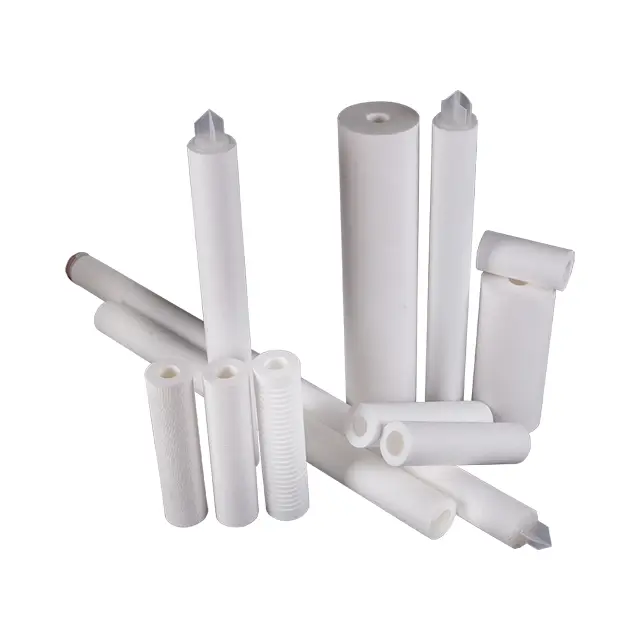

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility. Melt Blown sediment filter cartridge has strong pollutants holding capacity.

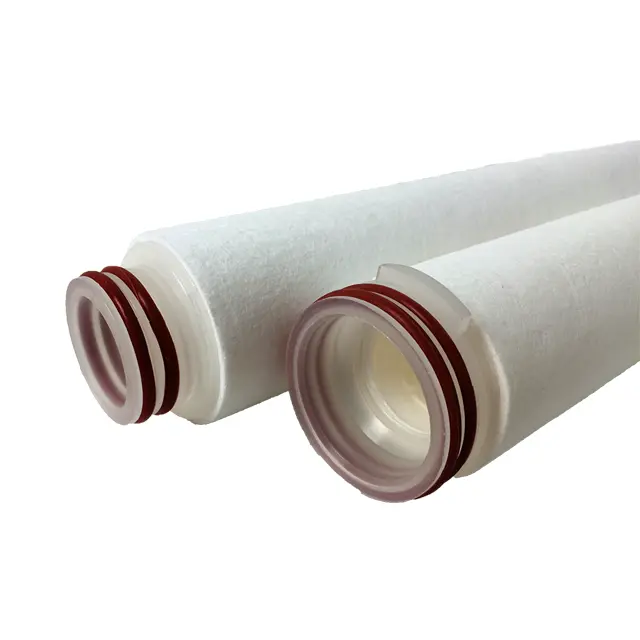

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Detailed Images

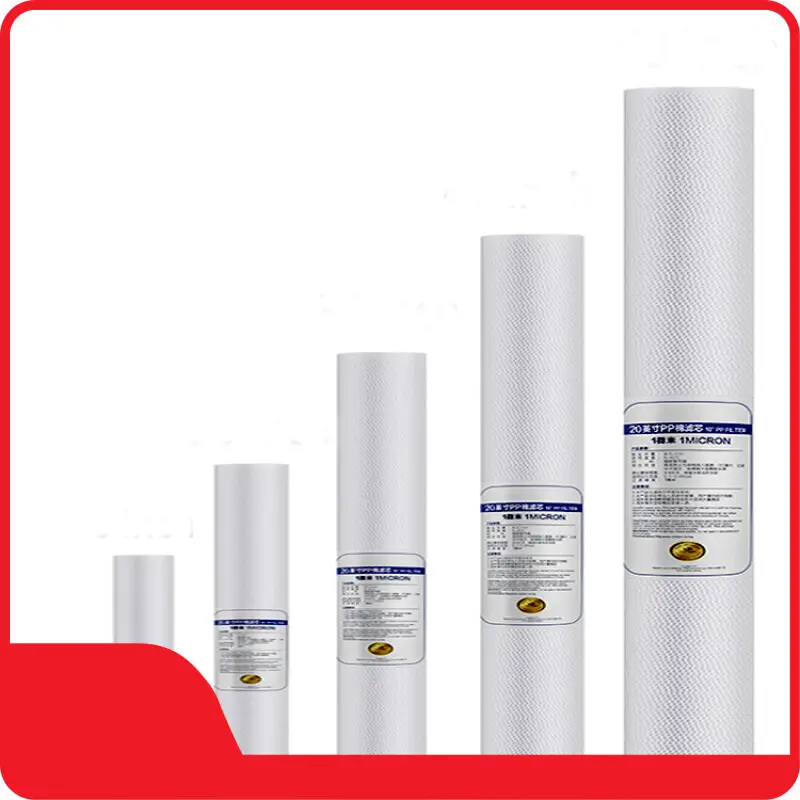

Groove surface PP sediment filter cartridges.

Flat surface PP sediment filter cartridge

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

DOE opened pleated filter

OEM customized size filter

Different end caps pleated filter

PP melt blown filter cartridge with 1 2 3 layers for option

PP shell Polypropylene melt blown filter cartridge

Customize PP core or stainless steel shell/core pp filter cartridge

Application

RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION

BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Container for shipment

Container for shipment

Certifications

Our Company

Let's Make Custom Water Filter Cartridge For You Now.

.

Company Introduction

Located in guang zhou, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a company that integrates processing, wholesale, and transportation. The key products are water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture. Our company abides by the business philosophy of 'people-oriented, common development'. We always hold the tenet of providing service for society and returning to our country. Therefore, we implement the brand strategy and strive to build the industry's fine products, so as to become the leading enterprise in the industry. Based on the implementation of advanced talent reserve strategy, Lvyuan Water Purification Equipment introduces a large number of outstanding technical and management talents. They contribute to our development. With a focus on customers, Lvyuan Water Purification Equipment analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.
Lvyuan Water Purification Equipment 's water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture have reasonable price and reliable quality. Your consultation and cooperation are sincerely welcome!
