Long Lasting Sintered Mesh Filter for Food
Product details of the sintered mesh filter
Quick Overview
Our machinery is provided with advantages of compact structure, novel design, stable performance and convenient operation and so on. The production of Lvyuan Filter sintered mesh filter follows the international standards and green norms. The product is guaranteed to be of good quality as the strict quality control process has effectively eliminated the defects. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is committed to providing customers with high quality and competitive products and services.
Product Description
The following are the sintered mesh filter's details presented to you by Lvyuan Water Purification Equipment . And it can help you better understand the product details.
Product Description
Plain cylindrical design Stainless Steel Wire Mesh filter cartridge
Pleated configuration design Stainless Steel folded mesh filter cartridge

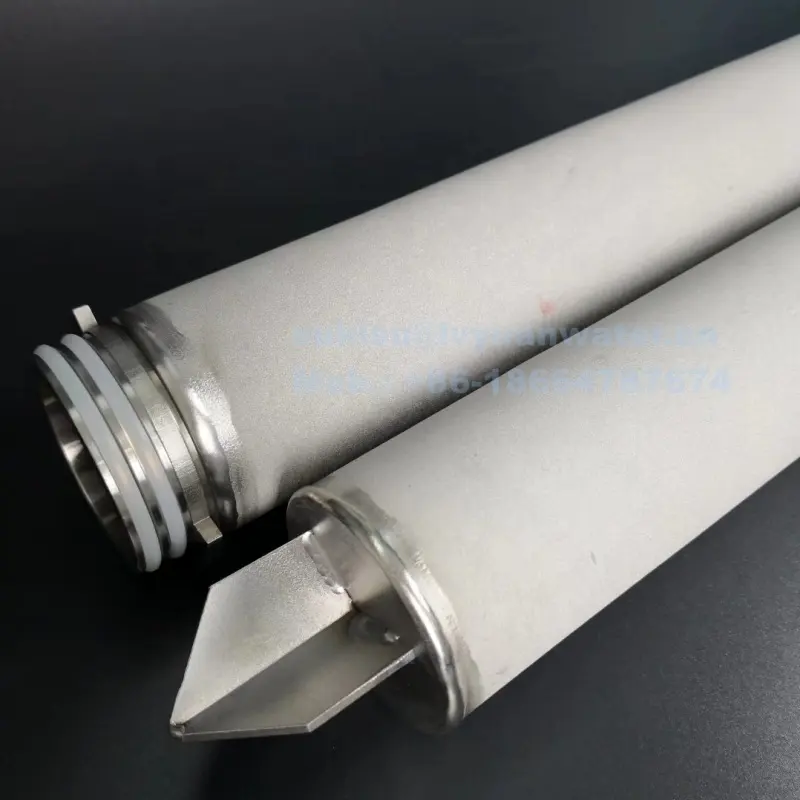

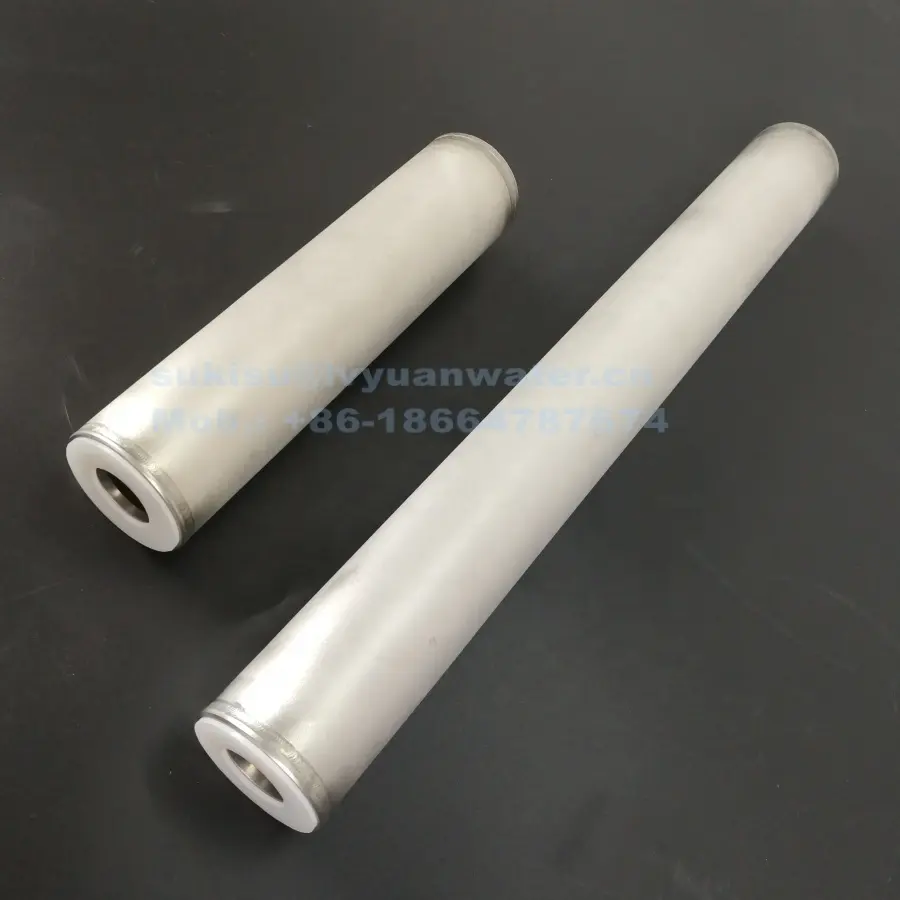

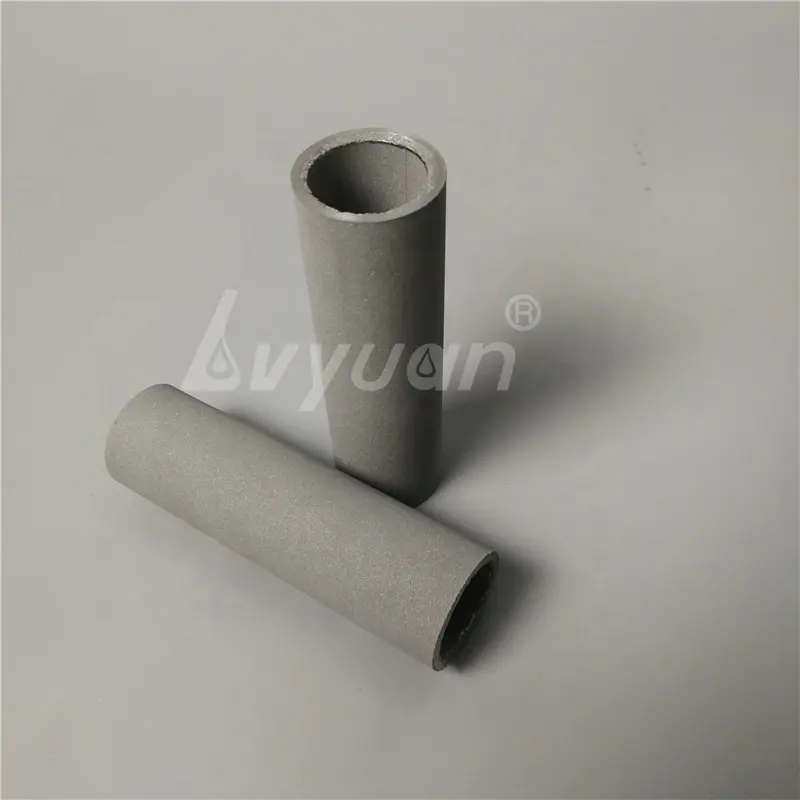

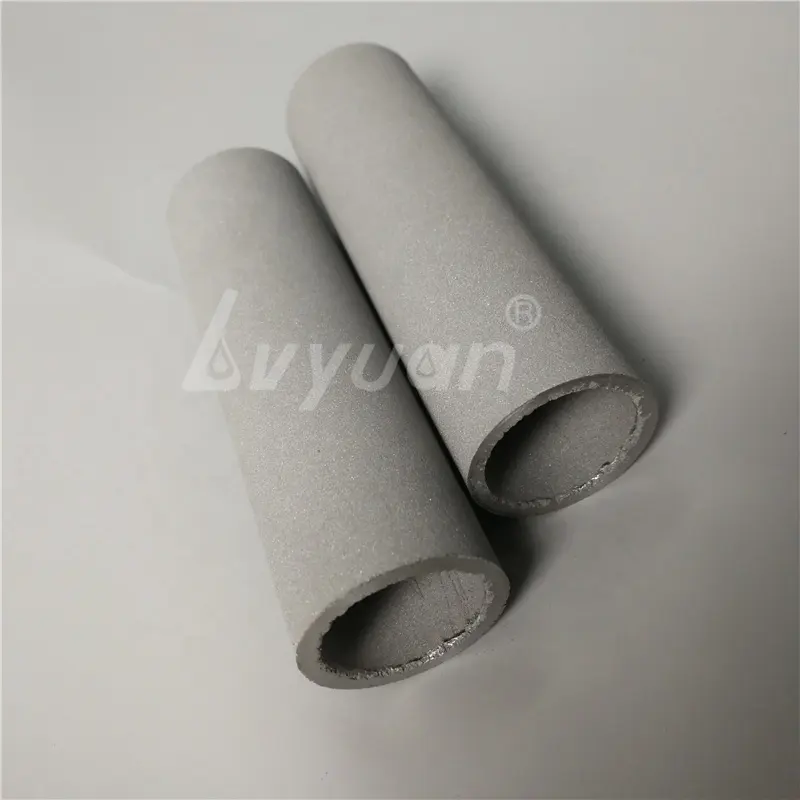

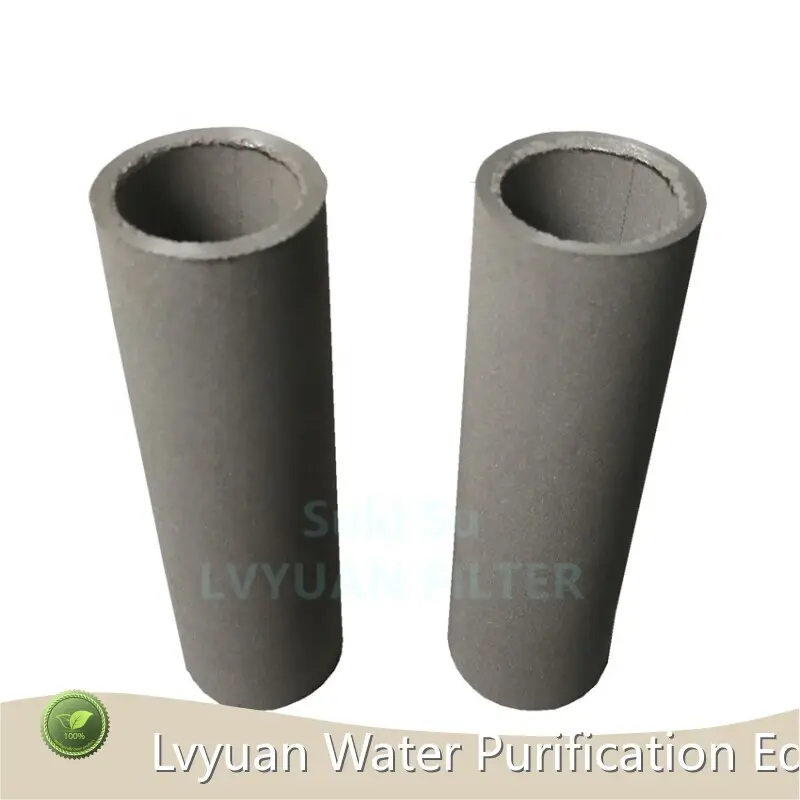

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge
Customized Porous Stainless Steel Filter cartridge with SS support Frame

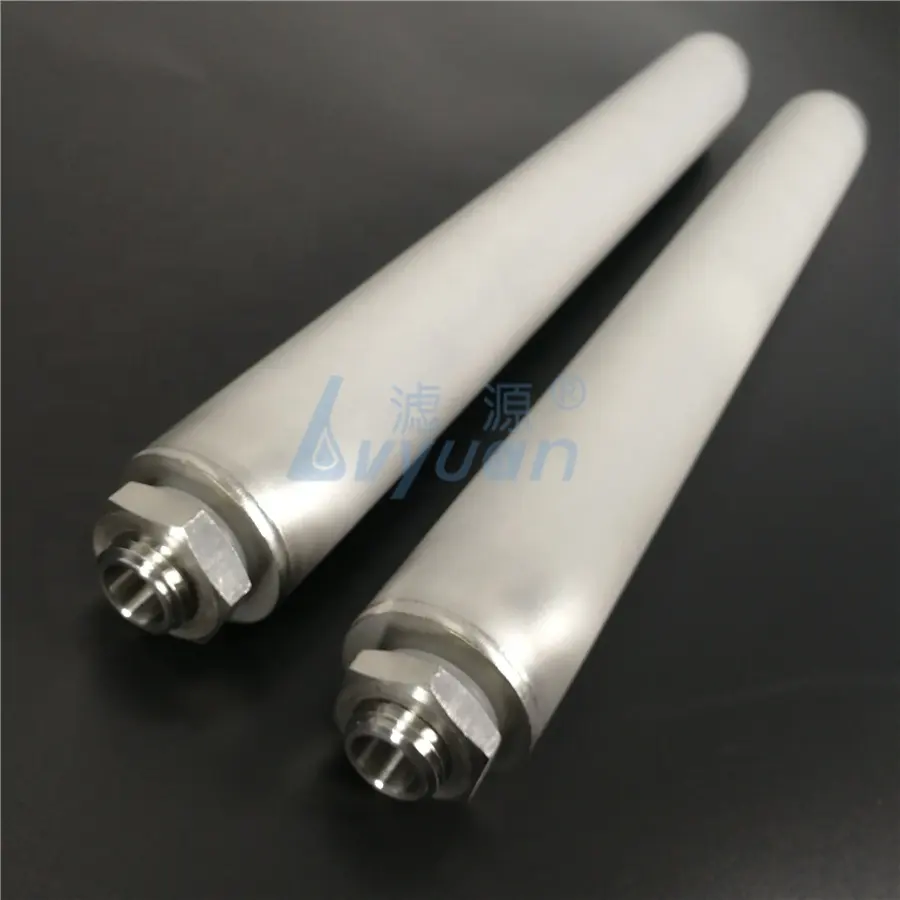

High temperature Pressure Sintered porous Metal stainless steel filter tube for filtering elements nitrogen natural gas
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel, titanium | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
Outside protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc | |
Performance | ||
Removal rate | 0.2, 0.45, 1, 3, 5, 10, 20, 25, 30, 40, 50, 100um, micron etc | |
Effective Surface area | 0.65sqm per 10" cartridge element | |
Operation Temperature | ≦480℃ | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Maximum Operating Pressure differential | 4.0bar | |
Features:
1.Excellent mechanical strength.2. High dirt holding capacity.3. High pressure resistance, withstand capacity and low pressure drop.4. Temperature ratings from -73°C to 480°C.5. Various micron ratings available from 2um to 1000um nominal.6. Back flushing and cleanable for long service life.7. Strong corrosion resistant for wide chemical compatibility.8.High permeability, no media migration.9.Customized dimension are welcome.
Application
Stainless steeel Filter Cartridge Applications:1. Water filtrations2. Hydraulics3. Automotive4. Pneumatics5. Chemical6. Petrochemical7. Medical8. Oil & gas9. Aeronautical10. Mining11. Food & beverage12. Pharmaceutical
Products Show
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Certifications
Customer Photo
Contact
The chances for the error of this product is extremely low. With its high accuracy, the product helps reduce production costs due to human error. It contains no binders, agents, solvents, antistatic materials or wetting agents.
The product helps reduce the work burden. It keeps the employees refreshed and prevents them from burning out, which will help maintain business productivity. It contains no binders, agents, solvents, antistatic materials or wetting agents.
Company Introduction
Lying in guang zhou, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a modern company. We attach attention to water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture production. Under the background of the serious phenomenon of product homogenization, Lvyuan Water Purification Equipment strives to make progress and seek development and innovation in the machinery industry. We established a brand called Lvyuan Filter and stick to product differentiation. Lvyuan Water Purification Equipment is dedicated to providing satisfactory services based on customer demand. With an efficient and professional R&D production team, our company could provide customers with one-stop custom services.
Lvyuan Water Purification Equipment 's water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture are produced and sold directly from the factory. They have favorable price and guaranteed quality. Just contact us quickly!
