Lvyuan Filter 5 Micron Water Filter Upplier

Overview

Quick Details

Place of Origin:

China

Brand Name:

Lvyuan/OEM

Model Number:

LY-PLF-01

Power (W):

0

Voltage (V):

0

After-sales Service Provided:

none

Warranty:

none

Type:

Reverse Osmosis

Certification:

GS

Use:

Household Pre-Filtration

Application:

Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:

Manual

Name:

cartridge-type filter element

Filter membrane material:

PP/PVDF/PTFE/PES/Nylon

Length:

5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:

Fin/222/226/215/DOE/Thread

Micron:

0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:

Hot melting welding

Diameter:

70mm/OEM

Inner Core:

PP/SS/OEM

MOQ:

Currently no limited

Supply Ability

Supply Ability:

5000 Piece/Pieces per Week

Online Customization

Replaceable cartridge-type filter element 5 inches 10 inches for Kitchen and Bathroom

Product Description

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility. Melt Blown sediment filter cartridge has strong pollutants holding capacity.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Detailed Images

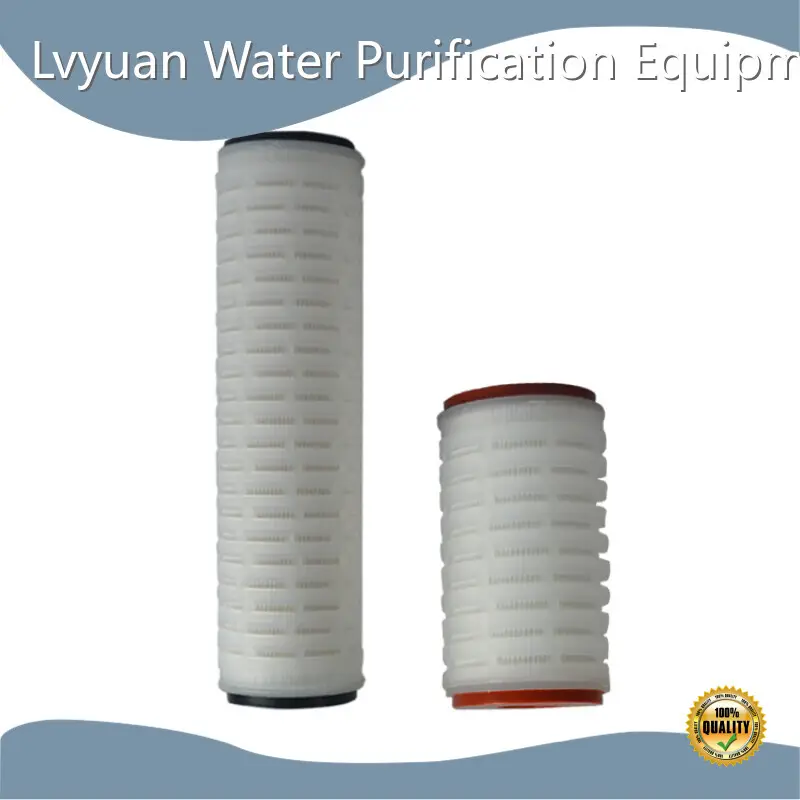

Groove surface PP sediment filter cartridges.

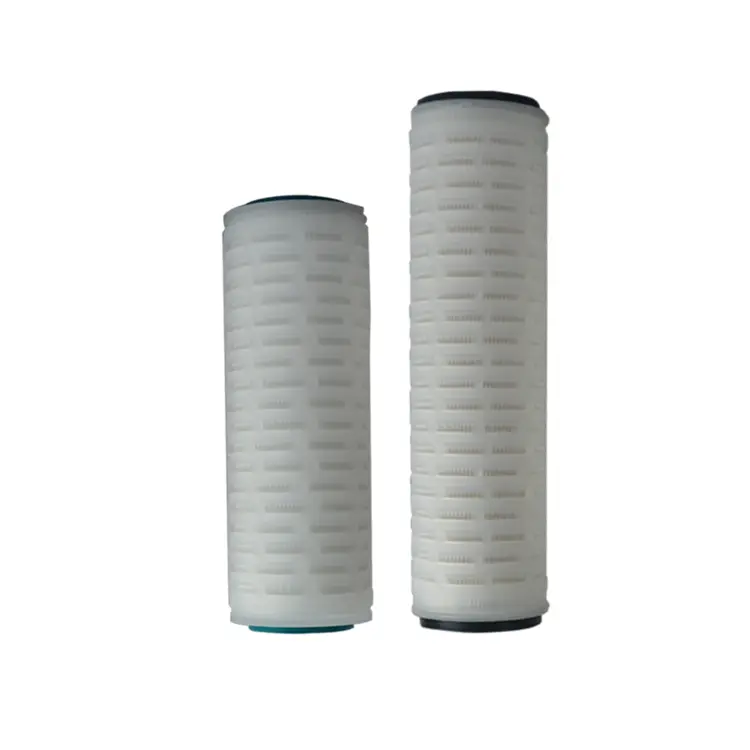

Flat surface PP sediment filter cartridge

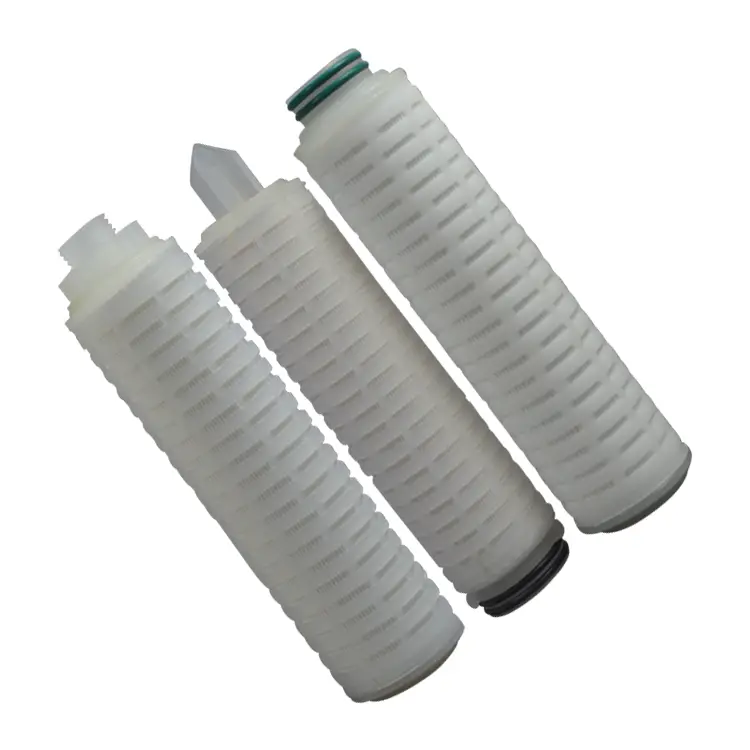

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

DOE opened pleated filter

OEM customized size filter

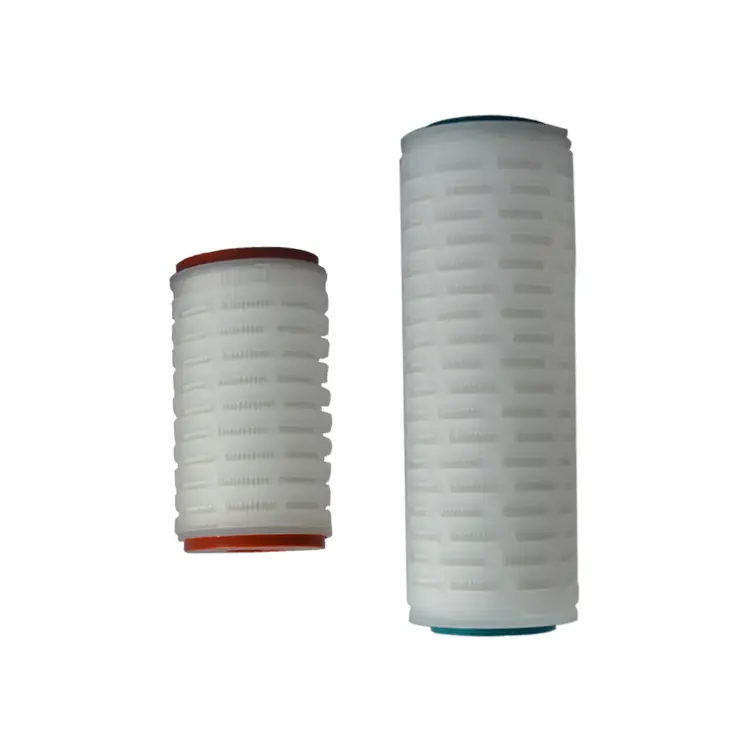

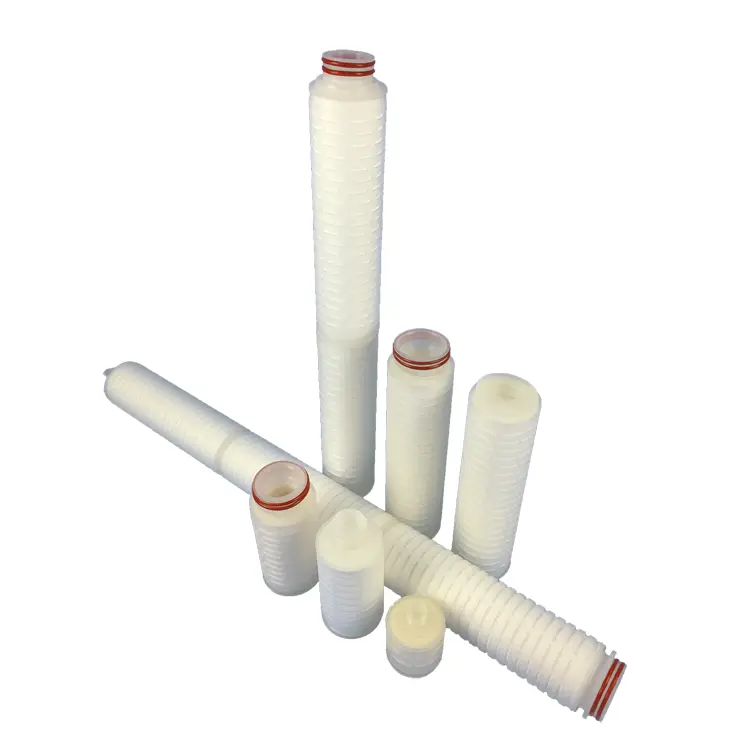

Different end caps pleated filter

PP melt blown filter cartridge with 1 2 3 layers for option

PP shell Polypropylene melt blown filter cartridge

Customize PP core or stainless steel shell/core pp filter cartridge

Application

RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION

BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Container for shipment

Container for shipment

Certifications

Our Company

Let's Make Custom Water Filter Cartridge For You Now.

.

Company Advantages

· Lvyuan Filter 5 micron water filter is properly manufactured to meet customer's stringent demands.

· The product guarantees superior quality, stable performance and long service life.

· Lvyuan Filter tries and keeps our prices as low as possible.

Company Features

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is known for manufacturing high quality 5 micron water filter with competitive price.

· Our 5 micron water filter have been selected and awarded many times by authority institutions.

· We always deliver high quality, cost effective, and timely 5 micron water filter. Inquiry!

Application of the Product

5 micron water filter of Lvyuan Water Purification Equipment can be widely used in various fields.

Lvyuan Water Purification Equipment is committed to providing customers with high-quality water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture as well as one-stop, comprehensive and efficient solutions.
