Sintered Stainless Steel Filter T/T - - Lvyuan Filter

Company Advantages

· The whole production of Lvyuan Filter sintered stainless steel filter is completed by the combination of sophisticated equipment and professional staff.

· This product has passed a series of international quality assurance systems and safety certifications.

· As a famous brand, Lvyuan Filter is skilled at producing sintered stainless steel filter with high quality.

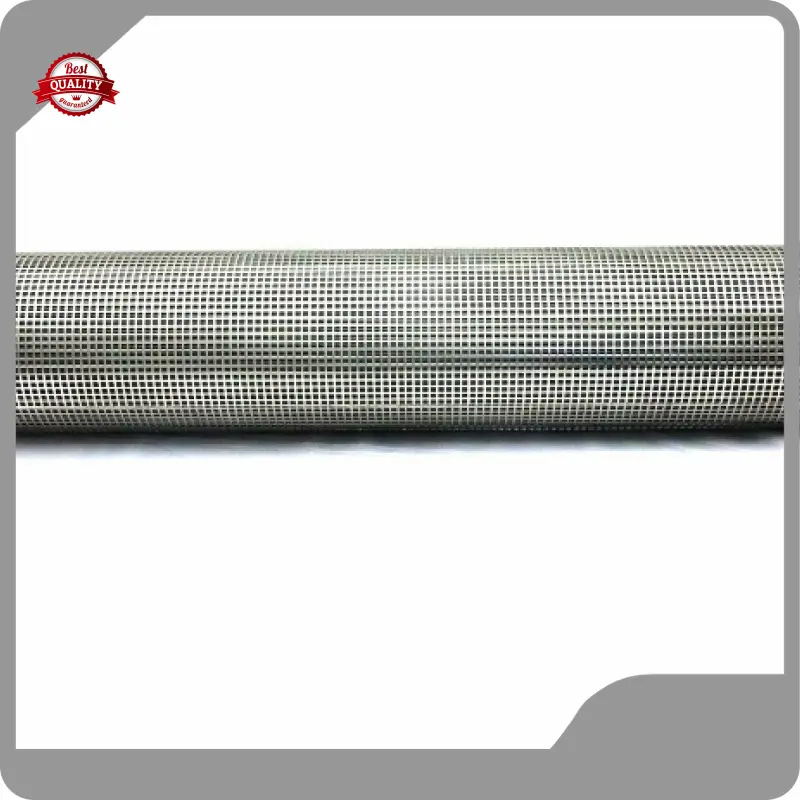

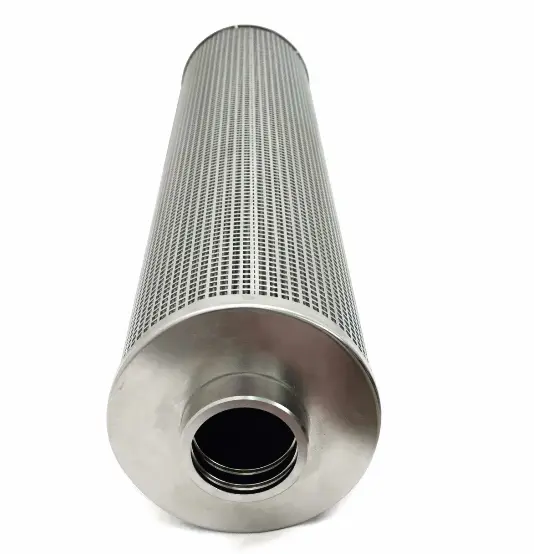

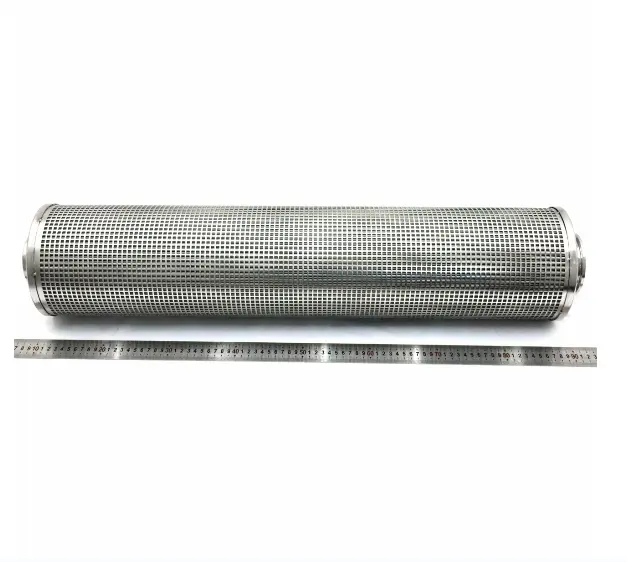

Filter element stainless steel filter tube

stainless steel filter tube is composed of standard five layer sintered mesh, which is laminated and sintered in vacuum. This kind of filter cartridge has the following advantages such as high strength, high corrosiveness, excellent permeability, easy to wash and backwash, accurate filter efficiency etc.

Standrad Sintered Mesh consists five layers:the protctive layer,the filter layer, the dispersion layer, two reinforcing meshes.Owing to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing andregeneration. Futhermore,this mesh is easy to be formed,machined and welded. It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.

Product Description

nomal filter rating(um):2,5,10,20,40

control layer(mesh):325*2400 200*1400 165*1400 165*800 50*250

permeability(%):38

bubble point pressure:280-640(2um) 250-600(5um) 220-550(10um) 180-450(20um) 150-400(40um)

thickness(mm):1.7

weight(kg):8.4

Main Connection Type

*Standard interface, such as 222, 220, 226

*Fast interface

*Flange connection

*Tie rod connection

*Threaded connection

*Customized connection

Company Features

· Lvyuan Filter is highly recommended by more customers.

· We have employed a professional manufacturing team. They have long term experience in solving difficult manufacturing challenges. Their technology competence is far beyond average. We have an exceptional team of developers. They have proven records of success and many industry achievements and strictly adhere to the highest standards of development. We have robust teams covering the entire manufacturing process. Their expertise in materials research, advanced design methods, and global manufacturing capability allows us to create reliable sintered stainless steel filter according to the needs of our customers.

· As a major employer, we recognize that we have a duty to contribute to the wider economy, creating jobs, using local suppliers and supporting our clients in tackling local socio-economic issues. Call now!

Product Comparison

Compared with similar products, our company's sintered stainless steel filter has the following outstanding features.
