Stainless Steel Cartridge Filter for Manufacturing Industry Factory

Company Advantages

· The materials of Lvyuan Filter stainless steel cartridge filter 100% meet the regulatory requirements.

· It is strictly controlled by our QC department before shipment.

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has strong research and development capabilities for stainless steel cartridge filter.

Overview

Quick Details

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:

Online support

Local Service Location:

none

Showroom Location:

none

Video outgoing-inspection:

Not Available

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty of core components:

Not Available

Core Components:

Pressure vessel

Place of Origin:

Guangdong, China

Brand Name:

Lvyuan / OEM

Material:

stainless steel

Weight:

it depends

Size:

it depends

Power:

0

Warranty:

1 Year

After-sales Service Provided:

Online support

Product name:

304 filter

housing Materials:

ss304, 316, 316L

Cartridge filters quantity:

1 - 160PCS for option

Filter cartridge length:

5, 10, 20, 30, 40, 60 inch, OEM

Surface treatment::

Polished & Sandblast

Top cap installed type:

Lifting bolts/Flange/Clamp type

Usage:

water/liquid/wine treatment plant

Package:

Wooden case

Connector type:

code 0 3 6 7 8 9

Certification:

CE ISO/SG/S

Supply Ability

Supply Ability:

500 Piece/Pieces per Day single filter housing 222

Online Customization

Product Description

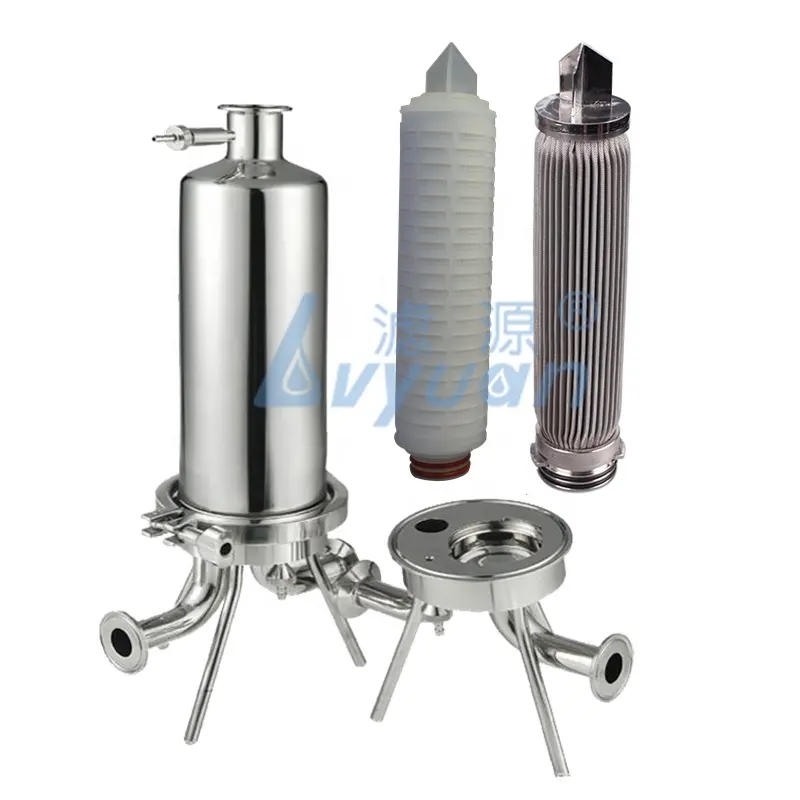

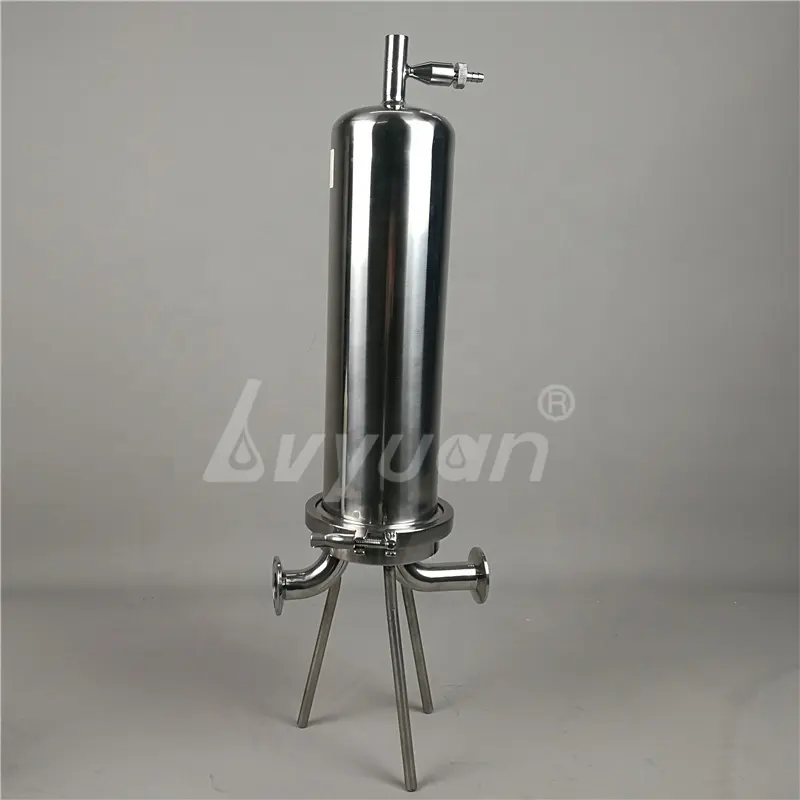

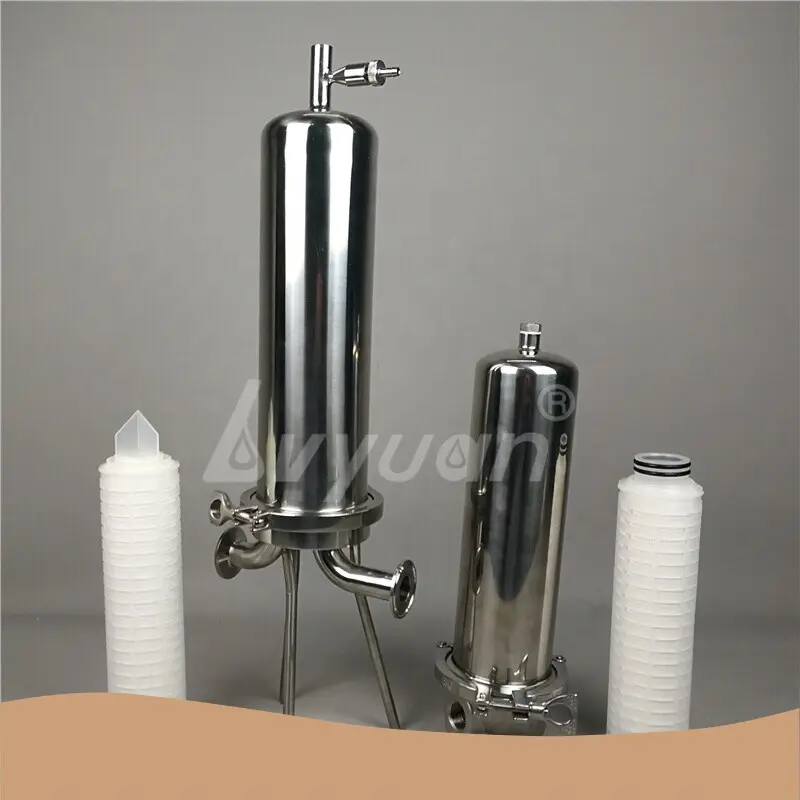

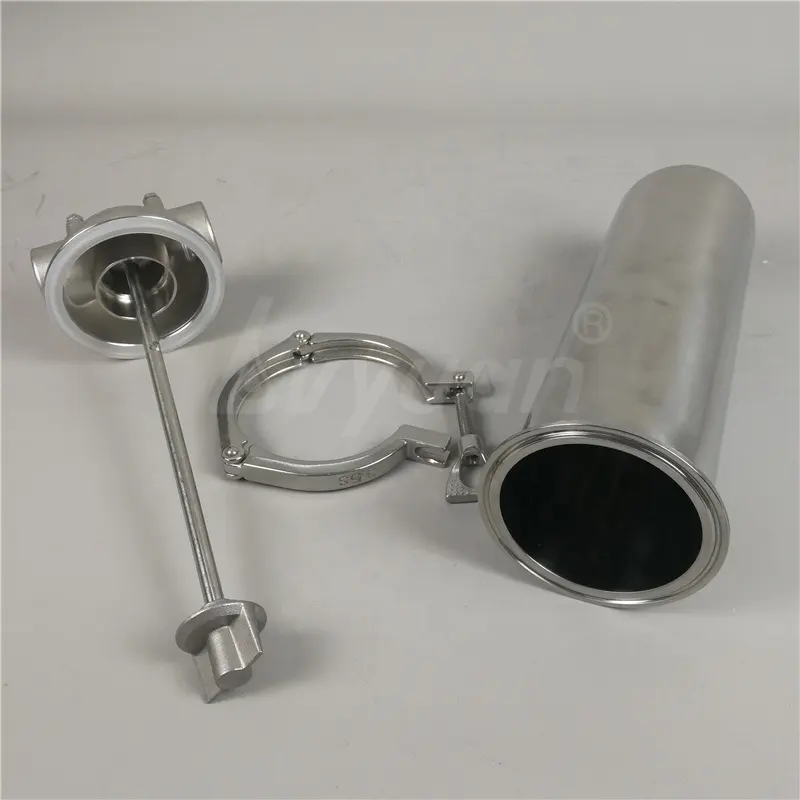

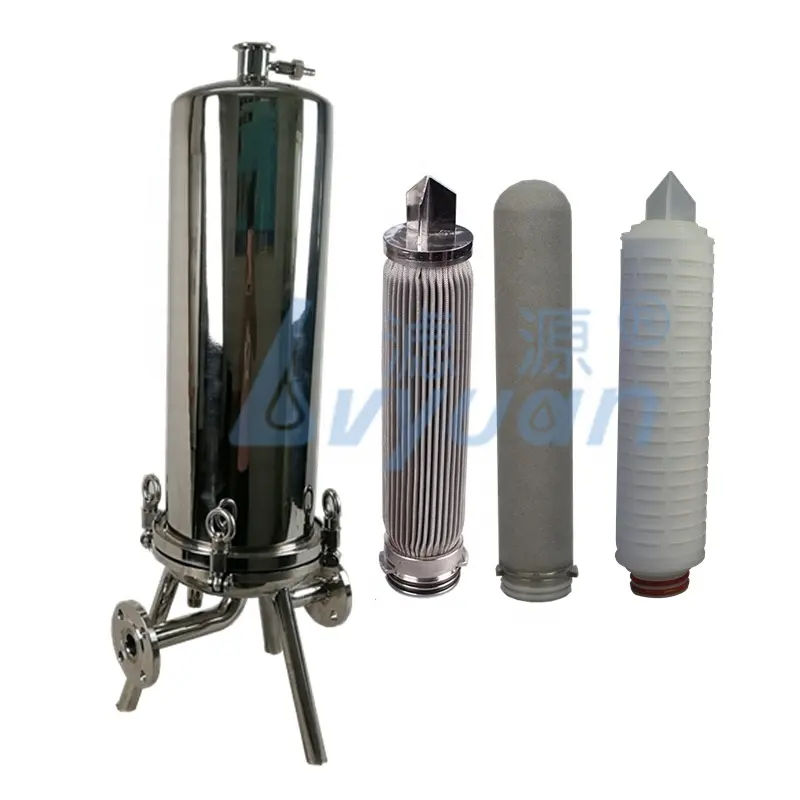

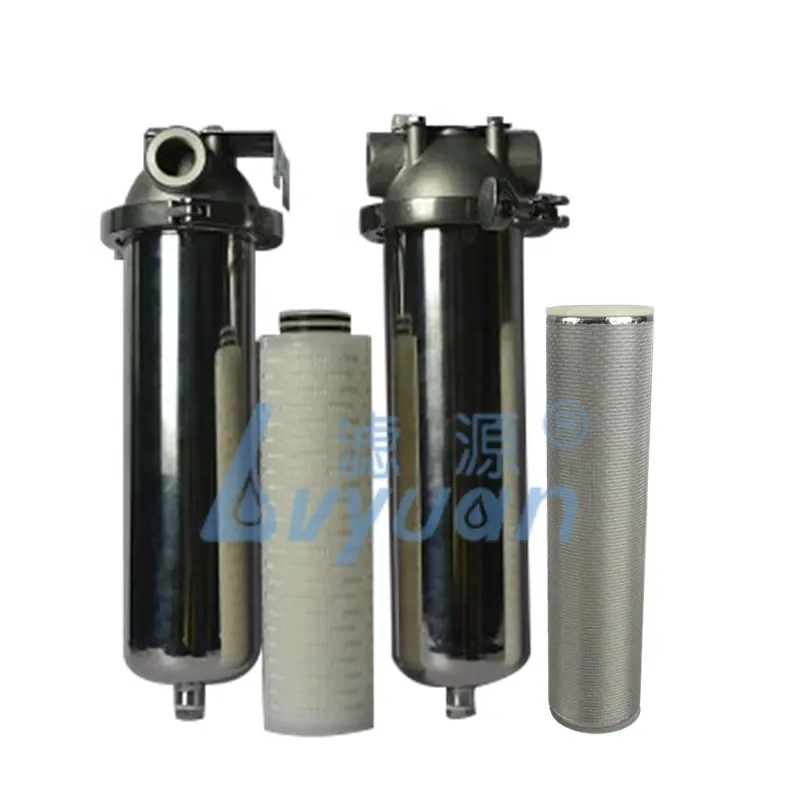

222 226 DOE adaptor Cartridge filters Stainless Steel 304 Single Filter housing

Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.

Different stainless steel single and multi-cartridges filter housing can be customized, as long as you offer us picture and drawing.

Single Dual Triple Filtration Stages Stainless Steel Filter System with trolley and pump

Product name	Stainless Steel cartridge filter housing	Material	SUS304, SUS316, SUS316L
Cartridge core	single or multi-cartridge	Cartridge length	2.5'', 5'', 10, 20 ,30 ,40, 50'' or OEM
Cartridge Quantity	1 ~ 160 pcs for option	Surface treatment	Polished or sandblast external
Cartridge end cap	226/222/215/DOE/Flat/Fin	Suitable filter cartridges	PP melt blown, Pleated filter, CTO activated carbon, Stainless steel mesh/pleated filter cartridges.
Top Cap installed type	lifting bolts, flange, tri clamp	inlet/outlet connection	clamp, thread, flange, pogoda
Seal O-ring	silicon,NBR, EPDM, Viton, PTFE	Usage	Liquid, gas filtration
Max working pressure	100, 150Psi, OEM	Wall thickness	1.2~6mm

Product Models

Applications

1. Industrial water treatment2. Food & Beverage: bottled water, beers, wines, flavors, polishing, clarification3. Chemicals & Petrochemicals: Solvents, solutions, chemical filtration, acids, bases4. Health Care & Pharmaceuticals: Membrane filtration, ophthalmic, oral medicines, serum5. Industrial processes: clean water, removal of carbon6. Paints & Coatings: paints, coatings7. Electronics: High purity water, photo resists8. Cosmetics: Alcohols, creams, lotions, essential oils, mouthwashes

Products Show

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our Certifications

Contact

Company Features

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a Chinese company founded years ago dedicated to the design and manufacture of high-quality stainless steel cartridge filter.

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. respects talents and puts people first, bringing together a group of technical and managerial talents with extensive experience. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has integrated advanced technology at home and abroad in the production of stainless steel cartridge filter.

· We attach great importance to environmental protection. We have strengthened production control and made more efficient use of materials, hoping to result in less scrap.

Product Details

Compared with ordinary products, Lvyuan Water Purification Equipment 's stainless steel cartridge filter has the following advantages in details

Application of the Product

The stainless steel cartridge filter developed by Lvyuan Water Purification Equipment is widely used in industry.

Lvyuan Water Purification Equipment has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
