String Wound Sediment Filter - for Manufacturing Industry - Lvyuan Filter

Product details of the string wound sediment filter

Product Introduction

According to different price level, we use different level of material for string wound sediment filter. The quality of this product is tested for many times to meet the requirements of quality standards. Always put customer first is kept in each staff of Lvyuan Filter.

Overview

Quick Details

Condition:

New

Applicable Industries:

Home Use

After Warranty Service:

Online support

Local Service Location:

none

Showroom Location:

none

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty of core components:

1 Year

Core Components:

Pressure vessel

Place of Origin:

China

Warranty:

1 Year

After-sales Service Provided:

Online support

Item:

PP filter string yarn sediment water filter cartridge

Material:

polypropylene fiber , absorbent cotton , glass fiber

Core:

PP/SS

Micron:

1/5/10/20/30/50/75/100

Inner Diameter:

28mm / 30mm / OEM

Length:

5" / 10" / 20" / 30" / 40" / 50" / 60"

PP wound filter+PP core:

60℃

PP wound filter+SS:

100℃

Cotton filter+SS:

120℃

Glass fiber+SS:

180 - 300℃

Packaging & Delivery

Selling Units:

Single item

Single package size:

30X5X5 cm

Single gross weight:

1.000 kg

Package Type:

Guangzhou 10 20 inch PP filter string yarn sediment water filter cartridge for 1 micron RO water filter system 51x31x33cm- 10" 25pcs/20" 25pcs

Lead Time :

Quantity(Pieces)	1 - 500	501 - 1000	1001 - 5000	>5000
Est. Time(days)	2	5	7	To be negotiated

Online Customization

Guangzhou 10 20 inch PP filter string yarn sediment water filter cartridge for 1 micron RO water filter system

Product Description

Guangzhou PP filter string yarn sediment water filter cartridge for 1 micron RO water filter system

Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Product name	Guangzhou 10 20 inch PP filter string yarn sediment water filter cartridge for 1 micron RO water filter system
Material	Polypropylene fiber , Absorbent cotton , Glass fiber
Precision	1-100 micron
Outer diameter	28mm-30mm/OEM
Inner diameter	60mm-63mm /115mm /OEM
Length	9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
Connector	DOE/215/222/226/Fin/OEM
Max operating temperature	PP with PP core : 60 °C
		PP with SS core : 100 °C
		Cotton with SS core : 120 °C
		Glass fiber with SS core : 180 °C -- 300 °C

Detailed Images

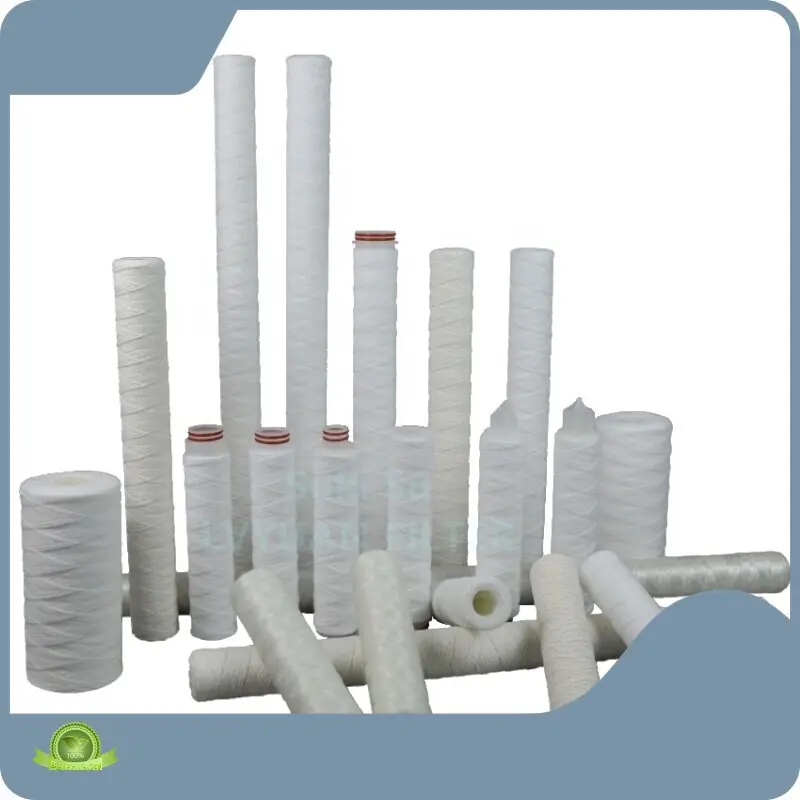

String Filter Wire Wound Filter with OEM size

This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

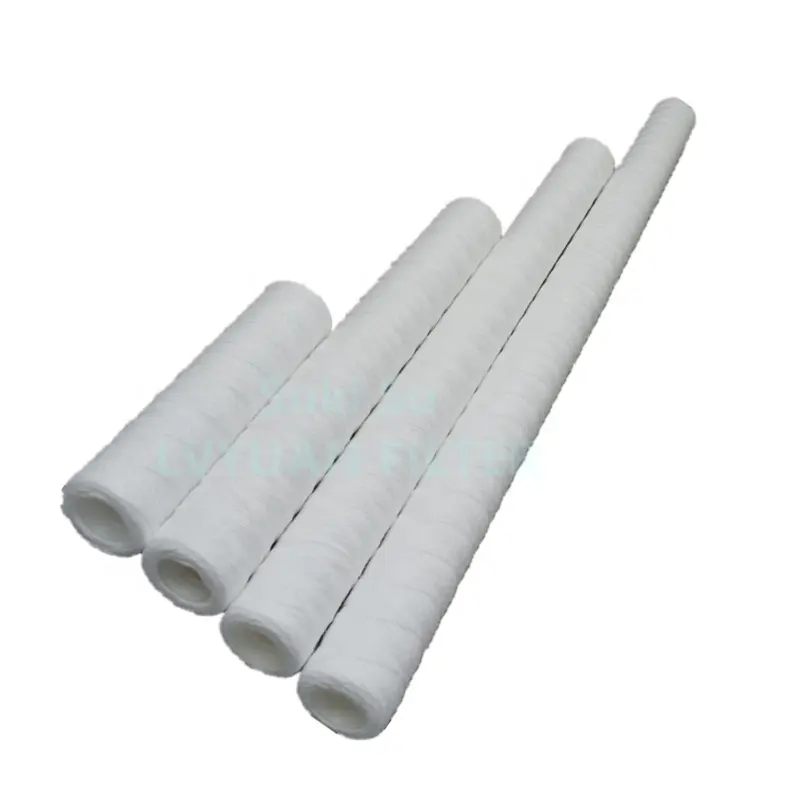

Jumbo PP yarn string wound water filter

Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.

The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

Fiberglass wire wound filter cartridge

The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.

Applications:

Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

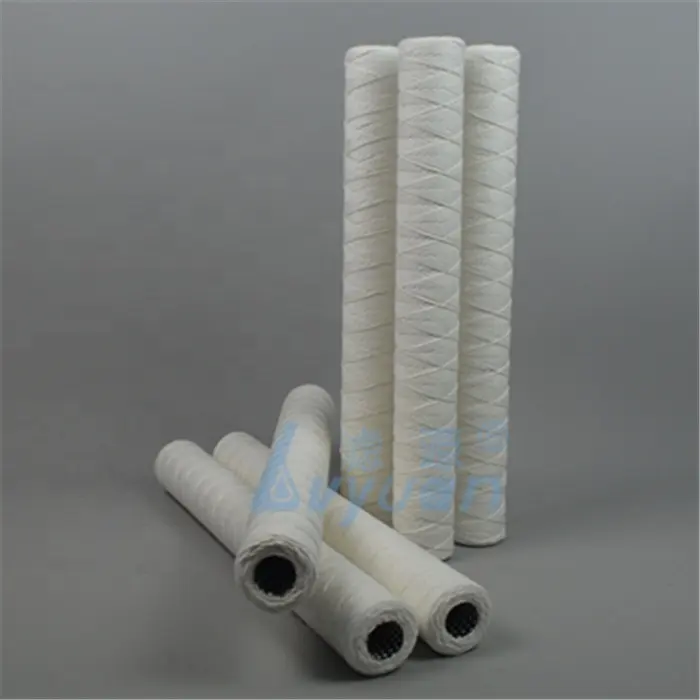

Absorbent cotton string wound filter

Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc. The working temperature is ≤120℃Non-toxic, odorless, no secondary pollution, and long service life. Length: 10", 20", 30", 40"Core: Stainless steel/SUS304 316L

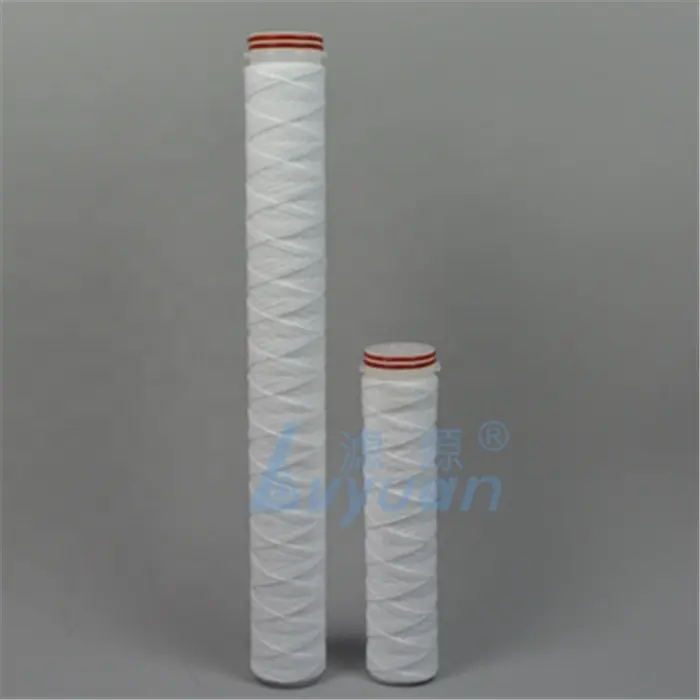

Polypropylene string wound PP yarn filter

Filter media: Polypropylene Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100umPolypropylene with PP core: ≤80℃High dirt holding capacity, longer service life. Fits to all the standard filter housings.Wide chemical compatibility and high filtration micron. Various filter media fit with various applications. All kinds of adaptors are available.

Application

RO SEA WATER TREATMENT

POWER PLANT

BIOLOGY TECHNOLOGY

PETROCHMICAL INDUSTRY

BOTTLED MINERAL WATER

BEER & BEVERAGE FILTRATION
