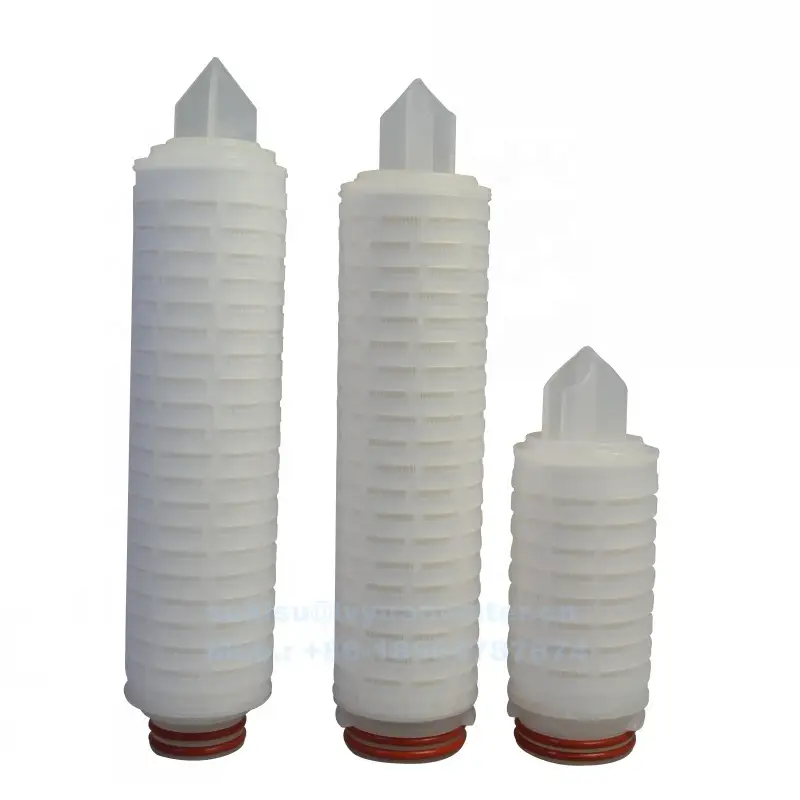

Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 1
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 2
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 3
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 4
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 5
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 6
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 1
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 2
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 3
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 4
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 5
Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 6

Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Not Available
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    Not Available
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Material:
    Weight:
    depends
    Size:
    standard, customization
    Power:
    0
    Warranty:
    Unavailable
    Product name:
    pleated fiberglass filter
    Micron Rate:
    0.1, 0.5, 1, 5, 10 ~60um
    Pleated cartridge Material:
    PP/PTFE/PES /Nylon 6 /PVDF
    Length:
    5", 10", 20", 30", 40" , OEM
    Filter Media:
    Polypropylene membrane
    End Code:
    DOE,222+Fin,222+Flat,226+Fin,226+Flat
    Gasket/O ring material:
    Silicon/EPDM/NBR/Viton/Telfon
    Usage:
    liquid filter elements, water filter parts
    Inner core:
    PP / stainless steel
    Certification:
    ISO9001
    Core Components:
    liquid cartridge filter
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day fiber glass filter
    Product Description
    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 7

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code

    Pleated membrane cartridge filters from Guangzhou Lvyuan Filter offer the ultimate in product safety and purity for absolute filtration with pore sizes from 0.05 to 100 micron (depending on the media). Available in membranes Polypropylene, PTFE, Polyethersulfone (PES), Nylon 66 and PVDF, Fiber Glass, Polyester for maximal chemical compatibility. We supply a wide selection of micron sizes and end cap configurations to choose from. Lvyuan pleated membrane filter cartridge are widely used for high purity, pre-filtration and final filtration applications.

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 9
    Glass Fiber Pleated Filter Cartridge
    The absolute fiber glass pleated membrane cartridge has high efficiency of solid removal. The pleated filter cartridges provides long lifetime service because of its large filter area and depth filtration. Fiber glass filters are suitable to work in high temperature oily water, acid, solvents and diesel fuels. So it's widely used in oil and mine exploitation, chemical and process water treatment.
    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 11

    PP Pleated Filter Cartridge

    The filtration media of PP micropore filter cartridge is super fine PP (Polypropylene) fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1 micron to 50 micron, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life features. The structure of PP has stable performance and wide chemical compatibility.

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 13

    PTFE Pleated Filter Cartridge

    Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.

    Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 15

    PES Pleated Filter Cartridge

    The filtration media of PES micropore filter cartridge is hydrophilic PES (polyethersulfone) membrane. High porosity (about >=80%) and geometrically unique pores of the PES filter cartridge contribute to high outputs for difficult-to-filter solutions. It is contructed of 2 materials PES and PP to meet high standard of chemical and pharmaceutical industry. All filter cartridges are manufactured and assembled in a clean room environment. 100% of the cartridges are integrity tested and flushed with EDI pure water. It is suitable for filtering weak acid/alkali based liquid and ultra pure water.

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 17

    Nylon Pleated Filter Cartridge

    The filtration media of nylon micrpore filter cartridge is constructed of nylon 6 or nylon 66 media and nonwoven support materials. The adaptors are thermally welded without any glue or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100% integrity tested and flushed with ultrapure water.

    Specification
    Filter Media Option
    PP
    PES
    PTFE
    Nylon 6/66
    PVDF
    Length
    2.5'', 5, 10, 20, 30, 40 inch
    2.5'', 5, 10, 20, 30, 40 inch
    2.5'', 5, 10, 20, 30, 40 inch
    2.5'', 5, 10, 20, 30, 40 inch
    2.5'', 5, 10, 20, 30, 40 inch
    Micron Rate
    0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
    0.1, 0.2, 0.45, 0.65 micron
    0.2, 0.45 micron
    0.2, 0.45, 0.65, 1 micron
    0.2, 0.45 micron
    End Cap
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    Inner Diameter
    28mm
    28mm
    28mm
    28mm
    28mm
    Outer Diameter
    69mm (can be customized)
    69mm (can be customized)
    69mm (can be customized)
    69mm (can be customized)
    69mm (can be customized)
    Gasket/O ring material
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Effective filtration area
    0.4-0.7m²
    ≥5m²
    ≥0.72m²
    ≥0.6m²
    ≥0.72m²
    Max.working pressure difference
    0.42Mpa at 25ºC
    0.42Mpa at 25ºC
    0.42Mpa at 25ºC
    0.42Mpa at 25ºC
    0.42Mpa at 25ºC
    Max.back pressure
    0.28Mpa at 60ºC
    0.21Mpa at 25ºC
    0.35Mpa at 60ºC
    0.35Mpa at 25ºC
    0.21Mpa at 25ºC
    Max. working temperature
    88ºC at 0.28Mpa, 60ºC at 0.42Mpa
    140ºC at 0.28Mpa
    142ºC at 0.276Mpa
    49ºC at 0.21Mpa
    80ºC at 0.173Mpa
    Sterilizing temperature
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    Application
    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 19

    1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
    2. Food industry: filtration of beverage, beer and mineral water.
    3. Chemical industry: filtration of organic solvent and ink.
    4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
    5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

    End Caps
    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 21
    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 23

    DOE (double open end), code 0

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 25

    222/Fin = code 7

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 27

    226/Fin = code 8

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 29

    222/Flat = code 3

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 31

    226/Flat = code 6

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 33

    215/Flat

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 35

    222/Fin with stainless steel

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 37

    222/Flat with stainless steel

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 39

    226/Fin code 8

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 41

    Screw type end cap

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 43

    80mm outer diameter available

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 45

    OEM dimension pleated filter cartridge

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 47

    2.5'', 5'', mini size pleated filter cartridge, OEM

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 49

    high flow pleated filter cartridge

    Pharmaceutical medical use Micro membrane 0.2 0.45 um Pleated fiberglass filter glass fiber cartridge with 222 226 end code 51

    Length can be customized
