pleated polypropylene micropore membrane filter/water filter element 226/fin

pleated polypropylene micropore membrane filter/water filter element 226/fin

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Condition:
New
Warranty:
Unavailable
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou Lvyuan
filter media material:
PP micropore membrane
Micron Rating:
0.1~60 um
Length:
5" 10" 20" 30" 40"
inner diameter:
30mm
outside diameter:
68~70mm
end cap:
doe,222/fin,222/flat,226/fin,226/flat
seal material:
silicone,EPDM,NBR,viton,tflon
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week

Introduction

Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.



Specifications and Parameters

Filter mediapolypropylene filter membrane
Length10",20",30",40"
Diameter69mm
micron rating (µm)0.10,2,0.45,0.65,1,2,3,5,10,20,30,60
end capdoe,222/fin,222/flat,226/fin,226/flat
seal materialsilicone,EPDM,NBR,viton,teflon
sealed typesweating soldering
effective filtration area0.4~0.7m2 /10"
max. working temperature80°C, 0.28Mpa
Max positive pressure differenceΔp0.42Mpa at 25°C
Max negative pressure differenceΔp0.28Mpa at 25°C
sterilizing temperature121 °C, 30min



      we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~



Structure

Application

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.

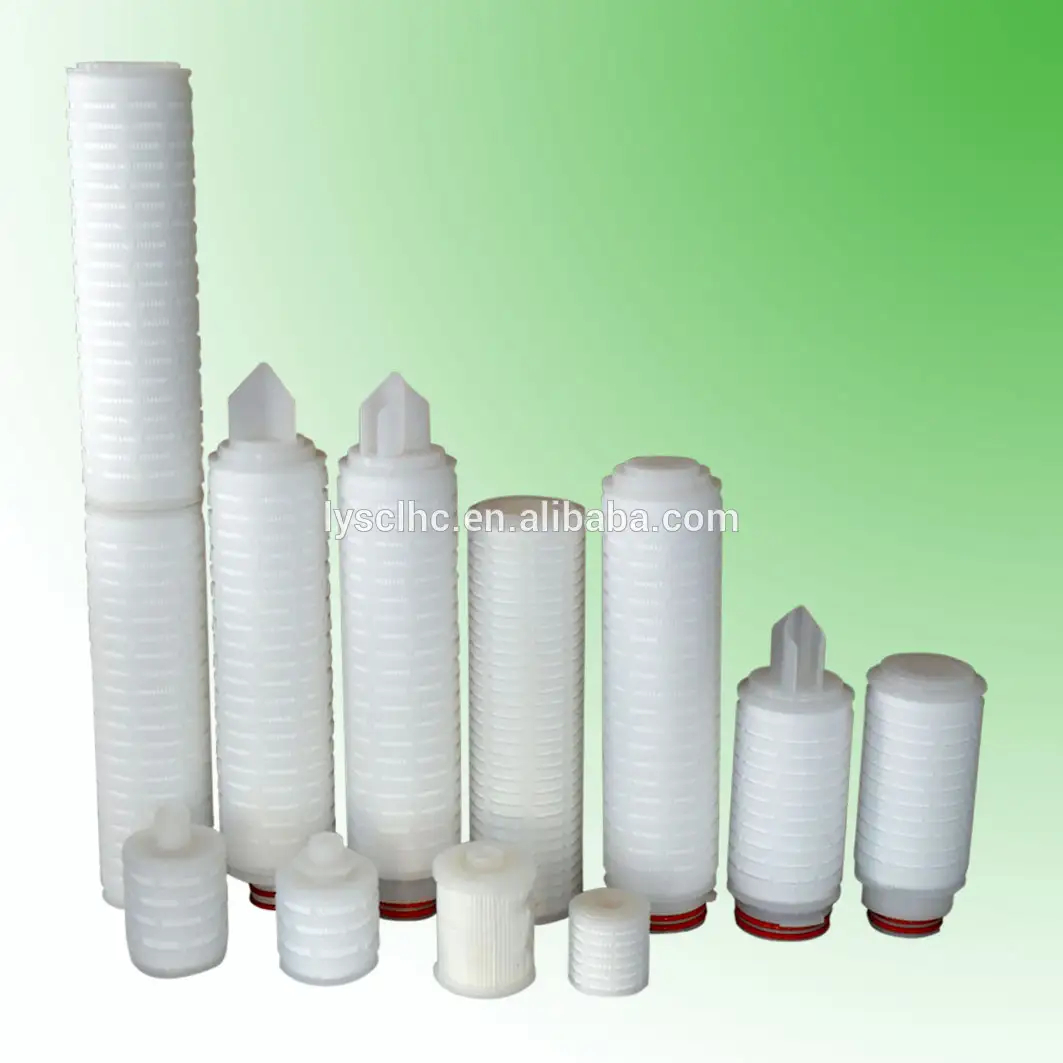

Pictures for polypropylene filter









Package

10 inch: 50PCS/CTN  400*400*685mm

20 inch: 25PCS/CTN   400*400*685mm

30 inch: 25PCS/CTN   835*435*425mm

40 inch: 25PCS/CTN    1100*395*400mm





End cap / Interface





Our factory

Guangzhou Lvyuan is a comprehensive enterprise, which is founded in year 2008 and located in Guangzhou city. we are specialized in manufacturing household water purifier and industrial water treatment machine as well as supply its accessories.

Household water purifiers include under sink RO water purifier, wall mounted RO water purifier, commercial RO water purifier and active mineral direct drinking water purifier, stainless steel central water purifier and water purifier for pre filltration.etc. The accessories include all kinds of filter cartridge, such as PP, UDF, CTO, T33, string wound filter,pleated filter,UF membrane,RO membrane ect.

Water treatment machine include RO water treatment machine, EDI ultrapure water treatment machine, ultrafiltration system,softening system,water reuse system, MBR biological processor, waste treatment system, anion and cation exchange system and bottled & barreled water system, etc. The accessories include all kinds of industrial filter cartridge, RO membrane, stainless steel filter housing,etc.

All our products are manufactured under strict process and got final inspection before delivery. In addition, our household RO water purifier has got CE certification. Under our good quality and best after-sales service, we have enjoyed high reputation and get satisfactions with our clients in our industry. We are looking forwards to establishing business relationship with you in future.
