Pleated polypropylene PP membrane 0.1 micron water filter cartridge for clear beer filter

Pleated polypropylene PP membrane 0.1 micron water filter cartridge for clear beer filter

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
carton
Weight:
depends
Size:
depends
Power:
0
Warranty:
Unavailable
filter membrane material:
Polypropylene(pp)/ptfe/pes/pvdf/Nylon
support material:
Polypropylene
O ring material:
silicone,EPDM,NBR,viton,te-flon
Micron Rating:
0.1 - 10 micron
Length:
5/10/20/30/40 inch
end cap:
doe,222/fin,222/flat,226/fin,226/flat
application:
Liquid or gas filtering
certification:
SGS ISO
Name:
pleated polypropylene cartridge filter
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month

Pleated polypropylene PP membrane 0.1 micron water filter cartridge for clear beer filter

Introduction

Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.



Specifications and Parameters

Filter mediapolypropylene filter membrane
Length10",20",30",40"
Diameter69mm
micron rating (µm)0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10,20,30,60
end capdoe,222/fin,222/flat,226/fin,226/flat
seal materialsilicone,EPDM,NBR,viton,teflon
sealed typesweating soldering
effective filtration area0.4~0.7m2 /10"
max. working temperature80°C at 0.28Mpa,  60°C at 0.42Mpa
Max positive pressure differenceΔp0.42Mpa at 25°C
Max negative pressure differenceΔp0.28Mpa at 25°C
sterilizing temperature121 °C, 30min



      we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~









Structure



Application

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.

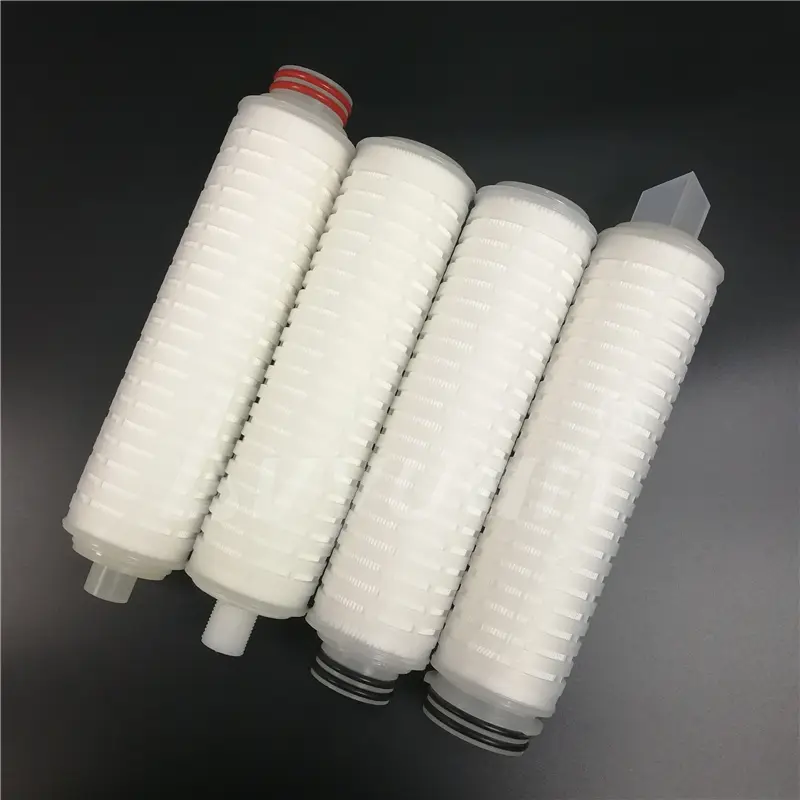

Pictures for polypropylene cartridge









Package

10 inch: 50PCS/CTN  400*400*685mm

20 inch: 25PCS/CTN   400*400*685mm

30 inch: 25PCS/CTN   835*435*425mm

40 inch: 25PCS/CTN    1100*395*400mm



If any of our products draw your interesting, pls contact Ms.Suki Su.

   Ph/wechat: +86 18664787674



Professional test procedures in Guangzhou Lvyuan Water Purification Equipment Co., Ltd. are necessary to assure clients to receive the most reliable water filter cartridges. It is manufactured from 100% Polypropylene construction. Lvyuan Water Purification Equipment 's great advantages are created with good raw materials from abroad and international advanced equipment. It is manufactured from 100% Polypropylene construction.
