Plain cylindrical design Stainless Steel Wire Mesh filter cartridge
Pleated configuration design Stainless Steel folded mesh filter cartridge

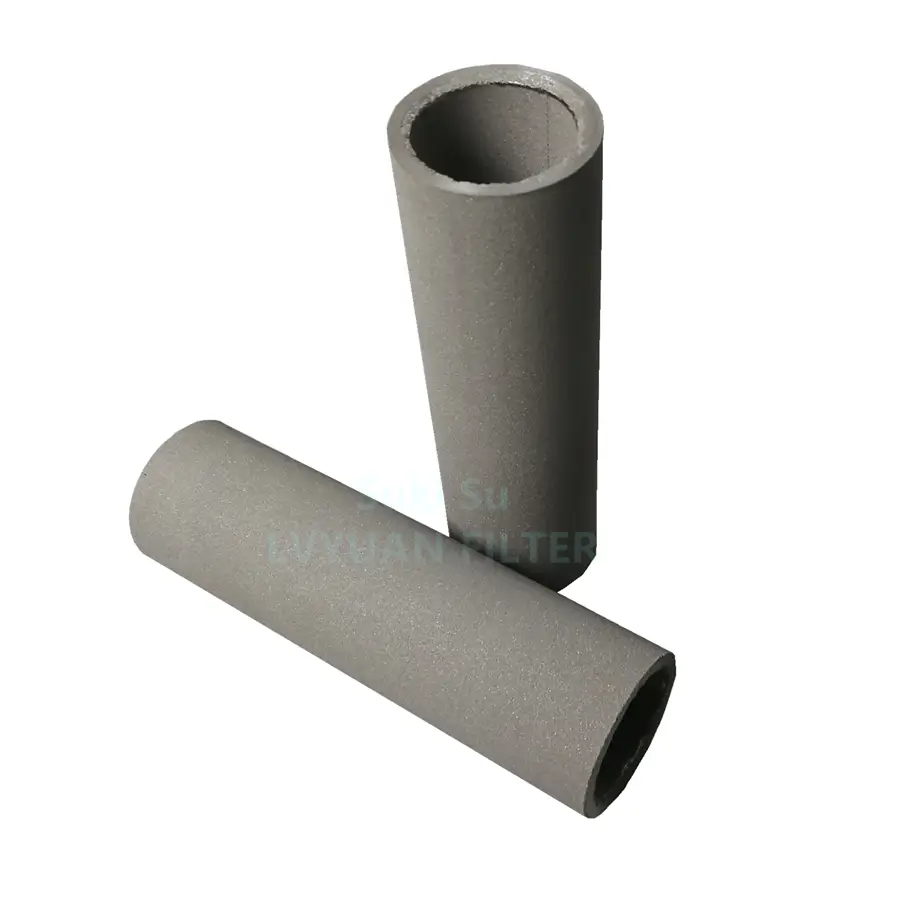

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge
Customized Porous Stainless Steel Filter cartridge with SS support Frame
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Ø25, 30, 50, 60, 65, 70mm
Customized by customer's request.
Material of constructions
SUS304, 316, 316L stainless steel, titanium
Flat, Insert type, Thread type, Fin
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net
Silicone, NBR, EPDM, Buna, Teflon, etc
0.2, 0.45, 1, 3, 5, 10, 20, 25, 30, 40, 50, 100um, micron etc
Effective Surface area
0.65sqm per 10" cartridge element
back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential
1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
8. Oil & gas
11. Food & beverage
