Product Details
Lvyuan Water Purification Equipment pays great attention to details of
water filter cartridges.Lvyuan Water Purification Equipment is certified by various qualifications. We have advanced production technology and great production capability. water filter cartridges has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.
Company Advantages1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. uses environmentally-recyclable materials as much as possible for sintered stainless steel filter .
2. This product is highly regarded among customers, with high durability and high cost performance.
3. One can benefit from the portability of this product, and the ability to create an extremely environmentally-efficient, self-sufficient living space.
4. With such high efficiency, the product is therefore essential in many industries. It can ensure the necessary agility of processes and to produce as efficiently and profitably as possible at the same time.

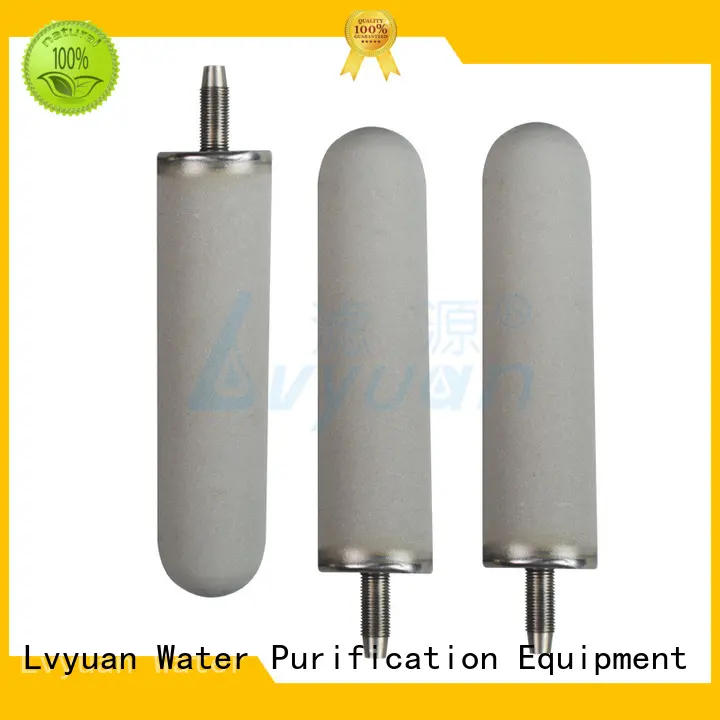

Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.
Product Feature
◪ Uniform structure, narrow pore size distribution, and high separation efficiency.
◪ High porosity, the resistance of filtration less, and the penetration efficiency is high.
◪ High temperature resistant, it can be normally used below in 280 degree.
◪ Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.
◪ No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.
◪ Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Strong antimicrobial ability, no microbes.
◪ The finished-products technology is good, the overlength of overall length can be reached to 1000mm.
◪ It can be on-line regeneration, easy to clean, and long service life.
Product Parameter
Fiter Cartridge dimensions |
Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
Diameter | Ø22, 30, 50, 60, 70, 80, 100, 120mm |
Other dimensions | Customized by customer’s request. |
Material of constructions |
Filter media | Titanium |
Connector type | Flat, Insert type, Thread type, Fin |
End caps | DOE, 215, 222, 226, M20, M30, M42 or as request. |
Sealing material | Silicone, NBR, EPDM, Fluoro rubber, etc |
Performance |
Removal rate | 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um |
Porosity | 28-50% |
Temperature Tolerance | ≦ 300℃ wet |
Permeability | 0.02-20L/cm2 min Pa |
Maximum Operating Pressure differential | 6.0 bar |
Flow rate (L/H) | 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600 |
◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)
Micron rate (μm) | 0.2 | 0.45 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
Flow rate (L/H) | 180 | 200 | 250 | 280 | 300 | 350 | 500 | 800 | 1000 |
Product Details
part.1
Various end caps. End caps can be customized as request.
part.2
Various dimensions. Dimension can be customized as request.
part.3
Wall thickness can be tailor made as request, 1mm, 2mm, 3mm, etc.
Product Applications
Food and beverage industry
Company Features1. As a reliable manufacturer and supplier, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has won trust in sintered stainless steel filter market.
2. The strict pursuit of Lvyuan to quality motivates us to utilize the advanced technology to produce
sintered filter cartridge .
3. Over the years, we have been dedicating to producing more environmental-friendly products. We are working on seeking recyclable or non-polluted materials that pose no negative impact on our environment. It is our aim to meet the social responsibility our company has. We will keep working to ensure that our products and services act in accordance with the principles of sustainability. We embrace sustainability all the time. We invest in automation technologies and continuously work to reduce our carbon footprint across the value chain. To achieve sustainability, we will adopt the latest green manufacturing technology. We believe the application of the technology will improve sustainability and efficiency no matter in production methods or resource use.
