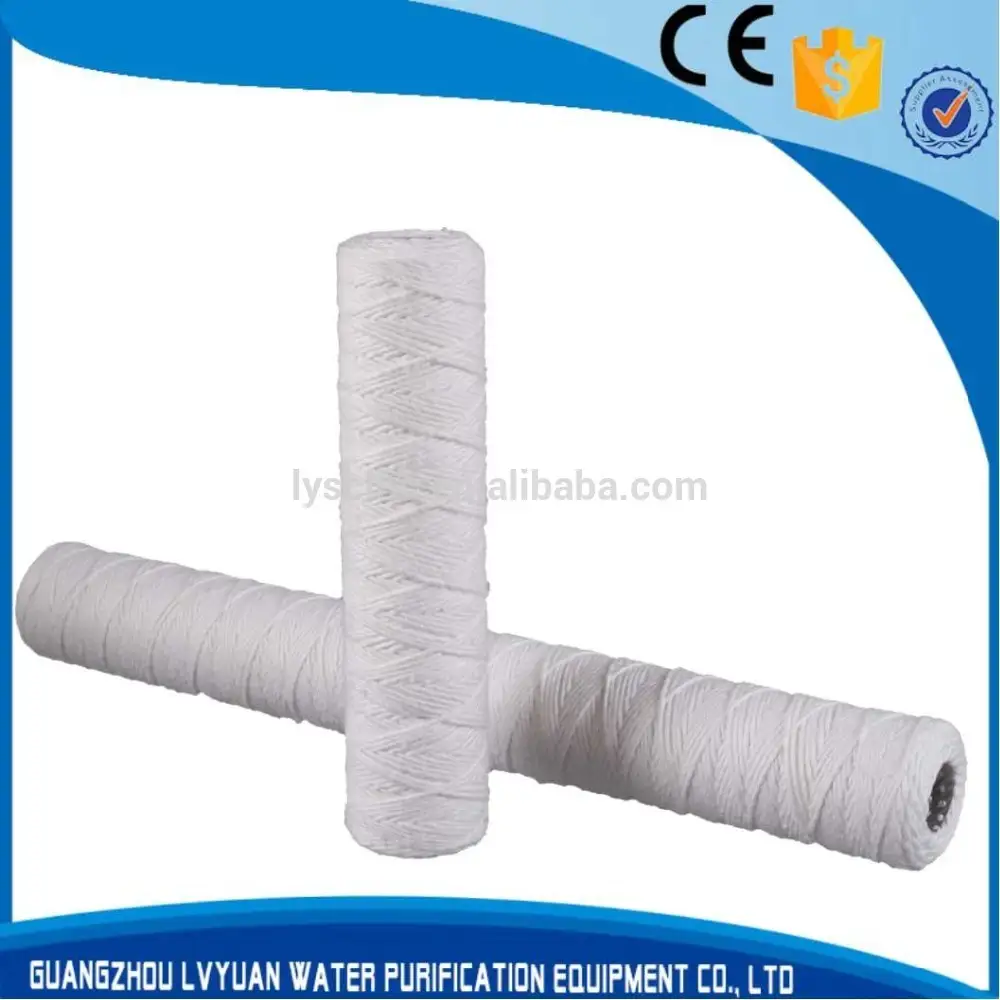

PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 1
PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 2
PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 1
PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 2

PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Model Number:
    LY-SW series
    Product name:
    cotton string wound filter cartridge
    Micron Rate:
    1, 3, 5, 10 micron filters cartridge
    Material:
    PP / Cotton / glass fiber string wound
    Inner core:
    PP or stainless steel
    Length:
    5", 10", 20", 30", 40", 50'' inch
    End Cap:
    DOE,222+Fin,222+Flat,226+Fin,226+Flat
    Gasket/O ring material:
    Silicon/EPDM/Viton
    Inner diameter:
    28, 30mm
    Outer diameter:
    60~62mm, Jumbo 110~115mm
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day cotton string wound filter cartridge

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters

     PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 3





    cotton string wound filter cartridge Introduction:

    String wound filter cartridge is made of the textile fabric string(polypropylene fibre, absorbent cotton, glass fiber) preciously winding onto the multi-hole axles. It is similar with PP filter, but its function is more stable. This kind of cartridge is use for industrial pre-filtering water treatment.

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 5





    cotton string wound filter cartridgeSpecifications:

    Product

    string wound filter cartridge

    Material

    Polypropylene, absorbent cotton, glass fiber

    Precision filtration

    1~100 micron

    Outer diametr

    60~62mm, Jumbo 110~115mm

    Inner diameter

    28mm or 30mm

    Code

    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat

    Seal Material

    EPDM, Silicone, Viton

    Length

    5'', 10'', 20'', 30'', 40'', 50''

    Max differential pressure

    2 kgf/cm²

    Max pressure

    4 kgf/cm²

    Max operating temperature

    PP with PP core:60 °C

    PP with SS core: 100

    Absorbent cotton with SS core:120

    Glass fibre with SS core: 180~300

    Operating differential pressure

    0.1kgf/cm2

    Brand

    LvYuan/OEM

    10''  PP

    cotton string wound filter cartridge Main Features:
    1. Fits all the standard housings
    2. Low pressure drop,high dirt holding capacity and long service life
    3. Loose outer layers and tight inner layers offers effective depth filtration
    4. Various filter media fit with various application


    cotton string wound filter cartridge Applications:
    1. pre-filter for drinking water treatment
    2. Acid Base liquid in Chemical process
    3. Food and Beverage industry
    4. Semiconductor
    5. Pharmaceuticals



    cotton string wound filter cartridge Accuracy & Water flow rate

    Accurancy(micron)

    1

    3

    5

    10

    20

    30

    50

    Maximum(L/min)

    9

    12

    18

    30

    37

    42

    44



    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 7

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 9

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 11PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 13



    Lvyuan filter cartridges family:

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 15

    Our Production Line including:

    1. All kinds of filter Cartridges

    2. Cartridge filter housings and bag filter housings

    3. RO, UF, MBR membranes

    4. Many kinds of Water treatment equipments

    5. Many kinds of Water purifiers and equipments, water softners.

    6. And more...

    PP yarn / Glass fiber / Cotton string wound filter cartridge in water filters 17

    Investing in this product will create a valuable resource for large production volumes, which in turn, will increase profitability. The graded gradient design helps it to avoid rapid clogging. There is less disappointment with the use of this product because there is high accuracy in the work done by this product. The graded gradient design helps it to avoid rapid clogging.
