Price 400 600 GPD RO System 800 GPD Reverse Osmosis drinking water filter Purifier
LvYuan commercial RO Water Purifier system uses advanced reverse osmosis technology and modular water purification process, which can be widely used in restaurant, school, kindergarten, coffee shop, hospital, beauty salon, factory, business building, family, and more.
Main Features:

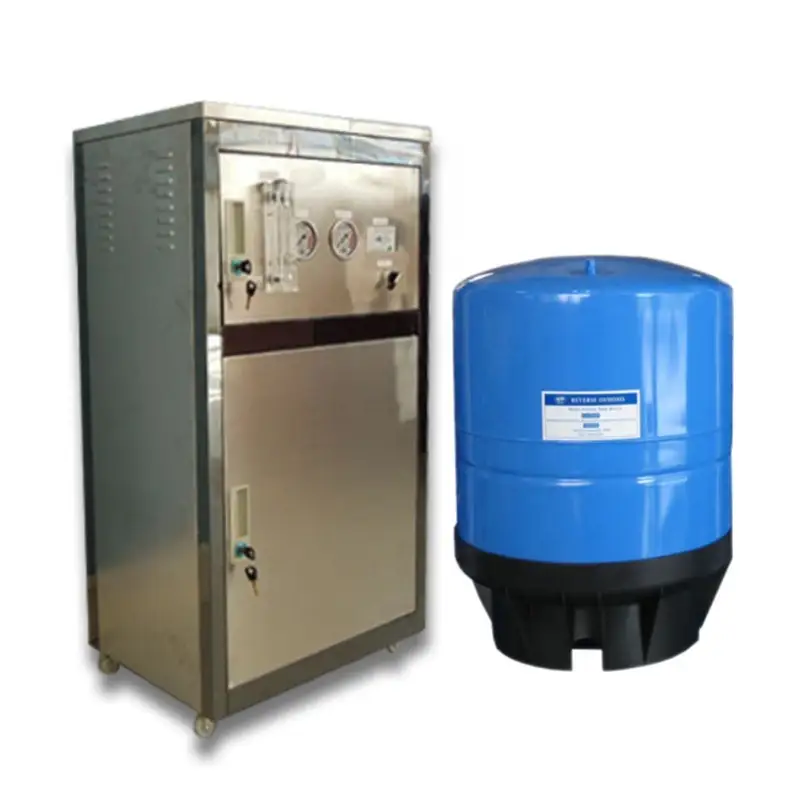

1. Luxury iron cabinet, easy moving with wheels.
2. Quick connect fittings. Easy installation and maintenance.
3. Auto-shut off feature when storage tank is full or low pressure for safe reliable operation.
5. Automatic flush feature for longer membrane life.
6. A Commercial RO water purification system can be connected wtih several Pipeline Drinking machines.
7. Can be put with UV sterilizer or add to 6/7/8 stages according to your demand.
5 stage: PP+UDF+CTO+RO+T33
6 stage: PP+UDF+CTO+RO+Mineral/Alkaline+T33
7 stage: PP+UDF+CTO+RO+Mineral/Alkaline+T33+UV sterilizer
8 stage: PP+UDF+CTO+Resin+RO+Mineral/Alkaline+T33+UV sterilizer Pure Water Supply Capacity |
100GPD | 380L/day | Available for 30 to 50 people drinking |
200GPD | 760L/day | Available for 100 to 150 people drinking |
300GPD | 1140L/day | Available for 150 to 200 people drinking |
400GPD | 1520L/day | Available for 200 to 300 people drinking |
600GPD | 2280L/day | Available for 300 to 450 people drinking |
800GPD | 3040L/day | Available for 400 to 600 people drinking |
1. Stainless iron cabinet+ TDS indicator.
2. 20'' PP, UDF, CTO, RO and T33 filter cartridges.
3. 200/300GPD: 1 Vontron RO membrane +1Grand forest pump.
400/600/800GPD: 2 Vontron RO membrane+ 2 Grand forest pump.
4. 11G iron tank/Trident faucet/Housing wrench/Line pipe/Instruction book/Accessories Bag.
5. With water flow meter, two pressure gauges, and ON/OFF button.
STAGE | Name | Specs | Function | Replacement Schedule |
1st | | 20 inch | Pp sediment filter 5 micron can effectively remove suspended solids in the liquid, particle, rust and other impunities. | 3 to 6 months |
2nd | UDF filter | 20 inch | UDF Granular Activated Carbon filter has a good adsorption, can effectively remove the residual chlorine in the water, smell, color and organic matter, etc. | 6 to 12 months |
3rd | CTO filter | 20 inch | CTO block carbon filter Deep water adsorption odor, color, resisdual chlorine, halogenates substances and harmful material such as organic matter, effectively improve the water taste. | 6 to 12 months |
4th | RO membrane | Reverse Osmosis | Ro membrane filter precision 0.0001 micron, remove heavy metal, bacteria, bad mineral substances, other dissolved matter and chemical drug, up to 99% contaminations. | 1 to 2 years |
5th | Post Activated Carbon | T33 | Post Activated carbon filter, used for adsorption of the impunities in the water, achieve the goal of improving taste. | 9 to 12 months |
6th | UV lamp | for option | UV sterilized lamp can quickly kill all sorts of bacteria, viruses and other microorganisms effectively. Through the photolysis, can effectively degrade the chlorine in the water. | more than 10,000Hour |
Name | Commercial Reverse Osmosis RO Water Purifier filter system | RO Membrane brands | Vontron, CSM, DOW |
Pump brands | E-CHEN / Grand Forest / Dengyuan | Iron Water Tank | 11G |
Ambient Temperature | 4 to 40°C | Water Capacity | 200 / 300 / 400 / 600/ 800 GPD |
Type of flush | automatic-flush / manual | Water supply | Municiple tap water |
Pumping Power | 96W | Model size | 550x400x1000mm |
Flow rate | 15.5 to 63L/h | Voltage | 110/220V, 50/60HZ |
Inlet water pressure | 0.4 to 0.7Mpa | Gross Weight | 55kg, including 11G tank |
Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, we devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has high level of innovation inclination and innovation management for
water filter cartridges. It will not impart taste, odor, or color to the filtered product.
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has established cartridge filter manufacturer production base to meet the steady increasing requirement of domestic water filter cartridges manufacturing industry. It will not impart taste, odor, or color to the filtered product.
