professional sintered powder metal filter manufacturer for sea water desalination
1. During the developing stage of Lvyuan sintered stainless steel filter elements , the design apartment strives to achieve an ultra slim design with mature screen touch technology. It features a high flow rate and stable filtering accuracy
2. Years of production and application have shown its sound prospects. It can provide accurate analysis and results for sensitive ion chromatography applications
3. This product achieves both rich functionality and superior quality. The graded gradient design helps it to avoid rapid clogging
4. Our quality check team strictly controls the quality of this product. It has a large effective filter area

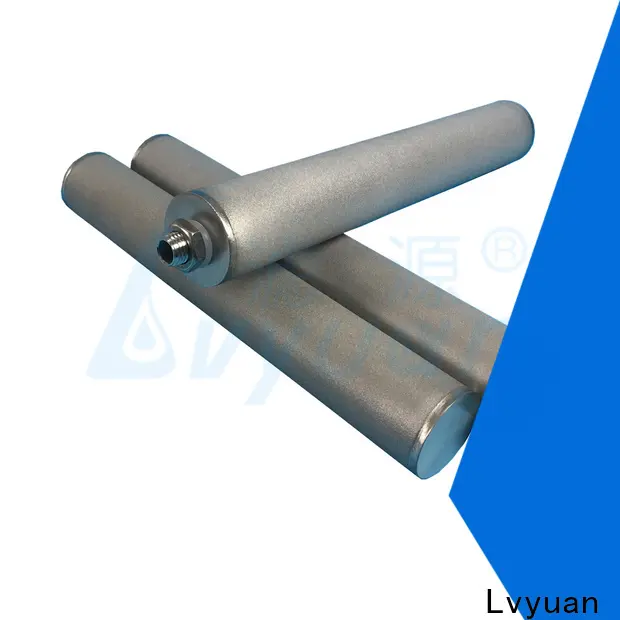

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is able to produce large quantities of sintered powder metal filter. Our factory has an extensive range of production facilities and quality control machinery. This allows our workers to carry out intensive quality control for our products.
2. All Lvyuan products meet the requirements of international standards.
3. Lvyuan has been absorbing talents for years. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will tap into the our whole strength to provide you with the best. Ask!
