ptfe pleated water filters replacement for organic solvents 1

ptfe pleated water filters replacement for organic solvents 2

ptfe pleated water filters replacement for organic solvents 3

ptfe pleated water filters replacement for organic solvents

Start Port:

Guangzhou

Production Capacity:

10000 units/Month

Place of Origin:

Guangdong, China

Payment:

T/T, Alibaba Trade Assurance

Model:

LY-HFPL

Delivery Time:

Within 7 working days

Certification:

ISO 9001

Brand:

OEM/Lvyuan

Inquiry

Material

Availability

OEM/ODM

Company Advantages
1. The lampshade of Lvyuan pleated type filter has undergone several fabrication processes, including CNC machining, metal forming, welding, spray painting and drying, and stamping. It will not impart taste, odor, or color to the filtered product
2. The product provides excellent performance to every application. It can provide accurate analysis and results for sensitive ion chromatography applications
3. It has good stiffness and rigidity. Under the effect of applied forces for which it is designed, there is no deformation beyond the specified limits. Customized end cap configurations are available to fit specific requirements

Hydrophobic 0.2 micron PTFE membrane pleated cartridge Air vent filter with 215 226 adaptor

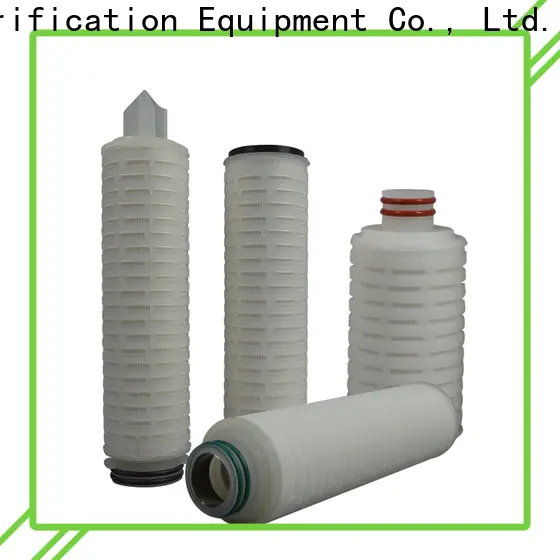

PTFE Pleated Filter Cartridge

Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.

Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.

ptfe pleated water filters replacement for organic solvents 4

ptfe pleated water filters replacement for organic solvents 5

Specification

Filter Media Option	PP	PES	PTFE	Nylon 6/66	PVDF
Length	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥5m²	≥0.72m²	≥0.6m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC
Max.back pressure	0.28Mpa at 60ºC	0.21Mpa at 25ºC	0.35Mpa at 60ºC	0.35Mpa at 25ºC	0.21Mpa at 25ºC
Max. working temperature	88ºC at 0.28Mpa, 60ºC at 0.42Mpa	140ºC at 0.28Mpa	142ºC at 0.276Mpa	49ºC at 0.21Mpa	80ºC at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

Application

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

Company Features
1. Our R&D team has a strong capability in creating new products. They will consider feedback from customers and their buying tendency before they start on inventing a new product. In this way, the products they developed are more targeted and worthy.
2. Our company bears social responsibilities. The energy we use at our various facilities is carefully controlled, and so are the emissions that we produce. Nothing that can be recycled is allowed to go to waste.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

5 inch 10 inch Replacement PP pleated water filter cartridge

China supplier pleated water filters 10 20 30 40 inch with sanitary filter housing for biochemistry industry

pp pleated water filters 0.1 0.2 0.45 0.65 1 3 5 micron for beverage filtration

High quality 10/20/30/40 inch doe pleated water filters with 0.45 microns PP pleated membrane

Guangzhou manufacturer water pleated water filters water filter system
