Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


ptfe pleated water filters replacement for sea water desalination 1
ptfe pleated water filters replacement for sea water desalination 2
ptfe pleated water filters replacement for sea water desalination 3
ptfe pleated water filters replacement for sea water desalination 4
ptfe pleated water filters replacement for sea water desalination 5
ptfe pleated water filters replacement for sea water desalination 6
ptfe pleated water filters replacement for sea water desalination 7
ptfe pleated water filters replacement for sea water desalination 8
ptfe pleated water filters replacement for sea water desalination 9
ptfe pleated water filters replacement for sea water desalination 10
ptfe pleated water filters replacement for sea water desalination 1
ptfe pleated water filters replacement for sea water desalination 2
ptfe pleated water filters replacement for sea water desalination 3
ptfe pleated water filters replacement for sea water desalination 4
ptfe pleated water filters replacement for sea water desalination 5
ptfe pleated water filters replacement for sea water desalination 6
ptfe pleated water filters replacement for sea water desalination 7
ptfe pleated water filters replacement for sea water desalination 8
ptfe pleated water filters replacement for sea water desalination 9
ptfe pleated water filters replacement for sea water desalination 10

ptfe pleated water filters replacement for sea water desalination

Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong ,China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PP
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Application Scope
cartridge housing manufacture produced by Lvyuan Water Purification Equipment is mostly used in the following aspects.Guided by the actual needs of customers, Lvyuan Water Purification Equipment provides comprehensive, perfect and quality solutions based on the benefit of customers.
  • ptfe pleated water filters replacement for sea water desalination 11
Product Comparison
cartridge housing manufacture is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.Lvyuan Water Purification Equipment 's cartridge housing manufacture has more advantages over similar products in terms of technology and quality.
  • ptfe pleated water filters replacement for sea water desalination 12
    ptfe pleated water filters replacement for sea water desalination 13
Company Advantages
1. The raw materials used in Lvyuan pleated water filters are guaranteed to meet the food grade standards. Especially the parts, which directly connect with the food, have to go through a quality safety test in the food industry.
2. The product is designed with great electromagnetic compatibility. The insulated housing functions to reduce electromagnetic disturbance to a certain level.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. always provides pleated water filters  with good price and thoughtful service.
ptfe pleated water filters replacement for sea water desalination 14

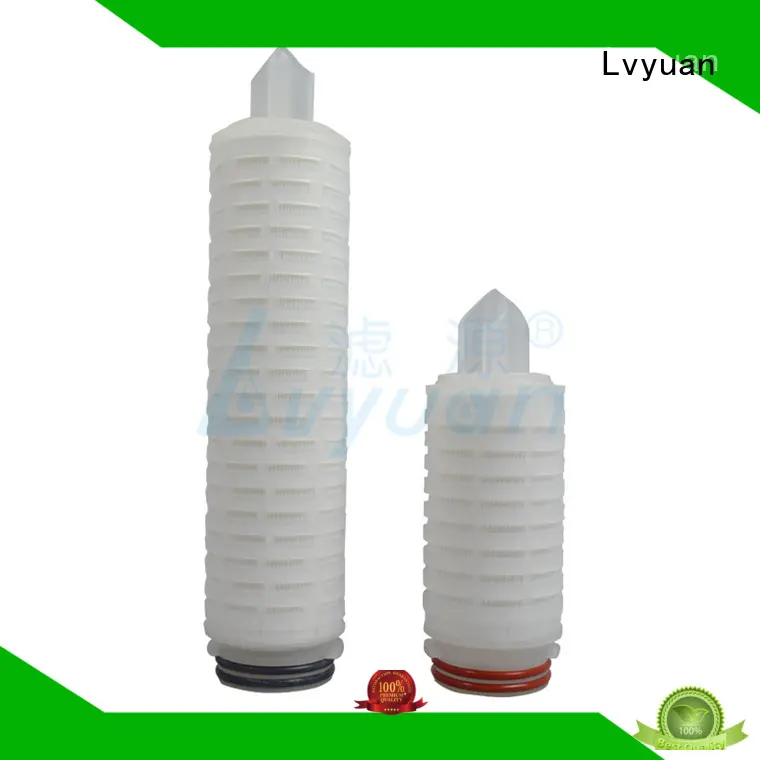

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.

They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.

The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.

This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.


  Product Feature

  • ◪    Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.

  • ◪   The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.

  • ◪   Large flow volume, low differential pressure and long service life.

  • ◪   Hydrophilic membrane with high flow.

  • ◪   Pleated design increased the filtration area for deep filtration.

  • ◪   Application of thermal-bonding technique, strong and no any pollution.

  • ◪   Full rage of removal microns ratings.

  • ◪   Graded pore density for high dirt holding capacity.

  • ◪   Common use in clean and sterilize with cabinet & steam with high pressure.


Product Parameter



Filter mediaPP/Polypropylene
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/NBR/Viton/Teflon
Outer diameter2.7'' , customized
Length9.75'', 10'',  20'', 30'', 40'' customized
End capDOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized.
Filtration area0.4-0.7m² (10'')
Max.operating temperature88℃, 0.28Mpa. 60℃, 0.42Mpa.
Micron rating(μm)0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60



Product Details



ptfe pleated water filters replacement for sea water desalination 15

part.1
Polypropylene end caps are thermally bonded to the media packs eliminating any need for adhesives which might react with or contaminate critical process fluids. Strong and no any pollution.
ptfe pleated water filters replacement for sea water desalination 16

part.2
High efficiency 100% all polypropylene cartridges with hard polypropylene support inner core and outer core. We provide customized sizes to meet different customers’ required.
ptfe pleated water filters replacement for sea water desalination 17

part.3
Different end caps to fits any filter housing and filtration industry, 100% all pure polypropylene pleated material without any organic binder.
ptfe pleated water filters replacement for sea water desalination 18

part.4
DOE 20 inch PP material pleated filter cartridge with EPDM gasket, graded-porosity multi-layer.



Product Applications



ptfe pleated water filters replacement for sea water desalination 19

Reverse osmosis water system prefiltration


ptfe pleated water filters replacement for sea water desalination 20
Filtration of beverage
ptfe pleated water filters replacement for sea water desalination 21
Filtration of mineral water
ptfe pleated water filters replacement for sea water desalination 22
Filtration of organic solvent & ink
ptfe pleated water filters replacement for sea water desalination 23
Filtration of pharmaceuticals
ptfe pleated water filters replacement for sea water desalination 24
Filtration of biological

Company Features
1. As the pioneer of the pleated water filters industry, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is being more diligent in the market.
2. We have won more and more customers' and partners' support and the selling channels are broadened. In countries like America, Australia, and Germany, our products sell well like hotcakes.
3. We operate our business according to the highest ethical standards and treat all of our co-workers, customers, and suppliers with honesty, integrity, and respect. The company actively adopts socially responsible policies. Urged by the moral imperative of taking care of society and the planet for our future generations, we eliminate any practices that will harm the society or environment. Please contact.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
