pvdf pleated filter replacement for food and beverage

Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong ,China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10 pcs
Model:
LY-PL-PES
Delivery Time:
Within 7 working days
Certification:
SGS
Brand:
OEM/Lvyuan
Inquiry
Enterprise Strength
  • Lvyuan Water Purification Equipment always puts customers and services in the first place. We constantly improve service while paying attention to product quality. Our goal is to provide high-quality products as well as thoughtful and professional services.
Company Advantages
1. Lvyuan 20 micron pleated water filter meets the basic technical specifications for safety of textiles. It is produced under strict quality scrutinization by the QC team in terms of its material ingredients, agents, and processing techniques.
2. The high quality is what makes customers keep purchasing the products.
3. pleated filter shows many new excellent characteristics, such as 20 micron pleated water filter .
4. This product has significant economic benefits and has broad application prospects.
pvdf pleated filter replacement for food and beverage 11

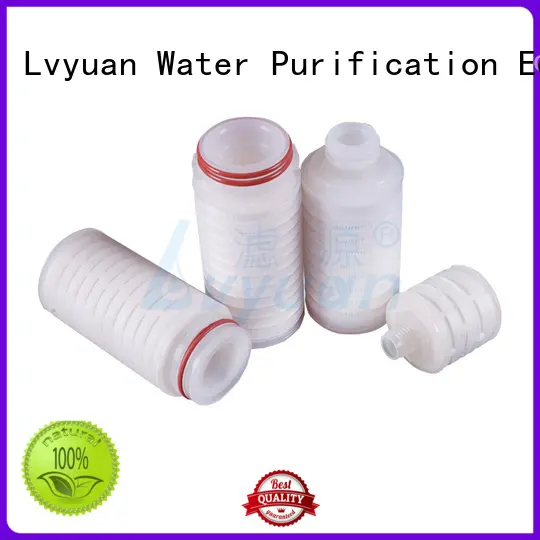

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.


The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates


Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.


  Product Feature

  • ◪   The product offers excellent retention efficiency and extended on-stream life making it an ideal filter for the clarification of beer, wine and bottled water.


  • ◪   Excellent performance of chemical compatibility.


  • ◪   High temperature resistance, Acid & Alkali resistance.


  • ◪   Hydrophilic membrane with high flow.


  • ◪   Non-fiber releasing, it meets the high standard pharmaceutics & food industry requirements.


  • ◪   PES pleated cartridge filters are integrity tested during production to assure performance and consistency.


Product Parameter



Product Name0.2 μm PES membrane pleated cartridge filter 5 inch
Filter mediaPES(Polyethersulfone)
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/VITON/PTFE/NBR/TEFLON
Outer diameter2.7'' (69mm)
Length5'', 9.75'', 10'', 20'', 30'', 40'', Customized
End cap215/222/226/FIN/DOE/SS
Filtration area0.6m²
Max.operating temperature≤140℃, 0.28Mpa
Micron rating(μm)0.1, 0.2, 0.45, 0.65



Product Details



pvdf pleated filter replacement for food and beverage 12

part.1
Single layer & double layer membrane is integrity tested during production to assure performance and consistency.
pvdf pleated filter replacement for food and beverage 13

part.2
At 0.1 μm to 0.65 μm absolute microns rate, high flow rate capacity reduces housing investment.
pvdf pleated filter replacement for food and beverage 14

part.3
Broad chemical compatibility and good heat-resistance, economic and imported PES membrane for your choice.
pvdf pleated filter replacement for food and beverage 15

part.4
Different cartridge filter end caps are optional. FIN/215/222/FLAT/226 and stainless steel.



Product Applications



pvdf pleated filter replacement for food and beverage 16

Medicine


pvdf pleated filter replacement for food and beverage 17
Biology Technology
pvdf pleated filter replacement for food and beverage 18
Ultra-pure water
pvdf pleated filter replacement for food and beverage 19
chemical raw materials filtration
pvdf pleated filter replacement for food and beverage 20
Beverage
pvdf pleated filter replacement for food and beverage 21
Beer
