  1. Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

n

Home  > Pleated filter cartridge  >  Sanitary Pleated membrane cartridge 0.22 0.45 micron Water Filter for drinking mineral bottle water purification

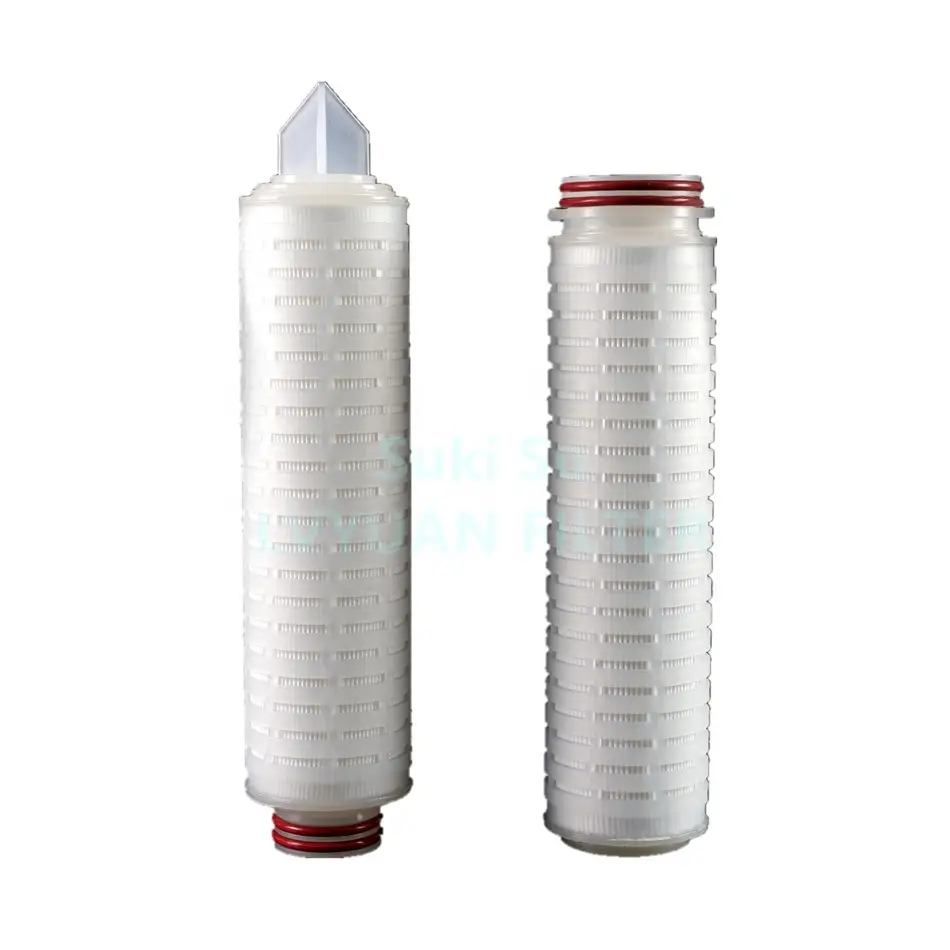

Sanitary Pleated membrane cartridge 0.22 0.45 micron Water Filter for drinking mineral bottle water purification

Sanitary Pleated membrane cartridge 0.22 0.45 micron Water Filter for drinking mineral bottle water purification

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
Pleated Filter Element
Weight:
depends
Size:
standard, customization
Power:
0
Warranty:
Unavailable
Product name:
0.45 micron water filter
Micron Rate:
0.1, 0.5, 1, 5, 10 ~60um
Pleated cartridge Material:
PP/PTFE/PES /Nylon 6 /PVDF
Length:
5", 10", 20", 30", 40" , OEM
Filter Media:
Polypropylene membrane
End Cap:
DOE,222+Fin,222+Flat,226+Fin,226+Flat
Gasket/O ring material:
Silicon/EPDM/NBR/Viton/Te-lfon
Usage:
liquid filter elements, water filter parts
Inner core:
PP / stainless steel
Certification:
SGS/ISO9001
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Product Description

Sanitary Pleated membrane cartridge 0.22 0.45 micron Water Filter for drinking mineral bottle water purification

Pleated membrane cartridge filters from Guangzhou Lvyuan Filter offer the ultimate in product safety and purity for absolute filtration with pore sizes from 0.05 to 100 micron (depending on the media). Available in membranes Polypropylene, PTFE, Polyethersulfone (PES), Nylon 66 and PVDF, Fiber Glass, Polyester for maximal chemical compatibility. We supply a wide selection of micron sizes and end cap configurations to choose from. Lvyuan pleated membrane filter cartridge are widely used for high purity, pre-filtration and final filtration applications.

The filtration media of PP micropore filter cartridge is super fine PP (Polypropylene) fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1 micron to 50 micron, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life features. The structure of PP has stable performance and wide chemical compatibility.

Glass Fiber Pleated Filter Cartridge
The absolute fiber glass pleated membrane cartridge has high efficiency of solid removal. The pleated filter cartridges provides long lifetime service because of its large filter area and depth filtration. Fiber glass filters are suitable to work in high temperature oily water, acid, solvents and diesel fuels. So it's widely used in oil and mine exploitation, chemical and process water treatment.

PTFE Pleated Filter Cartridge

Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.

Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.

PES Pleated Filter Cartridge

The filtration media of PES micropore filter cartridge is hydrophilic PES (polyethersulfone) membrane. High porosity (about >=80%) and geometrically unique pores of the PES filter cartridge contribute to high outputs for difficult-to-filter solutions. It is contructed of 2 materials PES and PP to meet high standard of chemical and pharmaceutical industry. All filter cartridges are manufactured and assembled in a clean room environment. 100% of the cartridges are integrity tested and flushed with EDI pure water. It is suitable for filtering weak acid/alkali based liquid and ultra pure water.

Nylon Pleated Filter Cartridge

The filtration media of nylon micrpore filter cartridge is constructed of nylon 6 or nylon 66 media and nonwoven support materials. The adaptors are thermally welded without any glue or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100% integrity tested and flushed with ultrapure water.

Specification
Filter Media Option
PP
PES
PTFE
Nylon 6/66
PVDF
Length
2.5'', 5, 10, 20, 30, 40 inch
2.5'', 5, 10, 20, 30, 40 inch
2.5'', 5, 10, 20, 30, 40 inch
2.5'', 5, 10, 20, 30, 40 inch
2.5'', 5, 10, 20, 30, 40 inch
Micron Rate
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
0.1, 0.2, 0.45, 0.65 micron
0.2, 0.45 micron
0.2, 0.45, 0.65, 1 micron
0.2, 0.45 micron
End Cap
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter
28mm
28mm
28mm
28mm
28mm
Outer Diameter
69mm (can be customized)
69mm (can be customized)
69mm (can be customized)
69mm (can be customized)
69mm (can be customized)
Gasket/O ring material
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area
0.4-0.7m²
≥5m²
≥0.72m²
≥0.6m²
≥0.72m²
Max.working pressure difference
0.42Mpa at 25ºC
0.42Mpa at 25ºC
0.42Mpa at 25ºC
0.42Mpa at 25ºC
0.42Mpa at 25ºC
Max.back pressure
0.28Mpa at 60ºC
0.21Mpa at 25ºC
0.35Mpa at 60ºC
0.35Mpa at 25ºC
0.21Mpa at 25ºC
Max. working temperature
88ºC at 0.28Mpa, 60ºC at 0.42Mpa
140ºC at 0.28Mpa
142ºC at 0.276Mpa
49ºC at 0.21Mpa
80ºC at 0.173Mpa
Sterilizing temperature
121℃, 30mins
121℃, 30mins
121℃, 30mins
121℃, 30mins
121℃, 30mins
Application

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

End Caps

DOE (double open end), code 0

222/Fin = code 7

226/Fin = code 8

222/Flat = code 3

226/Flat = code 6

215/Flat

222/Fin with stainless steel

222/Flat with stainless steel

226/Fin code 8

Screw type end cap

80mm outer diameter available

OEM dimension pleated filter cartridge

2.5'', 5'', mini size pleated filter cartridge, OEM

high flow pleated filter cartridge

Length can be customized
