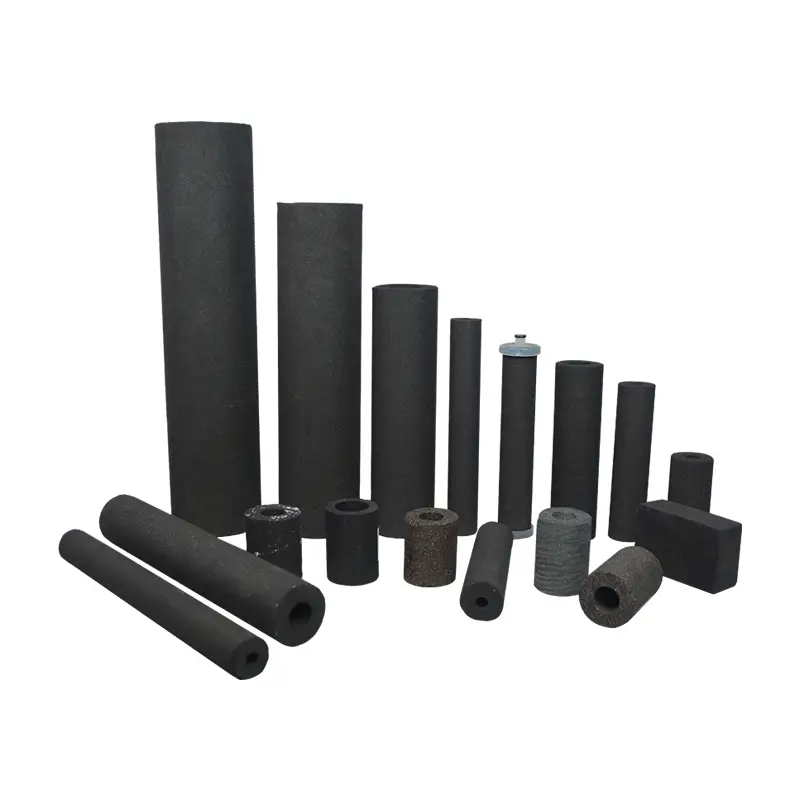

Sintered Activated Carbon Block filter cartridge
Product Feature
◪ Large filtration area, strong absorption capacity, high flow rate.
◪ High dirt holding capacity, low drop out, high filtration efficiency.
◪ Fits to all standard filter housings or sport bottles.
◪ High iodine value activated carbon materials
◪ Effectively remove bad smells, colors, chlorinated compounds, VOCS and THMS;
◪ Long service life
Product Parameter
| Fiter Cartridge dimensions | |
| Outer diameter | 14, 16, 19, 25, 28, 30, 35, 38, 40, 45, 46, 50, 53, 55, 60, 63, 64, 67, 70, 76, 90, 96.5, 103, 105, 121mm |
| Inner diameter | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50mm |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Coconut shell carbon, coal carbon |
| Enc caps | Polypropylene |
| Netting | Polypropylene |
| Gasket/oring material | Silicone, EPDM, NBR, Viton |
| Performance | |
| Removal rate | 5, 10, 25 um |
| Maximum Operating Temperature | ≦ 80℃ |
| Maximum Operating Pressure | 10 bar |
| Maximum differential pressure | 7 bar at 25℃ |
