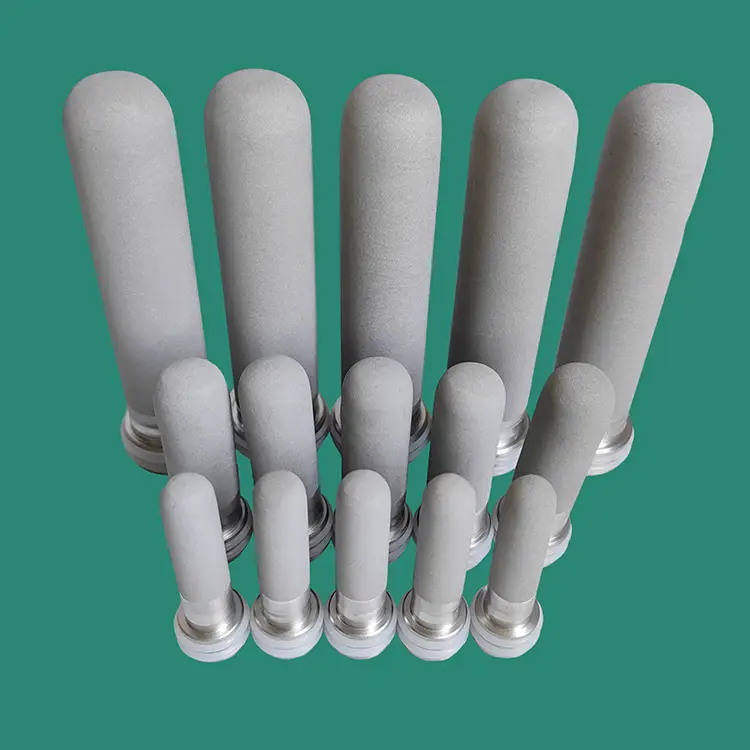

Sintered titanium powder filter element

Sintered titanium powder filter element

Media Material:

- Pure titanium powder, Grade 1 or Grade 2

Media Structure:

- Porous matrix created by compacting and sintering titanium powder

- Particle retention size: 1-10 microns

- Voids volume: 30-40%

- Pore size: 5-40 microns

- Apparent density: 1.0-1.3 g/cc

Operating Conditions:

- Maximum operating temperature: 80°C

- Maximum differential pressure: 8 bar

- Operating pH range: 2-13

- Flow rates: Up to 3000 L/min/m2

Dimensions:

- Outer diameter: 2.5"-24"

- Length: 5"-60"

- End caps: PVC, PP, stainless steel

Connections:

- Inlet/Outlet: Threaded, flanged, grooved

Additional Features:

- Welded wire mesh exterior support

- Gaskets - EPDM, Viton, PTFE

- Center pipe for backwash

Standards Compliance:

- NSF/ANSI Standard 61 certified

- AWWA B100-01 compliant
