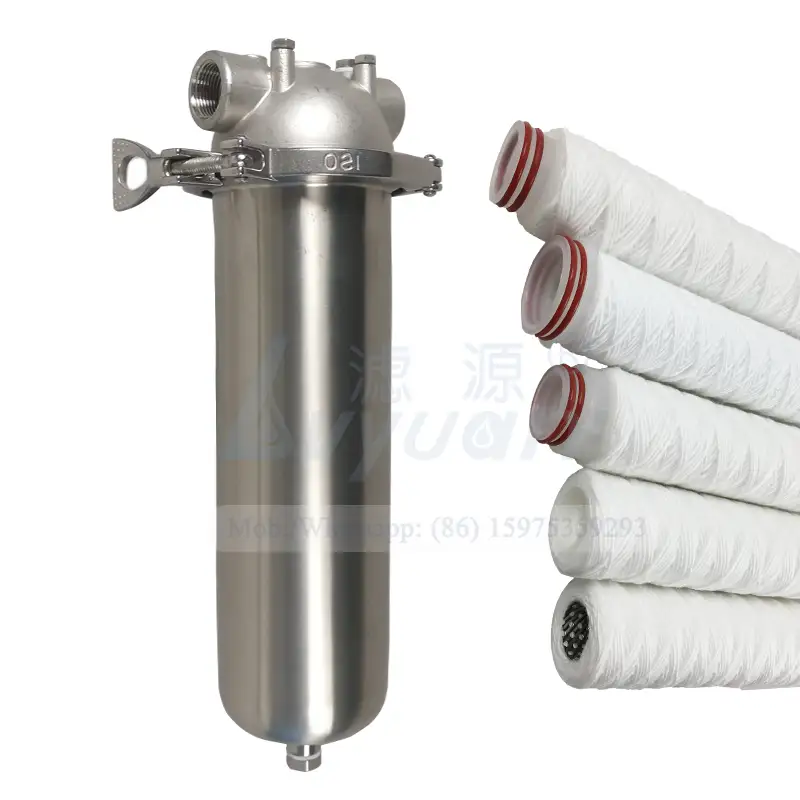

SOE 222 226 227 Fin 10/20/30/40/50 inch 20 microns filter string pp water filter cartridge for stainless steel housing filter

Product Parameter of String wound pp water filter cartridge

Product Structure of String wound pp water filter cartridge

Structural schematic

• Fiber filtration layer: The high-strength PP fiber has an average wire diameter, and the winding density can control the filtration accuracy.
• Porous skeleton: Adopting PP or stainless steel skeleton to firmly maintain the filter layer and ensure smooth flow.
• End face treatment: optional hot melt welding end caps and shrinkage side flow risks; The interface is compatible with multiple filter shell designs;
• Progressive filtration: The outer layer is loose, forming a deep and gradually tightening structure, and improving the pollutant retention capacity!

Product advantages

• Deep filtration: Multi layer gradually tightening structure, extending service life
• High flow rate: The wire wound structure filter has low resistance and high fluidity -Good chemical resistance: PP material is resistant to most acids, bases, and organic solvents
• Economical and durable: Low cost, high cost-effectiveness - Adjustable accuracy : meets different needs from coarse filtration to fine filtration
• Not easily lost: High quality fiber thread reduces the risk of fiber loss

Maintenance and replacement

-Regularly check the pressure difference, and replace the filter element when the pressure difference reaches the recommended value

-Prevent prolonged use in environments with excessive temperature and pressure

-When the machine is stopped or not needed for a long time, it is recommended to remove the filter element and store it dry

-Cannot be cleaned and reused repeatedly (PP fibers cannot be backflushed) -Adhere to the purity of the filtration system and prevent impurities from entering the contour of the filter element

Application of String wound pp water filter cartridge

- Industrial water: Boiler makeup water, pre filtration of cooling circulating water

- Food and Beverage: Drinking Water, Beverage Production -Chemical industry: Acid and alkali, oil liquid filtration

- Electronics: Preparation and pretreatment of ultrapure water - Coating Ink : Special, coating production filtration

- Pharmaceutical: Pre filtration of liquid medicine and pure water system - Domestic water : Intermediate water purifier and commercial water purifier settings

Customized service

-Filtering accuracy and diameter can be customized according to requirements

-The skeleton material can be selected from PP, stainless steel, or other materials

-Optional interfaces include DOE, 222/215 dual ring or other special interfaces

-Color identification can be customized according to grade or precision -Packaging can provide OEM branding services

FAQ (Frequently Asked Questions)

Q1: Can the PP wire wound filter be reused?
A1: It is not recommended to reuse. PP fiber wound filter cartridges are disposable consumables, and backwashing will damage the filtration structure.

Q2: How long is the filter replacement cycle?
A2: Depending on the actual water quality and filtration requirements, it usually takes 1-3 months or replacement when the pressure difference reaches 0.1~0.2MPa!

Q3: Can hot water be filtered?
A3: PP material is suitable for liquids with a temperature of ≤ 60 ℃. If higher temperature media needs to be filtered, it is recommended to use cotton thread or other high-temperature resistant materials;

**Q4: Is it suitable for filtering oily liquids? But it is recommended to maintain bag or other pre filtration formats to extend the lifespan of the filter element;

Q5: How to choose the appropriate filtering accuracy?
A5: Select based on the size of impurities in the liquid to be filtered, process requirements, and flow rate. The stronger the retention capacity, the greater the pressure difference.
