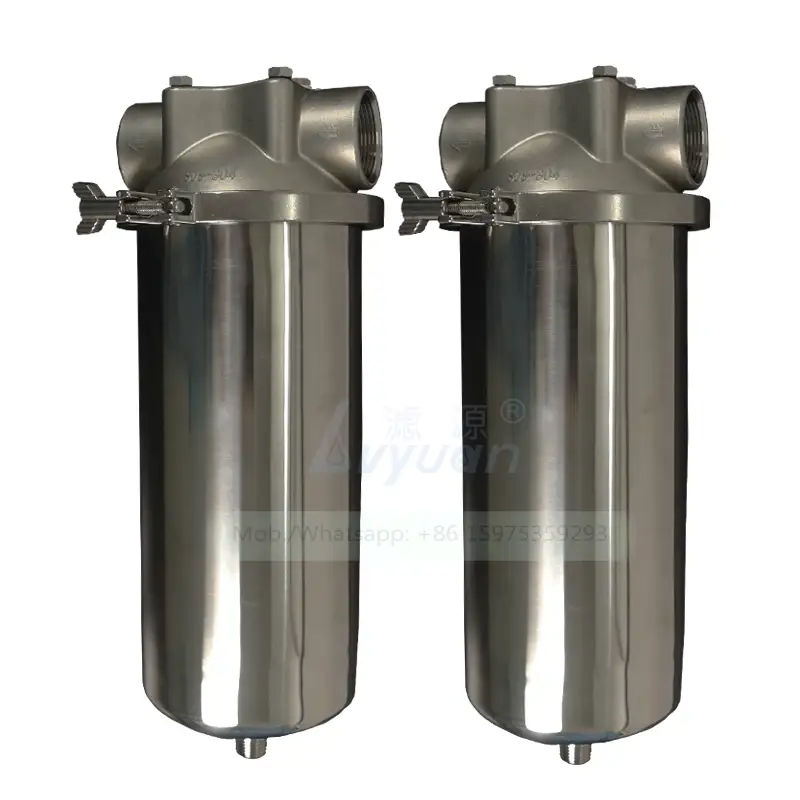

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron

Lvyuan Filter’s SS304 stainless steel cartridge filter housing is designed for various industrial and commercial applications. Constructed from durable 304-grade stainless steel, this stainless water filter housing is available in lengths of 10, 20, 30, and 40 inches which making it suitable for different flow requirements and installation spaces. Equipped with a microporous membrane water filter rated at 50 microns, the micron cartridge filter housing ensures efficient removal of particulates and impurities from water and other fluids.

Inquiry

Write a Review

Applicable Industries:: Lvyuan Filter stainless steel cartridge filter housing is suitable for hotels, garment shops, building material shops, manufacturing plant, machinery repair shops, food & beverage factory, farms, restaurant, home use, retail, food shop, printing shops, construction works , energy & mining, food & beverage shops, advertising company. The 50-micron filtration level effectively captures particles such as sediment, rust, and sand, providing clear and clean output.

Place of Origin:: Guangdong, China

Brand Name:: Customized

Material:: Customized, SS304 / SS316L

Weight:: Customized

Size:: Customized

Power:: 0

Warranty:: 1 Year

After-sales Service Provided:: Online support

Item Name:: SS304 10/20/30/40 inch stainless steel cartridge filter housing

Filter cartridge length:: 10" 20" 30" 40"

Cartridge filters quantity:: Single core

Surface treatment:: Polished & Sandblast

Seal o-ring:: Silastic/NBR/EPDM/Viton

Top cap installed type:: Clamp type

Inlet & Outlet type:: Internal thread

Connector type:: 222/226/DOE

Packaging method:: Export standard box

Packaging & Delivery

Selling Units:: Single item

Single package size:: 35X18X25 cm

Single gross weight:: 3.000 kg

Package Type:: SS304 10/20/30/40 inch stainless steel cartridge filter housing with microporous membrane water filter : Packaging: Export standard box/As required

Lead Time :

Quantity(Units)	1 - 10	11 - 100	>100
Est. Time(days)	5	10	To be negotiated

Product Description

Ss304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter

Lvyuan Filter stainless steel filter cartridge housing offers wide range of flow capacities & contaminant holding capacities. The SS micron filter housing offers excellent corrosion resistance and durability, ensuring long-lasting performance even in harsh environments. Its robust design allows for easy maintenance and cartridge replacement, minimizing downtime and operational costs.

Our metal filter housings are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, stainless steel filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures. This makes it ideal for use in water treatment plants, food and beverage processing, pharmaceuticals, and other industries requiring high-purity water.

With its reliable construction and effective filtration capabilities, the Lvyuan Filter SS304 micron filter housing provides a dependable solution for fluid.

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 13

Cartridge Filter Housing Stainless Steel

Model No.	Drain	Vent	In & Out	Body diameter	Thickness
LY-FL-SC-L1	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L2	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L3	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L4	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm

Features:

1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

3. Use the tap water pressure to provide power, no power consumption.

4. Wall-mounted, counter-top, very simple installation.

5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

6. The cartridge filter housing stainless steel to resistance to strong acid and alkali.

7. Low cost, it fits different kind of filter elements.

Structure:

1.Metal filter housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

2.Inside with the silicone gasket, it can be applied to cold & hot water temperature.

3.High pressure resistance, corrosion resistance.

Detailed Images

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 17

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 19

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 21

Stainless Steel Single Cartridge Filter Housing

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 25

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 27

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 29

Application

1. This stainless steel cartridge filter housing is widely used in UF, RO, EDI security filtration and the end-filtration.

2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

BOTTLED WATER

BEVERAGE & DRINKS

BIOLOGY TECHNOLOGY

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 37

RO WATER TREATMENT

CHEMICAL INDUSTRY

SS304 10/20/30/40 Inch Stainless Steel Cartridge Filter Housing With Microporous Membrane Water Filter 50 Micron 41

POWER PLANT
