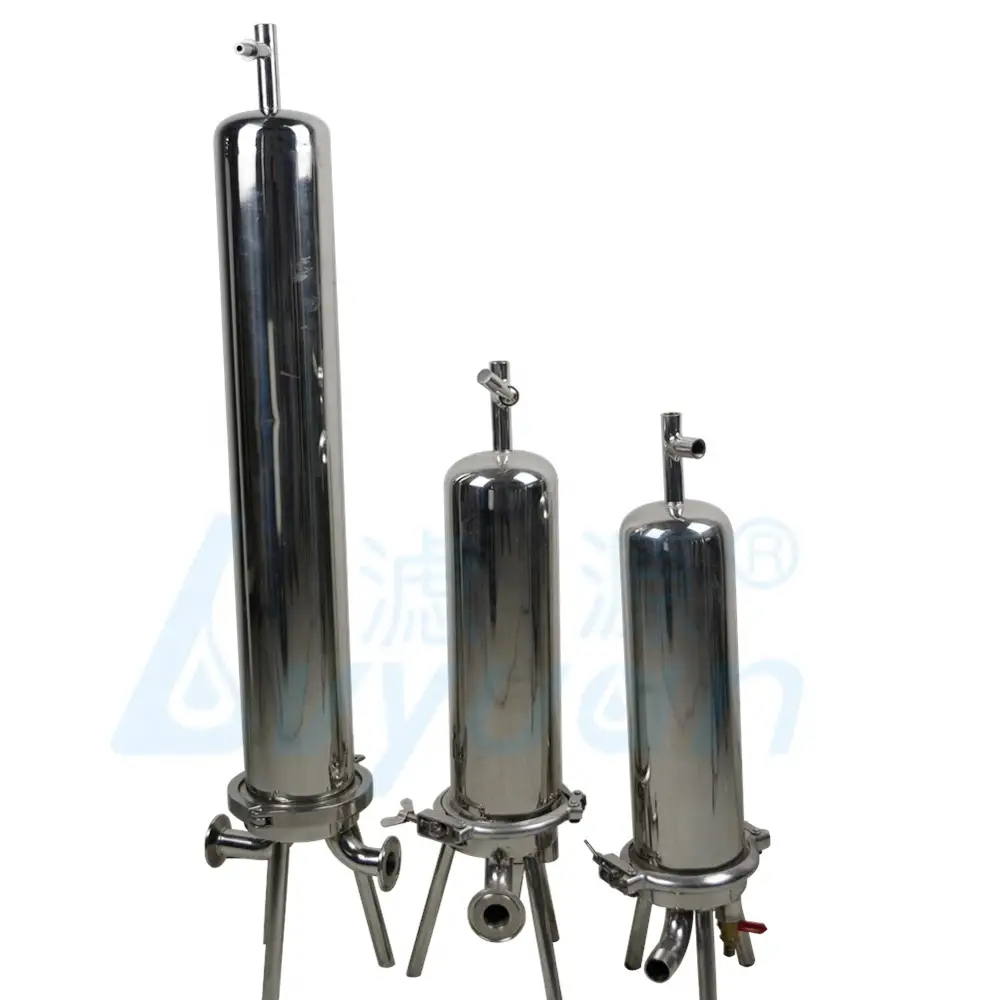

General Decription
It consists of a stainless steel housing and filter elements. The filter housing is made of high-quality stainless steel. It is quick-opening, and clamp type replacement filter doesn't require tools. It is convenient and quick.
The filter element adopts different materials such as pleated filter cartridge as the replacement cartridges to remove tiny suspended, bacteria and other impurities in the water, the filter medium enters the housing body from the outside, is filtered through the filter element, and the liquid is discharged from the bottom, and the filter residue is blown back or compressed by compressed air. The liquid is mixed and flown back.
stainless steel filter housing specification:
Material | SS304 or SS316 |
Cartridge length | 5, 10, 20, 30, 40 inch |
Cartridge core | 1 to 22 core |
Surface treatment | Polishing or matte treatment |
Closure | Clamp |
Inlet/outlet | Triclover is standard, others are optional |
Seal O-ring | Silicone (food grade) |
Drain/vent | 1/4 inch |
Working pressure | 0.1-0.6Mpa |
Working temperature | 5-150 degrees, depending on the material of pleated filter cartridge |
Thickness | 1.8mm or 2.0mm |
Body diameter | 102mm or 200mm |
Flow rate | 0.05-20 T/H |
We can accept different specification, Pl feel free to contact me to know about more details.
other types stainless steel filter housing specification :
Commonly used in fine chemicals, pharmaceutical, textile, chemical, metallurgy, machinery, electroplating and other industries.
single cartridge filter housing Bag filter housing multi-cartridge filter housing
Titanium filter cartridge string wound filter cartridge pp melt blown filter pleated filter cartridge
1. 10 years professional manufacturer experience.
We built a long-term relationship with our customers and earn a good reputation from our customers. Providing the best service as we can.
1. Accept customized length, Package, logo etc, as you offer your drawing and picture.
2. Sample order, accept MOQ=10.
3. We will reply to you in 24 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the lastest process.
5. Any doublt, pl contact with us, we will help you solve the problem asap.
6. pl feel free to contact me.
Packaging:
Products are backed by high quality carton/wooden case, suitable for long distance ocean freight transportation as well as climates and with good resistance to moisture and shock.
Delivery time:
1. If this kind of product is in stock, the product will be sent for your 1-7 days after payment.
2. If this kind of product is not in stock, the product will take about 7-25 days to produce.
Shipping:
Maritime, Railway, Air (DHL/UPS/TNT/FEDEX)
