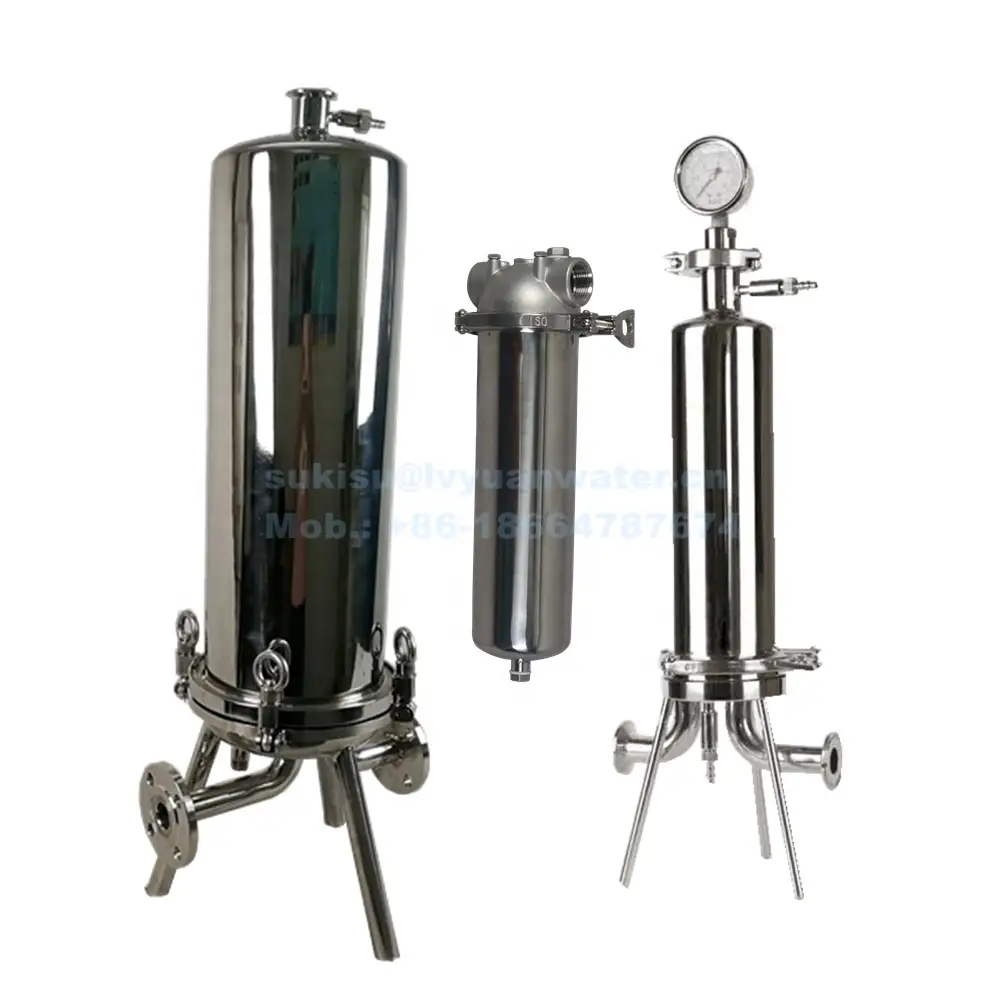

SS316 SS304 Sanitary Stainless steel cartridge filter housing with pressure gauge
SS316 SS304 Sanitary Stainless steel cartridge filter housing with pressure gauge
Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.
Different stainless steel multi-cartridges filter housing are customized, as long as you offer us picture and drawing.
The following SS stainless steel single cartridge filter housing can work for both DOE (double open end), 222, 226, code 3/6/7/8 filter cartridge fittings.
Single cartridge SS filter housing with drain port or without
Stainless steel single cartridge filter housing with tri-clamp sealing
Sanitary Stainless steel single cartridge filter housing
Stainless steel single cartridge filter housing with tri-clamp sealing and flange
Multi-cartridge stainless steel filter housing for pre-filtration FL01
Multi-cartridge SS filter housing for pre-water treatment FL06
Multi-core Stainless steel filter housing with flange FL03
Multi-core stainless steel filter housing for water treatment FL04
Multi-cartridge stainless steel filter housing with rocker arm FL05
Multi-core Stainless steel cartridge filter houisng FL06F
High Flow Stainless steel cartridge filter houisng for water purification
Sanitary Stainless steel filter housing for multi-cartridge SS316L SS304
Product name: | Stainless Steel cartridge filter housing | Material | SUS304, SUS316, SUS316L |
Cartridge core | single or multi-cartridge | Cartridge length | 2.5'', 5'', 10, 20 ,30 ,40, 50'' or OEM |
Cartridge Quantity | 1 ~ 160 pcs for option | Surface treatment | Polished or sandblast external |
Cartridge end cap | 226/222/215/DOE/Flat/Fin | Suitable filter cartridges | PP melt blown, Pleated filter, CTO activated carbon, Stainless steel mesh/pleated filter cartridges. |
Top Cap installed type | lifting bolts, flange, tri clamp | inlet/outlet connection | clamp, thread, flange, pogoda |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | Usage | Liquid, gas filtration |
Max working pressure | 100, 150Psi, OEM | Wall thickness | 1.2~6mm |
1. Industrial water treatment
2. Food & Beverage: bottled water, beers, wines, flavors, polishing, clarification
3. Chemicals & Petrochemicals: Solvents, solutions, chemical filtration, acids, bases
4. Health Care & Pharmaceuticals: Membrane filtration, ophthalmic, oral medicines, serum
5. Industrial processes: clean water, removal of carbon
6. Paints & Coatings: paints, coatings
7. Electronics: High purity water, photo resists
8. Cosmetics: Alcohols, creams, lotions, essential oils, mouthwashes
