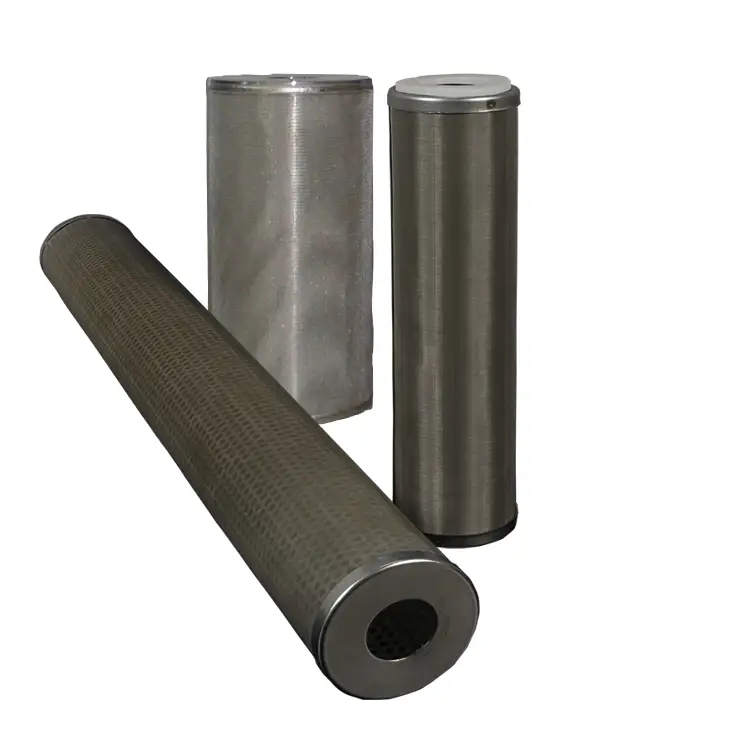

Stainless steel 50 microns material 10 20 30 40 inch sintered metal filter rod with screw connection M20 M30 M40
Sintered mesh filter series ----
Main material of the sintered mesh filter adopts standard five-layer sintered mesh,
which is made by using special process of lamination molding and vacuum sintering on five-layer
stainless wire cloth. The filter is characterized by strong corrosion resistance, fine penetrability, high strength,
easy washing and back washing, accurate filtration precision, clean filter material, solid mesh, etc.
Main connection modes are standard interface (such as 222, 220 and 226), fast interface connection, thread,
flange and pushing rod connection, special custom interface. The material has widely applied for the filtration
of polyester,water treatment, oil product, pharmacy, foods and beverage, chemical industry, chemical fiber
products and high-temperature air medium.
1.The standard five-layer mesh is composed of protective layer, precision control layer, dispersion layer,
two strengthening layers.
2.High intensity: as the five-layer wire mesh is sintered, it is characterized by extremely high machinery
strength and compressive strength.
3. High precision: It can realize uniform surface filtration for the material with 2-200um filtration granularit.
4. Heat resistance: It can be applied for the continuous filtration under -200 ~ 500 degree centigrade.
5.Washing performance: The surface filtration structure with fine back washing effect, the washing course
Filter cylinder series of high temperature dedusting sintered mesh ---
The traditional temperature dedusting method is to transfer the high temperature air into non-metal
filter bag through cooking system, however, the highest temperature of non-metal filter bag can only
260 degree centigrade, the high temperature resistance of sintered mesh filter cylinder that is made of multiple layer special stainless wire mesh will reach 600 degree centigrade, which overcomes the disavantages of traditional filter bag like non-fire resisting quality non renewability low intensity and bad
1.It can be customized according to dimensions of non-metal filter bag;
2.Fine permeability, low pressure drop, uniform and stable precison, fast filter cake formation process;
3.Fine regenerability, easy drop of back washing filter cake, fast formation speed, facilitated installation;
4.Fine regenerability, easy drop of back washing filter cake, fast formation speed, facilitated installation;
Filter cylinder series of water treatment equipment ---
This series product adopts punch plate composite sintered mesh as the filtration material,
reasonable arranges the mesh layer distribution and mesh number based on different operation conditions
and purposes. As the filter cylinder integrates the proof pressure framework with the sintered filter screen,
the product is superior to any other filtration materials in the respects of higher machinery strength, optimum
back washing effect and less pressure drop loss. Thus it has been widely applied for the intelligent washing
equipment, intelligent differential pressure water treatment equipment., food and beverage filtration equipment.
The MONEL.dual phase steel, titanium alloy and other punch plate composite sintered mesh filter cylinder
serial products manufactured by our company are highly praised and have been widely promoted and applied in fields of large scale sea water filtration treatment.
1.Punch plate material is 304 or 316L, the punch pore can be square or round;
2.It can be manufactured as different products according to different shape requirements;
3.It can be customized as different materials with different thicknesses as required by the client;
4.The MONEL, dual phase steel, titanium alloy and other punch plate composite sintered mesh can
be customized according to operation conditions.
Melt filter series ---
The melt filter is a folded stainless, whose main material adopts stainless fiber sintered felt and stainless wire
cloth. The melt filter of sintered felt possesses such advantages as high porosity, large filtration area, strong
discharge capacity, repeatability, stable shape, high shock resistant and alternating load capacity superior to
other metal filtration materials.
The melt filter of stainless wire cloth is characterized by high intensity, non-dropping ,easy cleaning, high
temperature resistance, beneficial application, etc. The appliance scope: it is mainly used for the filtration
of high polymer, drug, hydraulic oil, water treatment and high temperature air.
1.The melt filter is characterized by high porosity, fine permeability, small resistance,
low operation differential pressure;
2.The folded filter will realize large filtration area and much more discharge capacity;
3.High temperature and corrosion resistace, it is applicable to the high thick liquid filtration;
4.Complete stainless steel structure, strong chemical compatibility.
Main technical parameters:
1. Maximum operating temperature of filter: ≤500 degree centigrade.
2.Filtration precision: 1 - 200um;
3.Filtration precision: 1 - 200um;
4.Filter specification: 5 - 40 inches (it can be fabricated according to clients’ requirements);
5.Filter specification: 5 - 40 inches (it can be fabricated according to clients’ requirements);
Micro filter series ---
The micro filter takes the material sintered mesh as material, by passing the vaccum electron beam welding,
it can be applied to various servo-valve hydraulic oil or gas filtrations of hydraulic and gas control system.
By substituting the bronze powder sintered filter(the first generation valve filter), framework covered metal
mesh filter(the second generation valve filter) and import metal wire winding filter, the micro filter will make
servo system much more stable and reliable characterized by high intensity, non dropping off of wire, easy
cleaning, high temperature and corrosion resistance, facilitated installtion and beneficial application.
The product has been widely used for aviation and aerospace, hydraulic machinery, precision machine tool,
automatic control, coal machinery, medical treatment, etc.
1.High precision and fine intensity and rigidity;
2.Small resistance, large flow rate, high cleanliness;
3.Facilitate operation, stable filtration pore, long service period.
Power sintered filter series ---
The stainless powder sintered filter is made by using molding of stainless powder through high temperature
sintering, also it adopts unique technology and strictly control production technique(inc. Powder grain
distribution, molding and sintering). The filter is characterized by high machinery strehgth, high temperature and corrosion resistance, uniform aperture distribution, fine permeability, weldable and machinery processing. The powder grain size and technique conditions can be adjusted so as to produce the porous metal sintered filter with wider precision scope. Based on the advantages of porous metal powder sintered material, the product has been widely used for the gas liquid filtration and separation in the fields of catalyst recovery, chemical industry, medicine, beverage, food, metallurgy, petroleum, environmental protection, fermentation, etc.,
including the rough and fine filtration of liquor, oil, beverage, mineral water, the dedusting, degerming and
deoiling mist of various gas and steam; sound insulation, flame resistance, gas absorbing, etc.
1.Stable shape, high shock resistant and alternating load capacity are superior to other metal filtration
2. Stable permeability and separation effect;
3.Excellent machineray strength, applicable to the high temperature, high pressure and strong corrosivity;
4.Especially applicable to the hot gas filtration;
5.It can be manufactured as different products with different shapes and precisions,
also can be matched with various interfaces via welding process.
