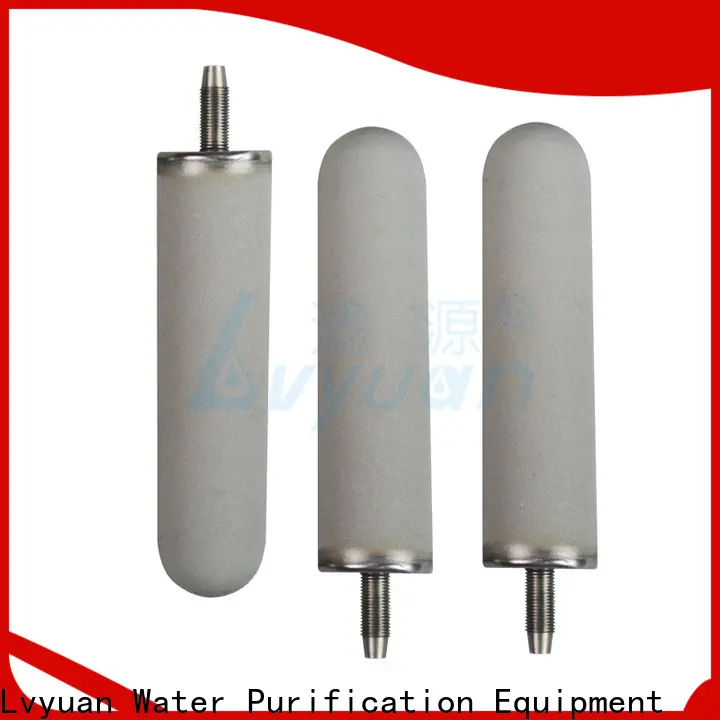

titanium sintered filter cartridge rod for food and beverage
1. Lvyuan sintered stainless steel filter elements is the outcome of high quality. It's manufactured strictly complying with the quality, safety and security standards in the mobile phone accessories industry. It does not secrete dissoluble material during operation
2. The major advantage of this product is that it greatly improves automation. It removes the need for too many operators to finish tasks.
3. The product is not affected by the weather condition. Unlike the traditional drying method including sun-dry and fire-dry which highly rely on good weather, this product can dehydrate food whenever and wherever. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
4. This product has good rebound performance. The cushioning pad used is very soft and elastic, offering support and buffering to the foot. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
5. The product is lightweight. It is made of extremely lightweight fabric and lightweight accessories such as zippers, and inner lining. It is manufactured from 100% Polypropylene construction
Product Feature
◪ Uniform structure, narrow pore size distribution, and high separation efficiency.
◪ High porosity, the resistance of filtration less, and the penetration efficiency is high.
◪ High temperature resistant, it can be normally used below in 280 degree.
◪ Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.
◪ Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Strong antimicrobial ability, no microbes.
◪ The finished-products technology is good, the overlength of overall length can be reached to 1000mm.
◪ It can be on-line regeneration, easy to clean, and long service life.
◪ No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm） |
| Diameter | Ø22, 30, 50, 60, 70, 80, 100, 120mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Titanium |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, 215, 222, 226, M20, M30, M42 or as request. |
| Sealing material | Silicone, NBR, EPDM, Fluoro rubber, etc |
| Performance | |
| Removal rate | 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um |
| Porosity | 28-50% |
| Temperature Tolerance | ≦ 300℃ wet |
| Permeability | 0.02-20L/cm2 min Pa |
| Maximum Operating Pressure differential | 6.0 bar |
| Flow rate (L/H) | 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600 |
◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)
| Micron rate (μm) | 0.2 | 0.45 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
| Flow rate (L/H) | 180 | 200 | 250 | 280 | 300 | 350 | 500 | 800 | 1000 |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. ranks top in the field of sintered filter cartridge . Our quality is our company name card in sintered powder ss filter industry, so we will do it best.
2. we have successfully developed a variety of sintered filter suppliers series.
3. Always aim high in quality of sintered ss filter . We insist on the principle of quality creating value. We will continue to use high-quality materials and sophisticated workmanship, and we will never hesitate to improve product quality to a higher level. Contact us!
