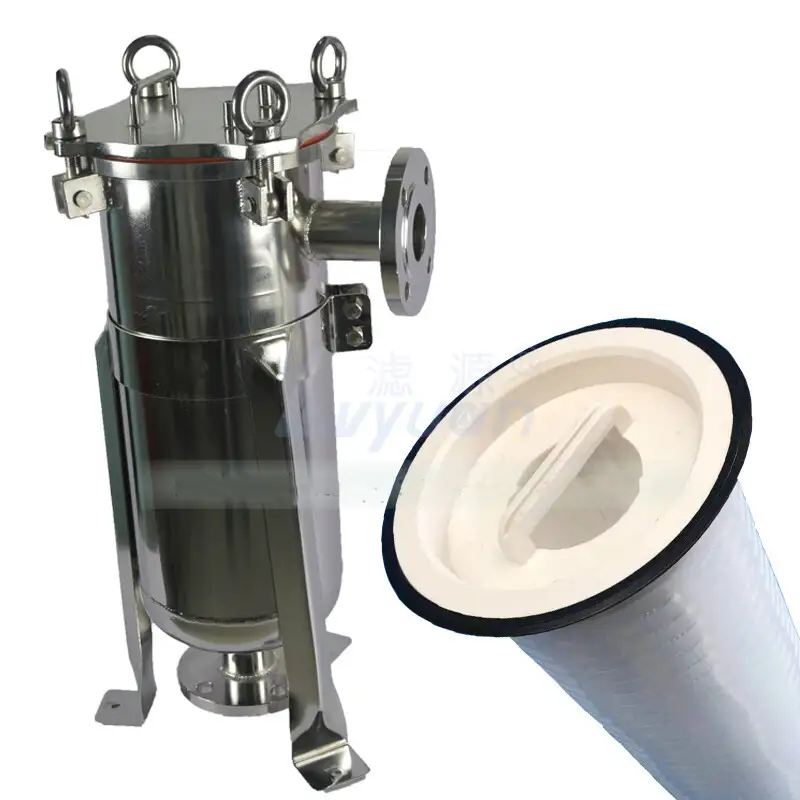

Water purification16 32 inch Stainless steel 304 316L pleated bag cartridge filter housing

Water purification16 32 inch Stainless steel 304 316L pleated bag cartridge filter housing

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Pleated filter cartridge
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
LVYUAN/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Name:
Stainless steel 304 316L pleated bag cartridge filter housing
Filter membrane material:
Polypropylene/Pleated
Length:
16"/32"/Customized
Conector material:
Polypropylene
Micron:
1 ~ 100um
O-ring material:
EPDM/Silicone/NBR
Bag cartridge filter size:
#1 #2
Sealing method:
All-in-One
Diameter:
6"/Customized
MOQ:
Currently no limited
Product Description
Product Name:
16 32 inch Stainless steel 304 316L pleated bag cartridge filter housing for water purification 5 microns cartridge bag filter
Bag filter cartridge type
Length:
16", 32"
OD:
6"
Filter membrane media:
Polypropylene PP pleaated
Seal Material:
EPDM, Silicone, NBR, Viton
Filter handle:
Adjustable Polypropylene PP
End cap material:
Polypropylene PP
Center core:
Polypropylene PP
Outer cage:
Polypropylene PP
Microns rating:
1um, 2um, 3um, 5um, 10um, 20um, 25um, 30um, 50um, 75um,100um
Operating pressure:
Max. operating temperature: 64℃;
Maximum pressure drop: 3.4bar, 60℃;
Recommended pressure for replaced filters: 2.4bar, 20℃
Service condictions:
3.5 bar at 65℃;
Applications:
RO water treatment prefiltration;
Electronic;
Oil & Gas liquid;
Petroleum industry.
MOQ
1pcs/Box, 4boxes/Carton

Water treatment single cartridge 10 microns pleated filter bag cartridge for bag cartridge filter housing

Guangzhou Lvyuan Water Purification Equipment Co., Ltd., we manufacture in a wide range of sizes and microns options filter elements and fits to different specification of filter housings. This type of pleated cartridge filter has superior flow characteristics with very low pressure drop compared to depth media of similar microns rating. It has large filtration area and design, allow the use of a reduced number of cartridges, high dirtholding capacity and long lifetime. Fully thermal welded construction can be used safely on high temperature oily water, solvents, acid and diesel.

Features:

1. To fit into different standard sizes stainless steel bag water filter cartridge housing.
2. High dirtholding capacity and high flow rate.
3. Large capacity filtration area and depth filtration provides a long lifetime of pleated cartridge water filter.
4. Low filter cartridges replacement cost, because of the large filter area to reduce labor costs to change.
5. The filter can be used safely on the liquid water, diesel, oily liquid, chemical solvents, acid and alkali.
Related Products

Pleated PP/PES/PTFE/PVDF/Nylon membrane filter for water/air filtration treatment:

Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

PTFE membrane pleated filter

Hydrophobic PTFE filter

The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.


Hydrophilic PTFE filter

The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.

Polyether Sulphone PES Pleated Filter

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.



Nylon N66 pleated membrane filter cartridge

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.

PVDF pleated cartridge filter

The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.

High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.

Jumbo pleated membrane filter cartridge

The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.

Product Name
Pleated PP/PES/PTFE/PVDF/Nylon membrane filter for water/air filtration treatment
Filtration media
PP/PTFE/PES/PVDF/Nylon
Support material
Polypropylene
Core & Structural components
Polypropylene
Inner core
PP/Stainless steel
Packing method
Polybag/Vacuum
Filtration precision
0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length
2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor
215/222/226/Fin/Flat/Thread/OEM
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area
≥0.6m²
Filter cartridge diameter
69mm
Max. working temperature
PP: 88℃,0.27Mpa
PTFE: 80℃, 0.173Mpa
PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa
Nylon: 49℃, 0.21Mpa
Max. positive differential pressure
0.42Mpa (25℃)
Max. back pressure differential pressure
0.28Mpa (25℃)
Sterilization conditions
121℃ 30min
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
Detailed Images

DOE opened pleated filter

The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.

OEM customized size filter

Different length & variety end cap are optional.

Different end caps pleated filter

SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

Application

RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION

BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Container for shipment

Container for shipment
