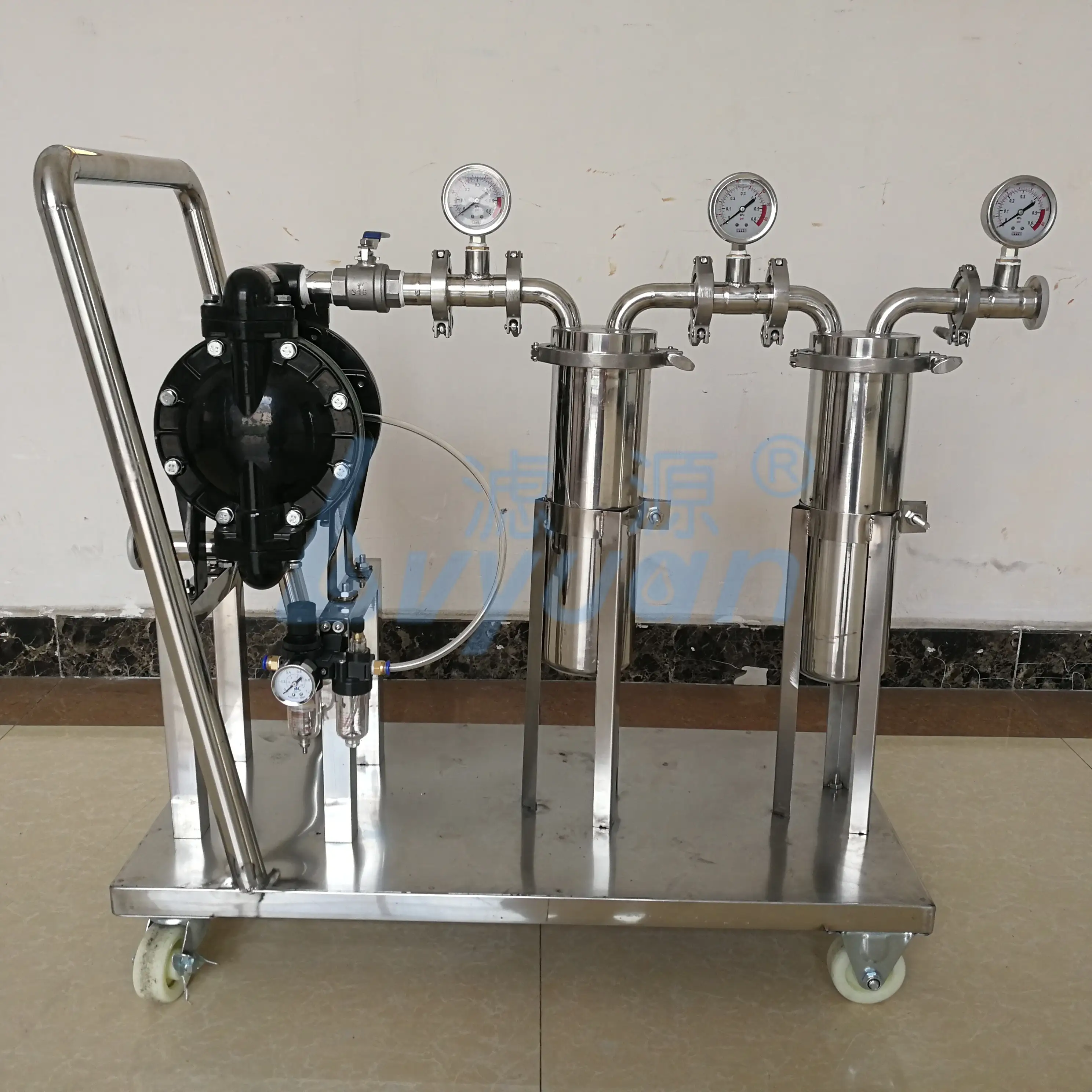

Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart

Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Warranty:
Unavailable
After-sales Service Provided:
Online support
Product name:
Stainless Steel Duplex Filter
housing material:
ss304, sus 316, ss316L
bag filters quantity:
Single or multi bags customized
Bag size:
180*450mm or 180*810mm, other
Inlet & Outlet type:
Flange/thread connection
Filter bag Material:
PP, PE, customized
Max. working pressure:
100/150/300 Psi
Usage:
liquid filtration
Bag number:
#1, 2, 3, 4, 5, OEM
housing clousure by:
quick bolt, clamp, flange
Supply Ability
Supply Ability:
1500 Piece/Pieces per Month Stainless Steel Filter
Product Description

Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart

Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.


Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.

Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley

OEM Wall-mounted pneumatic stainless steel bag filter system

Specifications
Product name:
Stainless Steel bag filter housing
Material
SUS304, SUS316, SUS316L
Bag quantity
single bag or multi-bag
Bag number
# 1, 2, 3, 4, 5 or OEM
Quantity option
1 to 18 bags
Surface treatment
Polished or sandblast external
Seal O-ring
silicon,NBR, EPDM, Viton, PTFE
In&outlet connection
V-clamp, thread or flange
Bag Filtration rate
0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron
Usage
Liquid filtration
Max working pressure
100, 150, 300Psi, OEM
Wall thickness
1.5~5mm

Filter Bag Material and Specification:

Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..

Type
Flow rate
(m³/H)
Filtration Area (㎡)
Size
(DiameterxLength)
#1
20
0.25
7''x16'' (180mmx410mm)
#2
40
0.50
7''x32'' (180mmx810mm)
#3
6
0.10
4''x8.25'' (102mmx210mm)
#4
12
0.15
4''x14'' (102mmx356mm)
#5
25
0.30
6 7/8''x34'' (175mmx870mm)

Stainless Steel Bag Filter Housing with all accessories

Application

1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents

Bag Filter housings

BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing

BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing

BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing

BFH-04 Muti-bags Stainless Steel Bag Filter Housing

Custom-made Small flow rate Stainless Steel single Bag Filter Housing

Custom-made Stainless Steel Single Bag Filer Housing

Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.

Single Bag filter housing Series, including Model BFL, BFH and BFC.

Multi bags filter housing, Model BFM multi-bag filter housing series:
