10 20 30 40 inch Tiantinum water filter element / sintered titanium filter

10 20 30 40 inch Tiantinum water filter element / sintered titanium filter

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
China
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
sintered titanium filter
Material:
pure titanium
Interface:
222,226,227,Flat,M20,M30,M42
Outer Diameter:
60mm
Length:
5 ~ 40 inch
Micron:
0.1 ~ 100 micron
Porosity:
28~50%
Temperature Tolerance:
≤300℃(Wet)
Usage:
filter mineral water, wine, ozone, ect
Way of wash:
Well-flushing & Back-flushing

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
1.000 kg
Package Type:
10 20 30 40 inch Tiantinum water filter elementsintered titanium filter Packaging size: Single Packaging 1PC/Box 112*41*41cm/CTN
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 10 To be negotiated

10 20 30 40 inch Tiantinum water filter element / sintered titanium filter







Product Description

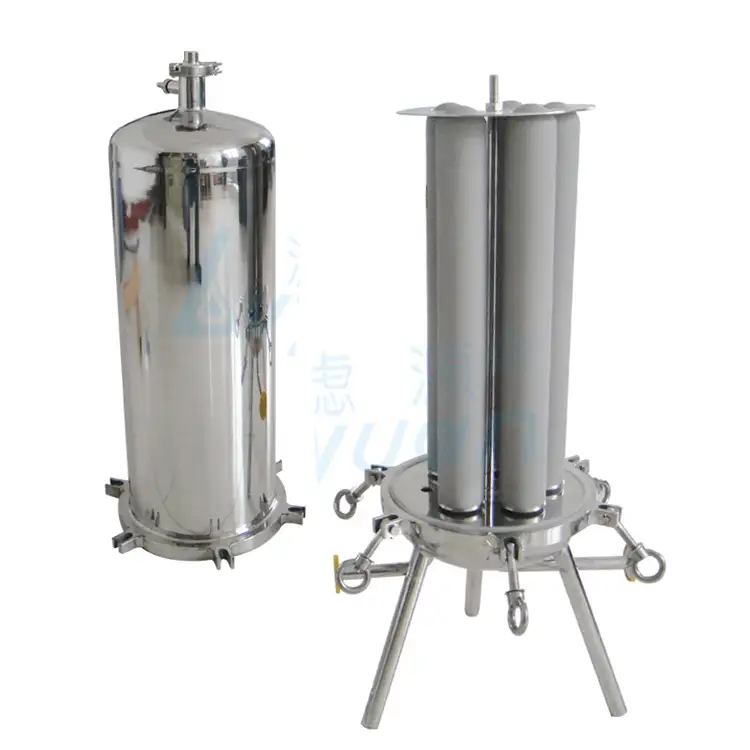

10 20 30 40 inch Tiantinum water filter element is based on pure titanium

powder(Purity 99.7% or higher) as the main raw material, through high heating sintering.

The uniform structure, small pore density is high, the filtration resistance, good permeability;

Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant

characteristics. It can be used for solid liquid, gas seperationand purification.

The service performance is excellent, but the suction filter and press filter,

it will not form secondary pollution, simple operation, it can be on-line regeneration,

easy to clean, and long service life.











Features

 1.Uniform structure, narrow pore size distribution, and high separation efficiency.

2.High porosity, the resistance of filtration less, and the penetration efficiency is high.

3.High temperature resistant, it can be normally used below in 280 degree.

4.Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.

5.No particles fall off, it will not make the concentrate form secondary pollution, it conforms to the food hygiene and pharmaceutical GMP requirements.

6.Good mechanical performance, it can have the sunction filtration and press-filtration, simple operation.

7.Low differential pressure, the area of cover is small, and the large water flow rate.

8.Strong antimicrobial ability, no microbes.

9.The finished products technology is good, the overlength of overall length can be reached

to 1000mm.

10.It can be on-line regeneration, easy to clean, and long service life.







Parameter




                         Parameter of Titanium Water Filter Cartridge

Filtration Micron

0.2 - 100um

Length

5(125mm)  10(250mm)  20(500mm)

30(750mm)  40(1000mm)

Outer Diameter

50mm    60mm   70mm

Connector Type

Flat type;215/222/226/M20/M30/M42

Sealing Material

Silicone rubber; NBR; EPDM; Fluoro rubber

Porosity

28 - 50%

Outer-diameter

60mm   70mm

Temperature Tolerance

≤300℃

Maximum Operating Pressure Differential

0.6Mpa

Diameter

Φ22mm  Φ30mm  Φ50mm Φ60mm  Φ80mm  Φ100mm  Φ120mm

Flow Rate    (L/H)

180  200  250 280  300  350  500 8001000 1500 1600





Customized filters







Connector type







Application Fields

♦Pharmaceutical Industry

Active pharmaceutical ingredients, such as solvent solution, decarburization filtration

of material filtering.

Pharmaceutical industry infusion, injection, oral liquid concentration with link of the decarburization

filtration and security filtration for the dilute with terminal filter.

Filtrating the impurities in the active pharmaceutical ingredients processing,

also the decarburization filtration of material and precision filtration.





♦Chemical industry

The liquid of chemical industry products and raw materials, and the decarburization

filtration of material and precision filtration of pharmaceutical intermediates.

Superfine crystal,the filter recycling of the catalyst, the precision filtration and heat

conduction oil system after absorption of resin.Removing the impurities in the materials,

and the catalytic gas purification, etc.





♦Electronic Industry:

Electronic, Microelectronics, semiconductor industrial waater filter, etc.





♦Water Treatment Industry

It can used in the security filter SS housing as the pre-treatment for UF, RO, EDI system,

the filtration after the ozone sterilization and the ozone after aeration.



The oiled field water filter,and the security filter SS housing before the reverse osmosis in

desalination field.





♦Sewage Treatment

The micropore pure titanium aerator compared with the normal aerator, the energy consumption

of the micropore pure titanium aerator is lower 40% than the normal aerator, the sewage treatment

is nearly doubled.

The service is long, it can be used for 10 years, especially for the urban sewage,

large-scale water plant expansion, and the old remould of the water aeration tank.





♦Food Industry

The beverage, wine, beer, vegetable oil, soy sauce, vinegar clarification filtration.





♦Oil refining industry

The oiled field water filter,and the security filter SS housing before the reverse osmosis

in desalination field.





♦Other Industry

The high temperature of dye industry decarburization, the filtration of clay taking off.



The gas purification of steam, the air compressed, and the catalytic gas purification.











                    Pls feel free to contact us for more details or quotes

                           if you are interested in us or our products.    ^_^
