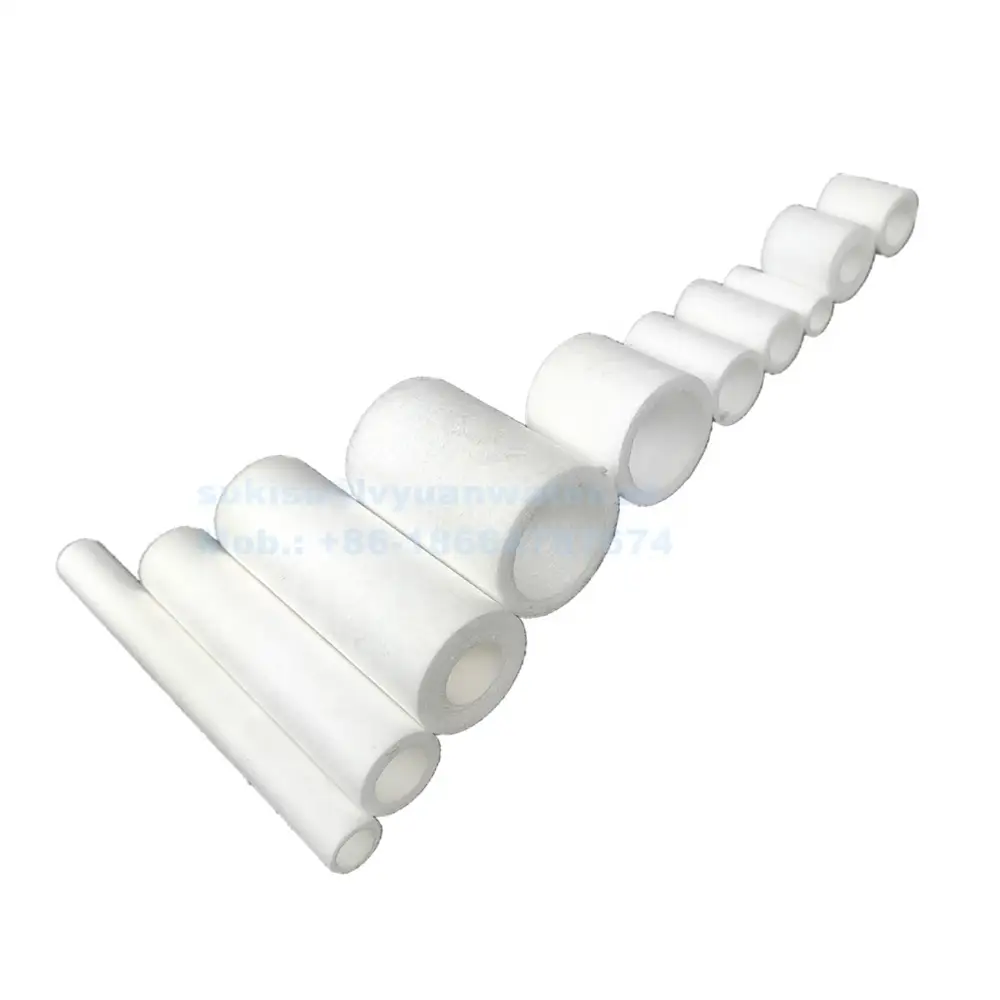

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. It works an important role in the pre-filtration water treatment process.
We can customs-made PP or Nylon melt blown filter cartridges in all dimension (Length, Outer diameter, inner diameter) with 1 layer to more than 3 layers and multi-layers. Special PP/Nylon melt blown cartridge filters with varied specifications like groove, orange peel, pressure point, flat and embossing surface finish or equipped with different DOE or SOE end caps are also available.
All dimension can be custom-made. In order to work out the prices for you, please kindly advise your specification requirement and quantity.
Groove surface PP sediment filter cartridge
Flat surface PP sediment filter cartridge
Orange peel surface PP filter cartridge
Embossing surface PP sediment cartridge
Pressure point surface PP sediment cartridge
215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.
10x4.5'' 20x4.5'' Full-Flow BB Jumbo Melt Blown Cartridge
PP melt blown filter cartridge with 1 2 3 layers for option
Customize PP core or stainless steel shell/core pp filter cartridge
PP shell Polypropylene melt blown filter cartridge
OEM Various size PP/Nylon melt blown filter cartridge for water/air filtration
Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters
PP Melt Blown sediment filter cartridge
5, 10, 20, 30, 40", 50'', 60'' inch or customized
1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron
DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin
28~30mm, or OEM
60~65mm, Jumbo 110~115mm, or OEM
Gasket/O ring material
100% pure Polypropylene or Nylon
Groove, Pressure points, Flat, Embrossing, Orange peel
None, PP or stainless steel
Flat or insert
Max. Operating Pressure Difference:
• 80°C: 1.2kg/cm2
• 60°C: 2.1kg/cm2
• 20°C: 4.2kg/cm2
Max. Operating Temperature
Recommended Change-out Pressure Difference
2.1 bar (kg/cm2)
100- 120g/10" (It can be customized)
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
