30'' inch titanium metal porous water filter cartridge with 5 micron and thread interface

30'' inch titanium metal porous water filter cartridge with 5 micron and thread interface

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Warranty:
Unavailable
After-sales Service Provided:
Online support
Product name:
titanium metal porous water filter cartridge with 5 micron
Material:
Titanium Power
Length:
5, 10, 20, 30, 40 inch
Outer Diameter:
50/60/70mm (Customized)
Filtration Rate:
0.1, 0.22, 0.45,10-80 Micron
Interface:
M20, M30, M36, M42, 215, 222, 226, DOE
Color:
Grey
Feature:
Washable
Gasket:
Silicon/EPDM/Viton
Usage:
Petrochemical/liquid drug manufacturing and other industries
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week

titanium metal porous water filter cartridge with 5 micron and thread interface

Product pictures



Product Description

Introuduction

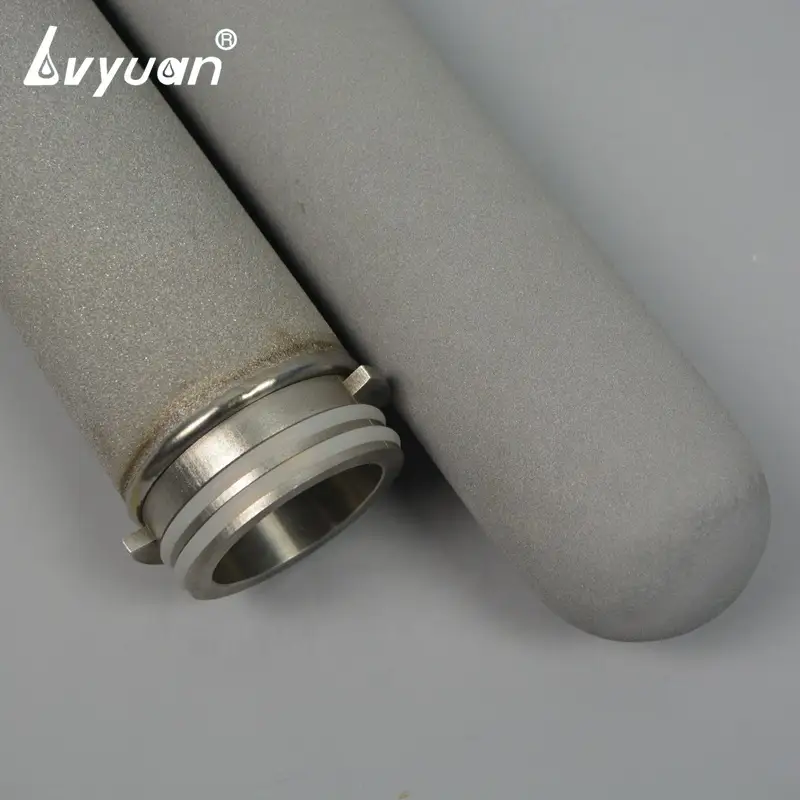

Titanium Filter Cartridge has lots of open pores which is high porosity, uniform aperture, low filter resistance and superior permeability.  Because of outstanding thermostability, corrosion resistance, long operating life and recycle, Titanium Filter Cartridge has been used in different filter and separate of gas and liquid.

Specifications

Filter mediaTitanium
Filter precision0.1-80micron
Length5'',10'',20'',30'',40"
Sealing materialSilicon rubber,NBR,EPDM,FKM
Cartridge outer diameter50/60/70mm
InterfaceM20,M30,M36,M42,215,222,226,DOE
Thermostability≤300'C
Max. working pressure0.6MPA
Porosity28-50%
Special requirementOn customer's requirement



Pure water flow rate reference table: the initial value of 10''cartridge L/H (P=0.2 MPa, 1cP, 25°C)



Precision

0.2

0.45

1

2

3

5

10

20

30

50

80

Capacity

180

200

250

280

300

350

500

800

1000

1500

1600



Features
1. Uniform structure, narrow pore size distribution and high separation efficiency.
2. High porosity, low filtration resistance and high permeation efficiency.
3. High temperature, generally about 280 degrees in normal use.
4. Chemical stability, acid corrosion, with antioxidant properties.
5. No particles off, do not make the liquid form a secondary pollution, in line with food hygiene and pharmaceutical GHP requirements.
6. Mechanical properties, and can be filter press filter, simple operation.
7. Low pressure, small footprint, large flow.
8. Strong anti-microbial capacity, does not work with micro-organisms.
9. Forming process is good, the whole no welding length of up to 1000 mm.
10. Can be online regeneration, easy to clean, long life (usually several times the membrane filter).

Applications
1. Petrochemical, oilfield oil sands separation
2. Machinery, ship, fuel, lubricating oil, hydraulic start oil filter
3. Chemical industry, chemical plants process
4. Liquid drug manufacturing separation and filtration
5. High temperature gas dust removal, filter food, medical filter
6. Water treatment and dstributin, gas distrbtion system and the fluidized
