    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    Turkey, none
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Material:
    as request
    Weight:
    depends on actual product
    Size:
    customization
    Power:
    0
    Warranty:
    Unavailable
    Name:
    titanium filter cartridge
    Micron Rate:
    0.1, 0.22, 0.45 1 to 60 micron
    Length:
    5", 10", 20", 30", 40", OEM
    Diameter:
    50, 60, 70, 80, 100mm
    Connection type:
    DOE,SOE, Screw type, 222, 226
    Usage:
    Liquid Filtration
    Raw Material:
    Pure titanium 99.6%
    Way of wash:
    Back washing
    Certification:
    SGS, ISO9001
    Filter housing:
    available for option

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    20X20X58 cm
    Single gross weight:
    6.000 kg
    Package Type:
    2.5x10 4.5x10 20 inch Slim BB jumbo 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element Packaging size: Single Packaging 1pc/Box Best unit price and shipping cost are subject to quantity changes. Please feel free to send inquiry for the best quotation.
    Lead Time :
    Quantity(Pieces) 1 - 100 >100
    Est. Time(days) 15 To be negotiated

    2.5x10 4.5x10 20 inch Slim BB jumbo 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element

    Product Description
    4.5x10 20 inch BB big blue 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element 7

    DOE/Thread/Clamp/222/226 connection Sinter Porous Titanium Rod Water Filter for cartridge element 10/20/30/40 inch

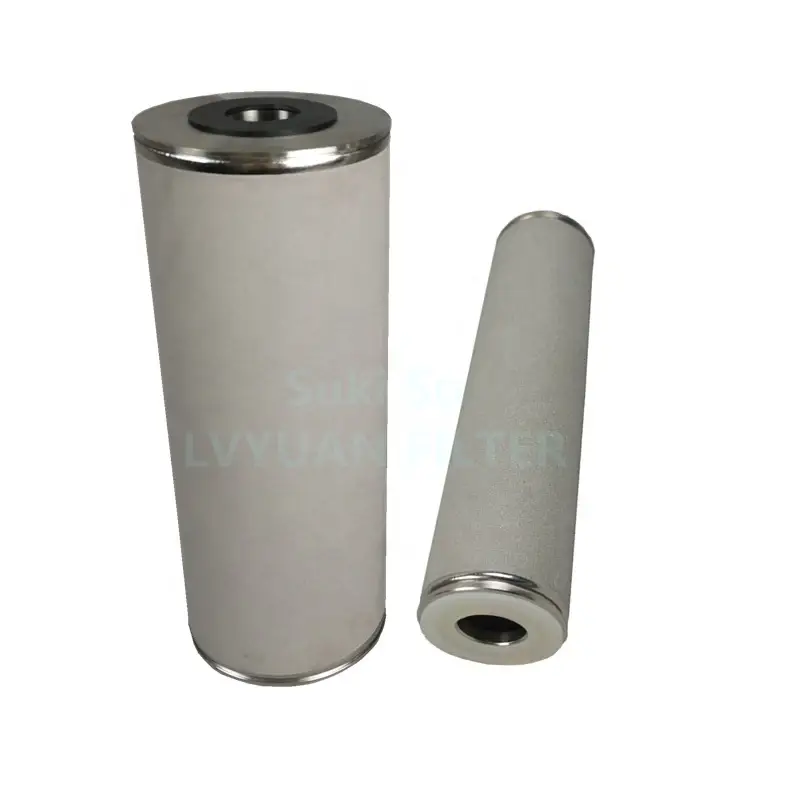

    Porous Titanium metal powder filter cartridge is made by titanium metal powder which purity is above 99.6%. Titanium powder is sintered to form a rugged, fixed pore structure, Titanium filter cartridges are made to withstand temperature extremes, high pressures and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance.

    Sintered titanium filter cartridges are produced in a range of configurations (DOE, screw type) and micron ratings to perform in a variety of liquid and gas applications. It supply broad chemical compatibility and is widely used in food & beverage, pharmaceutical and chemical industry, especially for decarbonizing filtration.

    4.5x10 20 inch BB big blue 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element 9
    Specification
    Name
    Sintered titanium filter cartridge
    Filter Media
    Titanium metal powder
    Seal Material
    Silicone
    Construction method
    Welded (no adhesives)
    Filtration rate
    0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
    Length
    5, 10, 20, 30, 40 inch, OEM
    Outer diameter
    50, 60, 70, 80mm
    End cap
    DOE, M20, M30,M36, M42, 215, 222, 226, OEM
    Operating temperature
    ≤300ºC
    Maximum operating pressure
    0.6Mpa

    Pure water flow rate reference table: the initial value of 10''cartridge(P=0.2 MPa, 1cP, 25℃)

    Micron rating
    (um)
    0.2
    0.45
    1
    2
    3
    5
    10
    20
    30
    Flow rate
    (L/H)
    180
    200
    250
    280
    300
    350
    500
    800
    1000
    End Caps
    4.5x10 20 inch BB big blue 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element 11
    4.5x10 20 inch BB big blue 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element 13
    Features

    1. High purity of sintered titanium powder – Offers high corrosion resistance.
    2. Cleanable and Backwashable – Allows for re-use – Maximum economy.
    3. High Temperature Sintering – No media migration.
    4. Various gasket, O-Ring materials and configurations – Suitable for most systems.

    Applications

    1. Corrosive liquids and gases
    2. Cryogenic fluids
    3. High viscosity solutions
    4. Process steam
    5. High temperature liquids and gases
    6. Catalyst recovery
    7. Decarbonizing filtration
    8. solvent filtration

    Certifications
    4.5x10 20 inch BB big blue 0.45 1 5 25 um Porous Sintered titanium water filter cartridge for Backwash filters element 15
