factory Direct stainless bag filter with good price for industry
1. The test of Lvyuan Filter includes several aspects. Such things as working blanks, components and raw materials will all be seriously measured. It offers excellent filtration and good thermal stability
2. By removing human error from the production process, the product helps eliminate unnecessary waste. This will directly contribute to savings on production costs. All its elements are made with FDA compliant material for food and beverage contact
3. The product promises high quality and long service life. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency

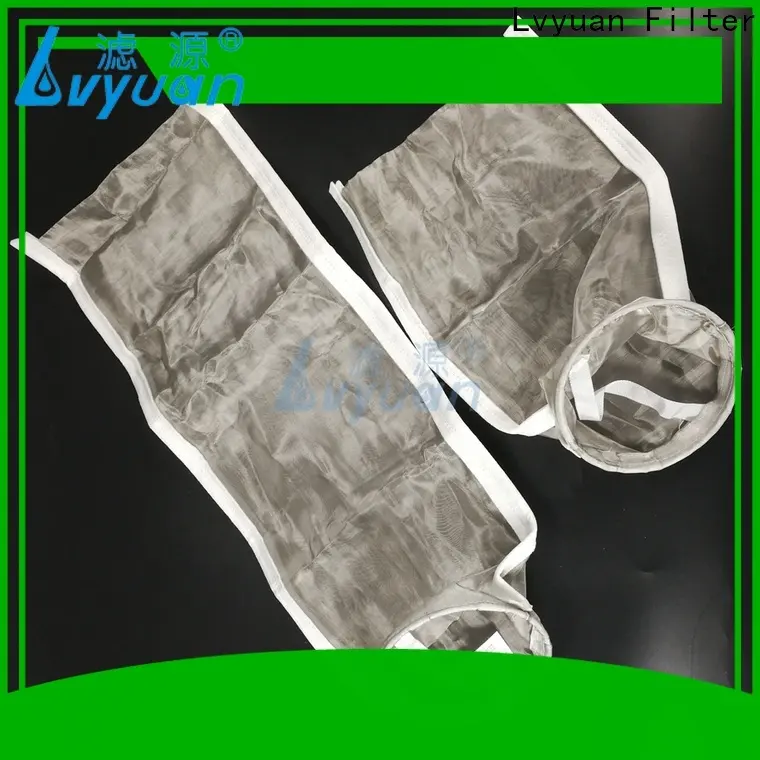

Customized NO. # 1 2 3 4 5 SS Stainless Steel Mesh Filter Bag with 50 100 150 200 300 um micron
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley
OEM Wall-mounted pneumatic stainless steel bag filter system
Product name: | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Filter Bag Material and Specification:
Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..
Type | Flow rate (m³/H) | Filtration Area (㎡) | Size (DiameterxLength) |
#1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
#2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
#3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
#4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
#5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |
Stainless Steel Bag Filter Housing with all accessories
1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents
BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing
BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing
BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing
BFH-04 Muti-bags Stainless Steel Bag Filter Housing
Custom-made Small flow rate Stainless Steel single Bag Filter Housing
Custom-made Stainless Steel Single Bag Filer Housing
Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.
Single Bag filter housing Series, including Model BFL, BFH and BFC.
Multi bags filter housing, Model BFM multi-bag filter housing series:
Company Features
1. Our staff is acknowledged professionals in this industry. Bearing a high level of clarity and understanding, they have the ability to identify practical product designs to customers' challenges.
2. Our environmental and social performance is important to our business success. We are working hard to reduce waste, minimize resource consumption and carbon emissions in our manufacturing processes, whilst improving the energy-saving capabilities of our products during their life cycle.
