This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan activated charcoal water filter supply for sea water
Polypropylene material water string candle filter 40 inch 5 micron pp yarn filter for 10/20/30/40/50/60 inch SS filter housing
Product Description
Water string candle filter
Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.
Product name | Polypropylene material water string candle filter 40 inch 5 micron pp yarn filter for 10/20/30/40/50/60 inch SS filter housing | ||||
Material | Polypropylene fiber , Absorbent cotton , Glass fiber | ||||
Precision | 1-100 micron | ||||
Outer diameter | 28mm-30mm/OEM | ||||
Inner diameter | 60mm-63mm /115mm /OEM | ||||
Length | 9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM | ||||
Connector | DOE/215/222/226/Fin/OEM | ||||
PP with PP core : 60 °C | |||||
PP with SS core : 100 °C | |||||
Cotton with SS core : 120 °C | |||||
Glass fiber with SS core : 180 °C -- 300 °C | |||||
Detailed Images

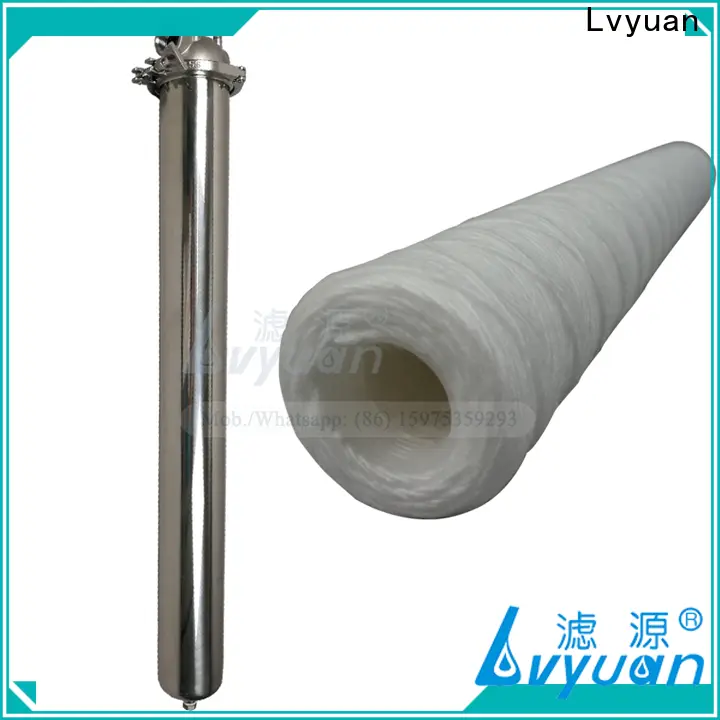

String wound PP sediment Filter with OEM size
Jumbo PP yarn string wound water filter
Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.
The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.
Fiberglass wire wound filter cartridge
The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.
Absorbent cotton string wound filter
Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L
Polypropylene string wound PP yarn filter
Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.
Application
RO SEA WATER TREATMENT
POWER PLANT
BIOLOGY TECHNOLOGY
PETROCHMICAL INDUSTRY
BOTTLED MINERAL WATER
BEER & BEVERAGE FILTRATION
Packing & Delivery
Our Company
Certifications
Let's Make Custom Water Filter Cartridge For You Now.
For manufacturers, this product brings immeasurable economic benefits because it helps to increase output rates and reduce labor costs. It comes with a wide range of lengths for standard and full-flow housings.
Years of use of this product will definitely help manufacturers cut costs in energy, as well as reduce their carbon footprint of all production activities. It comes with a wide range of lengths for standard and full-flow housings.
