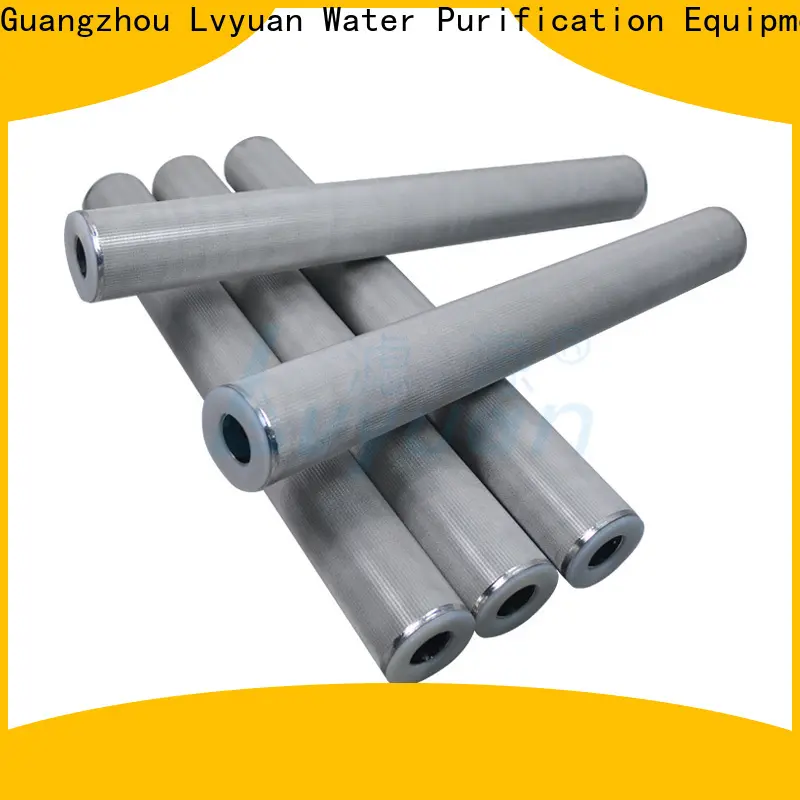

activated carbon sintered metal filter manufacturer for food and beverage1
1. Lvyuan ss sintered filter cartridge is designed & manufactured by using top-quality material and advanced tools & equipment in conformity with the industry standards. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
2. One of our buyers said that this product makes my building become more energy-efficient. It will help save my energy costs in the long term. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
3. The product guarantees high safety and security. It will not have spontaneous combustion or burn when it is squeezed or impacted. The inner support layer is closely connected to the filter material, making it of strong impact resistance
4. This product is easy and safe to install. During the assembly stage, all its electric parts are finely housed inside to prevent any potential contact danger. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
5. It has good chemical stability. It is not prone to have a reaction with light, heat, acid, alkali, and organic solvents. It does not secrete dissoluble material during operation
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.
◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Known as globally famous manufacturer, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. primarily deals with sintered metal filter . The standard nature of these processes permits us to fabricate ss sintered filter cartridge .
2. Always aim high in quality of sintered ss filter .
3. Strict tests have been conducted for sintered carbon water filter . The most professional manufacturer for sintered metal filters suppliers is Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s endless pursuit. Get info!
