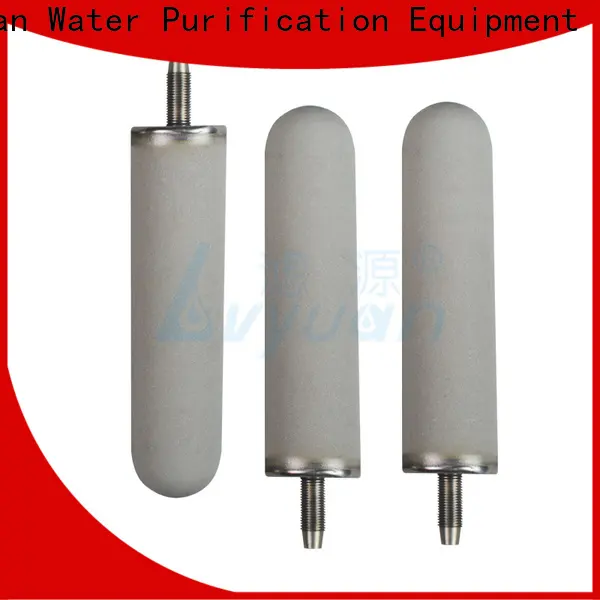

activated carbon sintered metal filter manufacturer for industry
1. Lvyuan sintered metal filter is manufactured by using the best of raw materials, technology, equipment and personnel across the group. The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. This kind of product can easily accomplish the arduous work that people can't do. This will undoubtedly increase productivity and ease the pressure on workers. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. Its quality is secured under our excellent technical resources and human resources. It is resistant to putridity, acid and alkali, organic or inorganic solvent.
4. Every product undergoes a strict control process to ensure the best quality. It has a large effective filter area
Product Feature
◪ Uniform structure, narrow pore size distribution, and high separation efficiency.
◪ High porosity, the resistance of filtration less, and the penetration efficiency is high.
◪ High temperature resistant, it can be normally used below in 280 degree.
◪ Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.
◪ Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Strong antimicrobial ability, no microbes.
◪ The finished-products technology is good, the overlength of overall length can be reached to 1000mm.
◪ It can be on-line regeneration, easy to clean, and long service life.
◪ No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm） |
| Diameter | Ø22, 30, 50, 60, 70, 80, 100, 120mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Titanium |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, 215, 222, 226, M20, M30, M42 or as request. |
| Sealing material | Silicone, NBR, EPDM, Fluoro rubber, etc |
| Performance | |
| Removal rate | 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um |
| Porosity | 28-50% |
| Temperature Tolerance | ≦ 300℃ wet |
| Permeability | 0.02-20L/cm2 min Pa |
| Maximum Operating Pressure differential | 6.0 bar |
| Flow rate (L/H) | 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600 |
◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)
| Micron rate (μm) | 0.2 | 0.45 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
| Flow rate (L/H) | 180 | 200 | 250 | 280 | 300 | 350 | 500 | 800 | 1000 |
Product Details
Product Applications
Company Features
1. Owing to the development of strict management system, Lvyuan has made great progress in sintered metal filter industry.
2. Our products sell amazingly well in overseas markets, and this directly contributes to our company's annual income. This shows that we have a presence in the international market.
3. We can't emphasize more that the eternal tenet of the Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is sintered metal filter elements . Please contact.
