activated cartridge manufacture
1. Our raw material for is of high quality and has no any strange smell during use. It does not secrete dissoluble material during operation
2. The product is exceptional in terms of durability and requires the least maintenance. The self-supporting fiber matrix enables a coreless design that is both economical and strong
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s strategy is based on the technologies to provide the best solution to customers. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

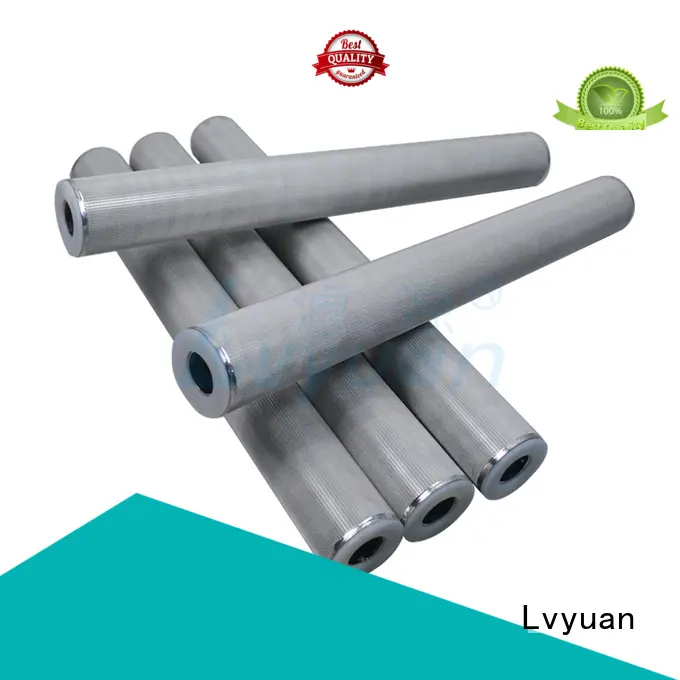

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1.Plain cylindrical design SS wiremesh filter cartridge.
2.Pleated configuration design SS folded mesh filter cartridge.
3.Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is increasing its capacity to meet up with larger needs for from our customers.
2. In order to become one of the most influential companies, Lvyuan has been committed to producing with high quality.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will improve the customer service system to offer the best service.
