Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: Turkey, none

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: as request

Weight:: depends on actual product

Size:: customization

Power:: 0

Warranty:: Unavailable

Name:: titanium water filter

Micron Rate:: 0.1, 0.22, 0.45 1 to 60 micron

Length:: 5", 10", 20", 30", 40", OEM

Diameter:: 50, 60, 70, 80, 100mm

Connection type:: DOE,SOE, Screw type, 222, 226

Usage:: Liquid Filtration

Raw Material:: Pure titanium 99.6%

Way of wash:: Back washing

Certification:: SGS, ISO9001

Filter housing:: available for option

Packaging & Delivery

Selling Units:: Single item

Single package size:: 109X15X15 cm

Single gross weight:: 4.000 kg

Package Type:: DOE/Thread/Clamp/222/226 connection Sinter Porous Titanium Rod Water Filter for cartridge element 10/20/30/40 inch Packaging size: Single Packaging 1pc/Box Best unit price and shipping cost are subject to quantity changes. Please feel free to send inquiry for the best quotation.

Lead Time :

Quantity(Pieces)	1 - 2	>2
Est. Time(days)	15	To be negotiated

Product Description

DOE/Thread/Clamp/222/226 connection Sinter Porous Titanium Rod Water Filter for cartridge element 10/20/30/40 inch

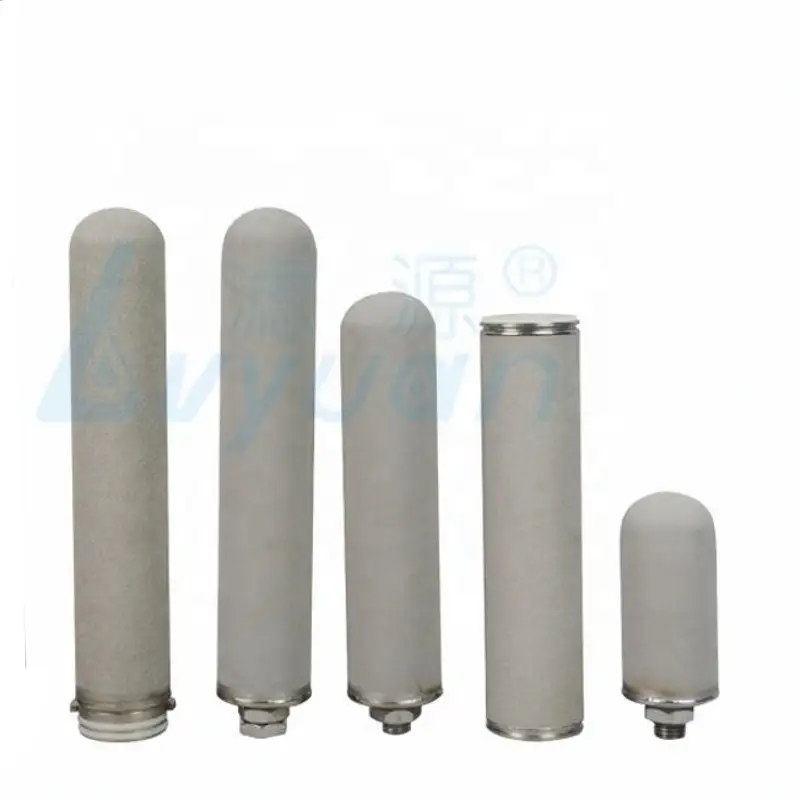

Porous Titanium metal powder filter cartridge is made by titanium metal powder which purity is above 99.6%. Titanium powder is sintered to form a rugged, fixed pore structure, Titanium filter cartridges are made to withstand temperature extremes, high pressures and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance.

Sintered titanium filter cartridges are produced in a range of configurations (DOE, screw type) and micron ratings to perform in a variety of liquid and gas applications. It supply broad chemical compatibility and is widely used in food & beverage, pharmaceutical and chemical industry, especially for decarbonizing filtration.

Specification

Name	Sintered titanium filter cartridge
Filter Media	Titanium metal powder
Seal Material	Silicone
Construction method	Welded (no adhesives)
Filtration rate	0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
Length	5, 10, 20, 30, 40 inch, OEM
Outer diameter	50, 60, 70, 80mm
End cap	DOE, M20, M30,M36, M42, 215, 222, 226, OEM
Operating temperature	≤300ºC
Maximum operating pressure	0.6Mpa

Pure water flow rate reference table: the initial value of 10''cartridge(P=0.2 MPa, 1cP, 25℃)

Micron rating (um)	0.2	0.45	1	2	3	5	10	20	30
Flow rate (L/H)	180	200	250	280	300	350	500	800	1000

End Caps

DOE/Thread/Clamp/222/226 connection Sinter Porous Titanium Rod Water Filter for cartridge element 10/20/30/40 inch 11

DOE/Thread/Clamp/222/226 connection Sinter Porous Titanium Rod Water Filter for cartridge element 10/20/30/40 inch 13

Features

1. High purity of sintered titanium powder – Offers high corrosion resistance.
2. Cleanable and Backwashable – Allows for re-use – Maximum economy.
3. High Temperature Sintering – No media migration.
4. Various gasket, O-Ring materials and configurations – Suitable for most systems.

Applications

1. Corrosive liquids and gases
2. Cryogenic fluids
3. High viscosity solutions
4. Process steam
5. High temperature liquids and gases
6. Catalyst recovery
7. Decarbonizing filtration
8. solvent filtration
