efficient hi flow water filter replacement for industry
1. There is an overseeing quality division to monitor aspects of product quality of Lvyuan hi flow inline water filter . This division adopts statistical methods, probabilistic computing method and other ways to ensure its quality stability.
2. The product, as it is manufactured by ourselves, is assured to meet international quality standards.
3. The product, with so many good characteristics, can be used in wide applications.

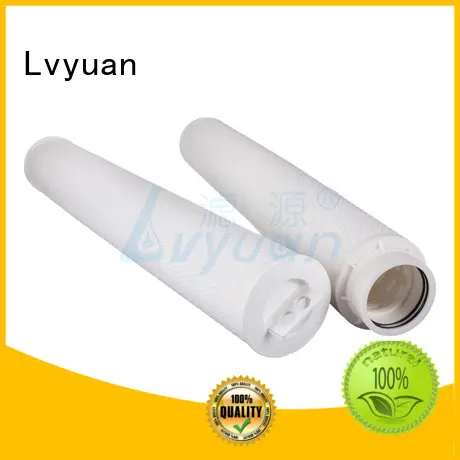

The LY-HFPK filter cartridge series is a replacement cartridge for the depth filtration and 2-1/2'' diameter cartridges for the high flow applications. Pre-filtration for RO system is an example. The Lvyuan filter pleated design with high flow area and contamination removal capacity.
Product Feature
◪ High dirt-holding capacity and long service life.
◪ All contaminants can be removed within the cartridges because of the flow direction
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration
◪ Max. 50% reduction of filter system
◪ Multi membrane layers for large dirt holding
◪ The sealing of o-ring assures the filtration integrity
◪ Handle design quick installation, safe and reduce the cost
Product Parameter
| Product Name | HFPK Series high flow pleated cartridge filter replacement filter elelment(LY-HFPK) |
| Filter media | PP/Polypropylene membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6”(152mm) |
| Length | 20”, 40”, 60”, Customized |
| Max.operating temperature | 82℃(Pleated PP) |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
★ 100% pure polypropylene PP materials for wide chemical compatibility, reduce the filter elements quantities to large water flow rate.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Company Features
1. After years of efforts, Lvyuan is known as a professional hi flow water filter manufacturer.
2. We offer specialist education to managers, encourage employees to obtain trade skill qualifications. They are able to provide a wide range of creative proposals for improving production. Such efforts contribute to the stable supply of high-quality products.
3. We always provide better service for every customer with hi flow inline water filter . Ask! We are committed to social responsibility in the communities we operate, focusing on reducing carbon footprint, providing time and financial support to the communities in which we live and work, and helping customers become more sustainable.
