Factory OEM Porous 10 20 30 40 Inch Sintered Power Candle titanium water filter cartridges

Product Description

226/Fin code 7 adaptor Sinter titanium Rod filter cartridge for Ti Filter Candle Element

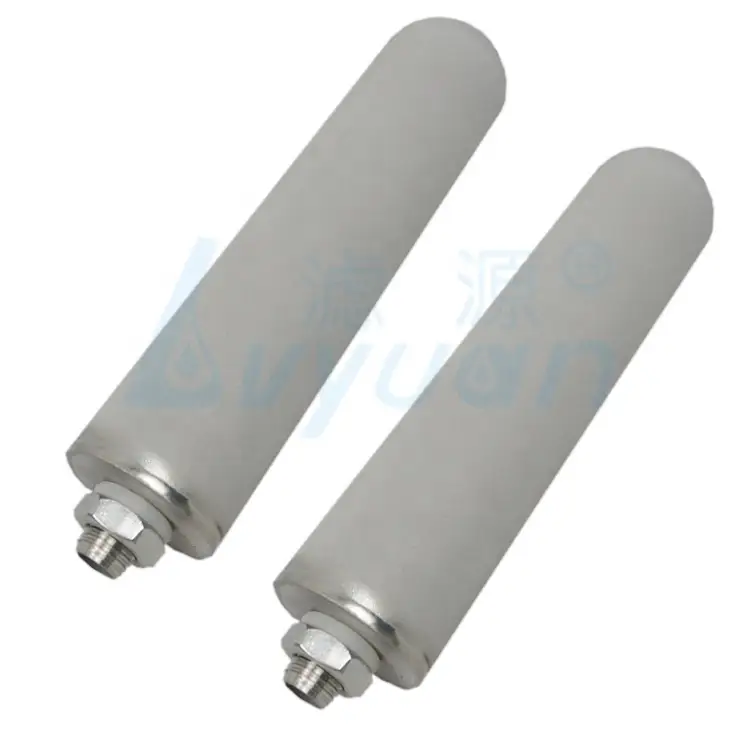

Porous Titanium metal powder filter cartridge is made by titanium metal powder which purity is above 99.6%. Titanium powder is sintered to form a rugged, fixed pore structure, Titanium filter cartridges are made to withstand temperature extremes, high pressures and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance.

Sintered titanium filter cartridges are produced in a range of configurations (DOE, screw type) and micron ratings to perform in a variety of liquid and gas applications. It supply broad chemical compatibility and is widely used in food & beverage, pharmaceutical and chemical industry, especially for decarbonizing filtration.

Specification

Name	Sintered titanium filter cartridge
Filter Media	Titanium metal powder
Seal Material	Silicone
Construction method	Welded (no adhesives)
Filtration rate	0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
Length	5, 10, 20, 30, 40 inch, OEM
Outer diameter	50, 60, 70, 80mm
End cap	DOE, M20, M30,M36, M42, 215, 222, 226, OEM
Operating temperature	≤300ºC
Maximum operating pressure	0.6Mpa

Pure water flow rate reference table: the initial value of 10''cartridge(P=0.2 MPa, 1cP, 25℃)

Micron rating (um)	0.2	0.45	1	2	3	5	10	20	30
Flow rate (L/H)	180	200	250	280	300	350	500	800	1000

End Caps

Features

1. High purity of sintered titanium powder – Offers high corrosion resistance.
2. Cleanable and Backwashable – Allows for re-use – Maximum economy.
3. High Temperature Sintering – No media migration.
4. Various gasket, O-Ring materials and configurations – Suitable for most systems.

Applications

1. Corrosive liquids and gases
2. Cryogenic fluids
3. High viscosity solutions
4. Process steam
5. High temperature liquids and gases
6. Catalyst recovery
7. Decarbonizing filtration
8. solvent filtration

Certifications

Our Company

The use of this high-tech product reduces the number of unskilled workers needed in the production process. Besides, it also raises productivity. It contains no binders, agents, solvents, antistatic materials or wetting agents. The product helps contribute to making a safer workplace. It makes the job easier and significantly improve overall production efficiency. It contains no binders, agents, solvents, antistatic materials or wetting agents.
