Company Advantages1. Lvyuan pleated type filter is constructed from superior materials with modern technology. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
2. Be in the light of the principle of 'the quality first' , Guangzhou Lvyuan Water Purification Equipment Co., Ltd. builds up a strict quality management system. The star-shaped ring seal makes the
filter element easy to disassemble and maintain
3. Its service life is highly guaranteed by the strict test procedure. It is manufactured from 100% Polypropylene construction

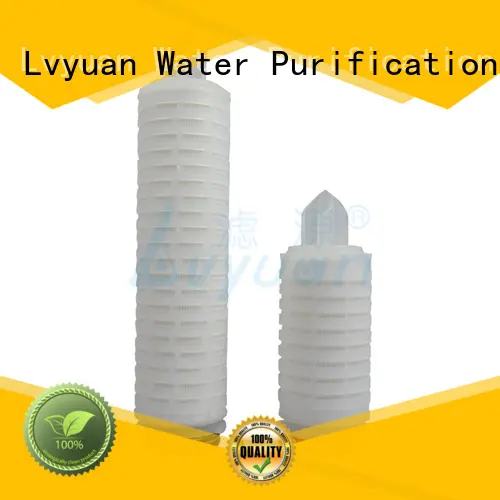

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination. This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
Filter media | PP/Polypropylene |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/NBR/Viton/Teflon |
Outer diameter | 2.7” , customized |
Length | 9.75” 10” 20” 30” 40” customized |
End cap | DOE,215,222,226,FIN,FLAT,Stainless steel,or customized. |
Filtration area | 0.4-0.7m² (10”) |
Max.operating temperature | 88℃ |
Micron rating(μm) | 0.1,0.2,0.45,0.65,1,2,3,5,10,20,25,30,50,60 |
Product Details
part.1
Polypropylene end caps are thermally bonded to the media packs eliminating any need for adhesives which might react with or contaminate critical process fluids. Strong and no any pollution.
part.2
High efficiency 100% all polypropylene cartridges with hard polypropylene support inner core and outer core. We provide customized sizes to meet different customers’ required.
part.3
Different end caps to fits any filter housing and filtration industry, 100% all pure polypropylene pleated material without any organic binder.
part.4
DOE 20 inch PP material pleated filter cartridge with EPDM gasket, graded-porosity multi-layer.
Product Applications
Reverse osmosis water system prefiltration
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Company Features1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. now has become a brand of its own in pleated filter manufacturers field.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. boasts its solid technical foundation.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. aims to structure pleated type filter as its service principle. Please contact.
