Guangzhou Factory Automatic 5 Gallon Bottle Washing Filling Capping Reverse Osmosis Pure Water Vending Machine
Guangzhou Factory Automatic 5 Gallon Bottle Washing Filling Capping Reverse Osmosis Pure Water Vending Machine

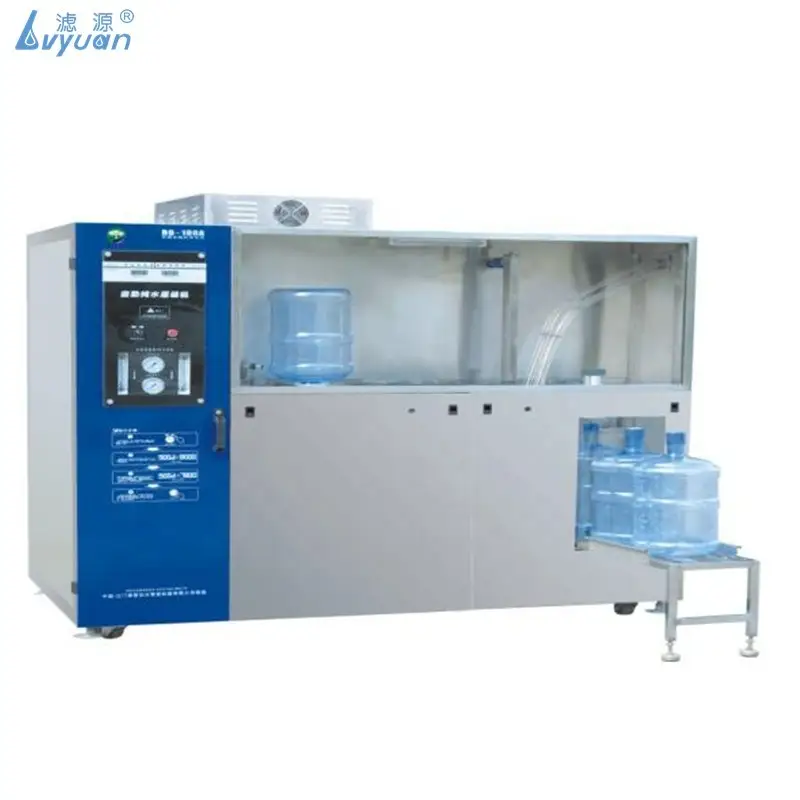

Integrative ro drinking water bottle filling vending machine Introduction:
This RO Pure water filling machine for 5 gallon bottle with RO water purification system, it's also integrated functions of automatic bottle washing, filling, capping etc.
RO water vending machine, pure water capacity: 1300-3000GPD (200~500LPH), 10-30 bottles per hour. (5G=18.9L per bottle)
Integrative ro drinking water bottle filling vending machine Features:
1. Luxury stainless steel waterproof cabinet, safe and easy for installation and maintenance.
2. Advanced reverse osmosis purification technology, 7/8/9 stages (option) of effective water filtration, output water quality meets national standard.
3.Automatic bottle washing, filling, capping, etc. Intelligent control system, easy to complete bottled water production.
4. 24 hours UV sterilization to avoid secondary pollution.
5. Efficient ozone generation and mixing technology, filling water with a normal ozone levels meet the national standards.
6. Powerful pre-processing, automatic backwash features, full automatically (option).
7. Can be customized according to customer's request.
Integrative ro drinking water bottle filling vending machine flowchart:
Integrative automatic ro drinking water bottle filling machine specifications:
| Product name | automatic ro water bottle filling and vending machine |
| Working capacity | 1300GPD, 1900GPD, 2500GPD, 3000GPD |
| Pure water capacity | 200L/H, 300L/H, 400L/H, 500L/H |
| Filling flow rate | 10 to 30 B/H, 5 Gallon (18.9L) per bottle |
| Rated current | 8.2A, 11.5A, 13.3 A, 16.5A |
| Rated Power | 1.8KW, 2.53KW, 2.93KW, 3.63KW |
| Voltage | 380V/220V/110V, 50/60Hz |
| Filtration stages | Feed pump-Quartz Sand filter-Carbon filter-10u PP filter-5u PP filter-RO HP pump-RO membrance-Post carbon-Mineralization-UV-Ozone. |
| UV water Sterilzer | 16W |
| Ozone generator | 3 to 12 g/H |
| Water tank | 220L |
| Air pressure | 0.6--0.7MPa ( you need to outside connect the air pressure compressor ) |
| Water Source | Municipal Tap water |
| Machine dimension | W 1950 × D 1014 × H 1690 mm |
| Application places | Residential area, School, factory, group, station, airport etc, meet self-made bottle pure water need |
Customization services are available. Please kindly advise the raw water, flow rate, usage, and local power supply.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
