Enterprise Strength
-
Lvyuan Water Purification Equipment abides by the service attitude to be sincere, patient and efficient. We always focus on customers to provide professional and comprehensive services.
Product Comparison
cartridge filter manufacturer, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.Compared with other products in the same category, cartridge filter manufacturer has outstanding advantages which are mainly reflected in the following points.
Company Advantages1. The manufacture of Lvyuan high flow under sink water filter generally includes the following stages. They are mainly CAD/CAM design, procurement of raw materials, fabrication, welding, spraying, commissioning, and measurement.
2. The product can be used for a long time. Its mechanical components are sturdy enough to wear over time and require little maintenance within its service life.
3. The product can last for a long time. With its full-shield design, it provides a better way to avoid the leakage problem and prevents its components from damage.
4. In Guangzhou Lvyuan Water Purification Equipment Co., Ltd. customers can send us your outside cartons design for our customization.

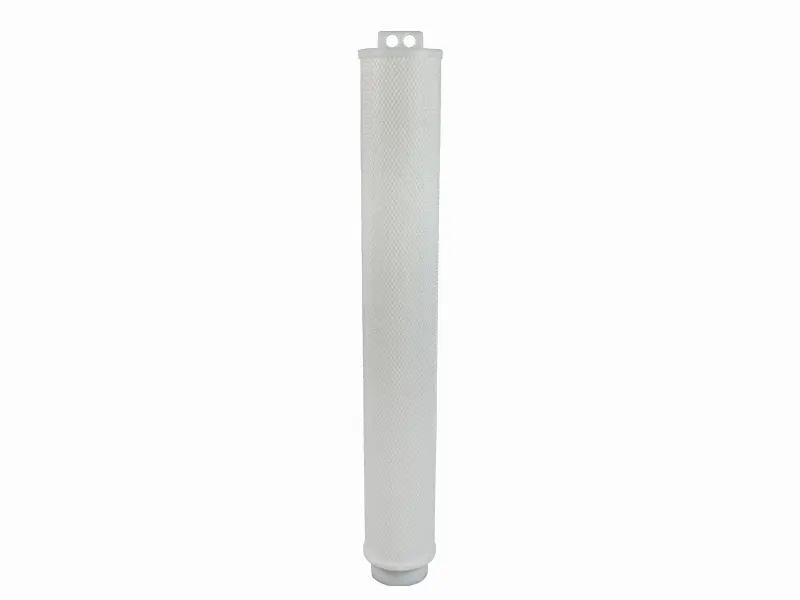

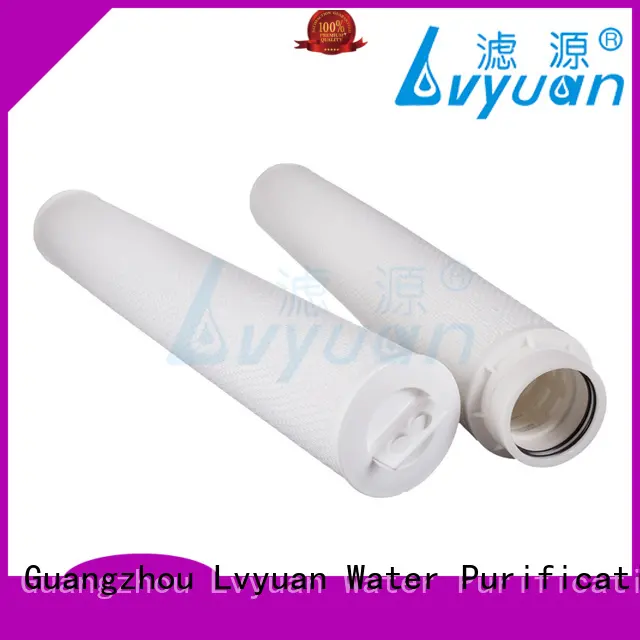

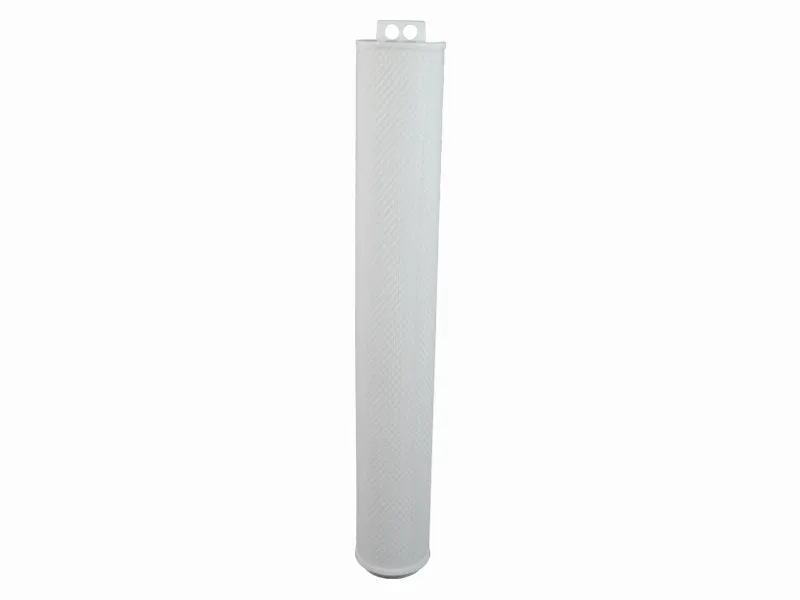

The LY-HFPK filter cartridge series is a replacement cartridge for the depth filtration and 2-1/2'' diameter cartridges for the high flow applications. Pre-filtration for RO system is an example. The Lvyuan filter pleated design with high flow area and contamination removal capacity.
This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40'' long, 2-1/2'' diameter filter cartridges. Inner O-ring insures no by passing and handle design makes the installation easier.
Product Feature
◪ High dirt-holding capacity and long service life.
◪ All contaminants can be removed within the cartridges because of the flow direction
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration
◪ Max. 50% reduction of filter system
◪ Multi membrane layers for large dirt holding

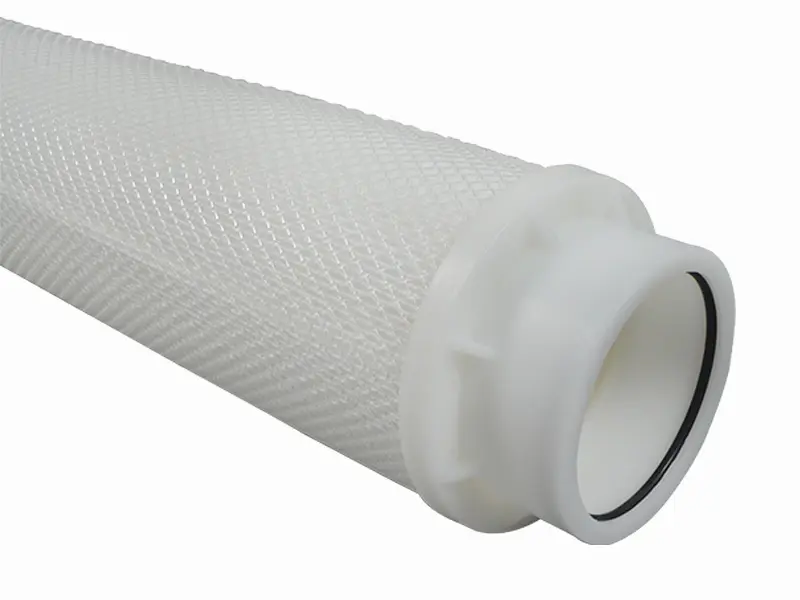

◪ The sealing of o-ring assures the filtration integrity
◪ Handle design quick installation, safe and reduce the cost
Product Parameter
Product Name | HFPK Series high flow pleated cartridge filter replacement filter elelment(LY-HFPK) |
Filter media | PP/Polypropylene membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR |
Outer diameter | 6”(152mm) |
Length | 20”, 40”, 60”, Customized |
Max.operating temperature | 82℃(Pleated PP) |
Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
part.1
★ 100% pure polypropylene PP materials for wide chemical compatibility, reduce the filter elements quantities to large water flow rate.
part.2
★ Thermally bonded polypropylene and support media prevent particle leaking out, the large water flow rate is in one high flow filter element, super cost efficiency in the pre-treatment process of RO water plant.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Condensate water filtration, hot water recovery in power generation
API, solvents, and water filtration in BioPharm market
The filtration of bottled water, high fructose, edible oil, soft drinks and milk
Paints and coatings, Petrochemical, refineries, CD/DVD, magnetic media, Petrochemical, Refineries
Microelectronics, film, fiber and resin
Company Features1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has won the recognization in the market due to the remarkable competence in developing and manufacturing high flow under sink water filter .
2. We have knowledgeable professional and technical personnel. They can help the company prove the quality and safety of raw materials, parts or products, reduce the risks, and shorten the time to market.
3. Through consciously practicing the guidelines of high flow water filter system , Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has formed unique competitive advantages. Contact! high flow inline water filter is a sign of the Lvyuan Water Purification Equipment brand and it is the goal of Lvyuan Water Purification Equipment . Contact!
